Exterior Lighting
WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

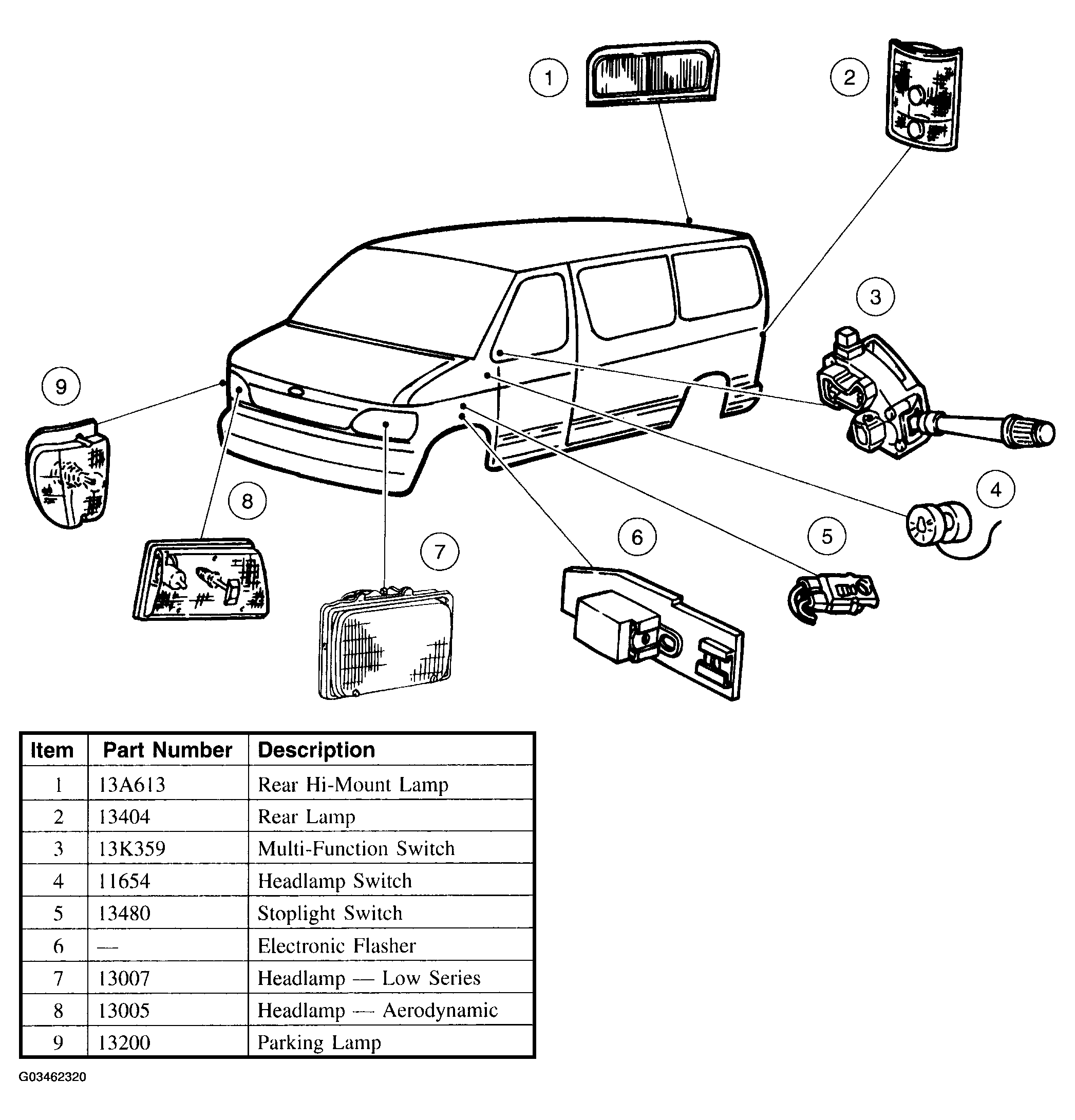

The exterior lighting system consists of:
The headlamp switch (11654) is a three-position switch that controls the headlamps, exterior lamps, and panel lamps. Two different style headlamps are used. Aerodynamic style headlamps which use a halogen bulb, and type 2B rectangular sealed-beam (low series) style headlamps are used.
A multi-function switch (13K359) controls the turn signals, high beams, and hazard lamps. The stoplight switch (13480) controls the brake lamps, and rear hi-mount lamp.
