Instrument Panel: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
NOTE: Verify that the four-way locator on the LH side is correctly seated.
  1. Position the instrument panel on the LH dash locators.

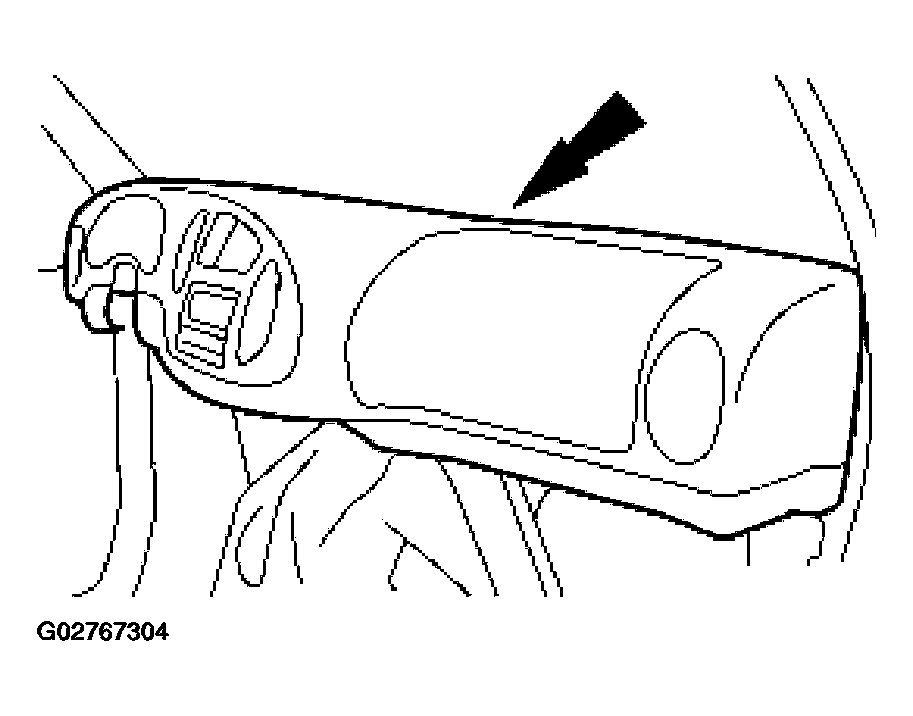

    Fig 1: Identifying Position Instrument Panel On LH Dash Locators
    G02767304Courtesy of FORD MOTOR CO.
  2. Install the LH instrument panel bolts.

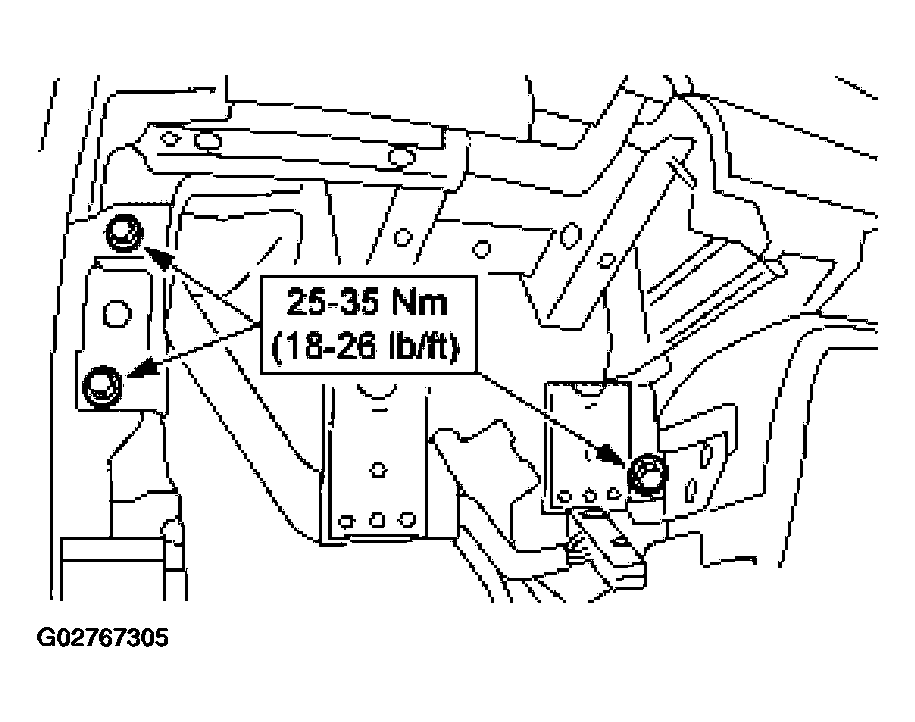

    Fig 2: Installing LH Instrument Panel Bolts
    G02767305Courtesy of FORD MOTOR CO.
  3. Install the RH instrument panel bolts.

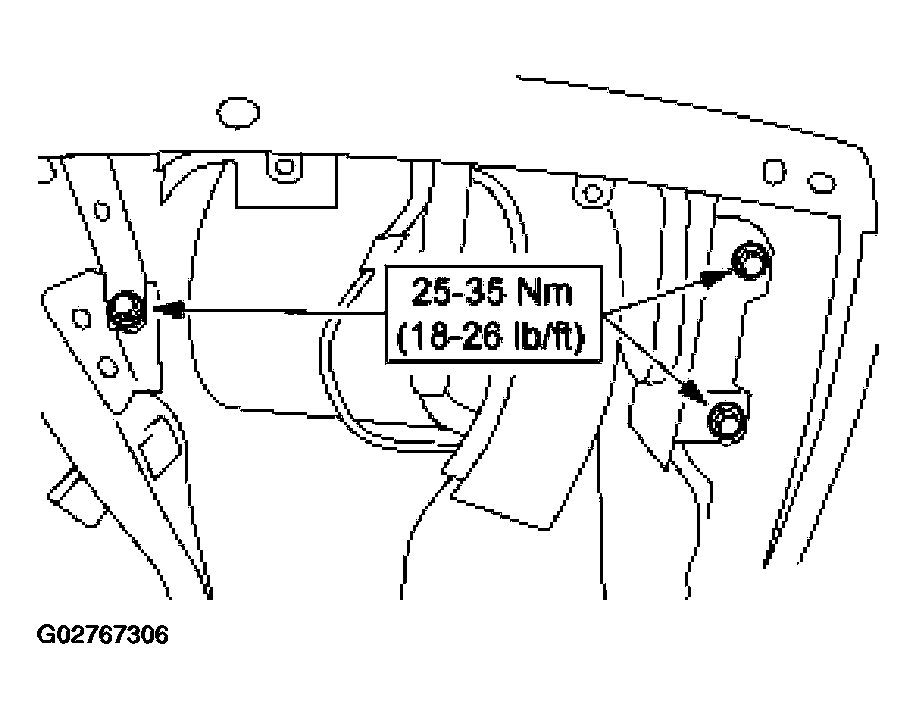

    Fig 3: Installing RH Instrument Panel Bolts
    G02767306Courtesy of FORD MOTOR CO.
  4. Engage the antenna cable locators into the instrument panel and connect it to the radio.
  5. Connect the RH instrument panel cowl side wiring electrical connectors.

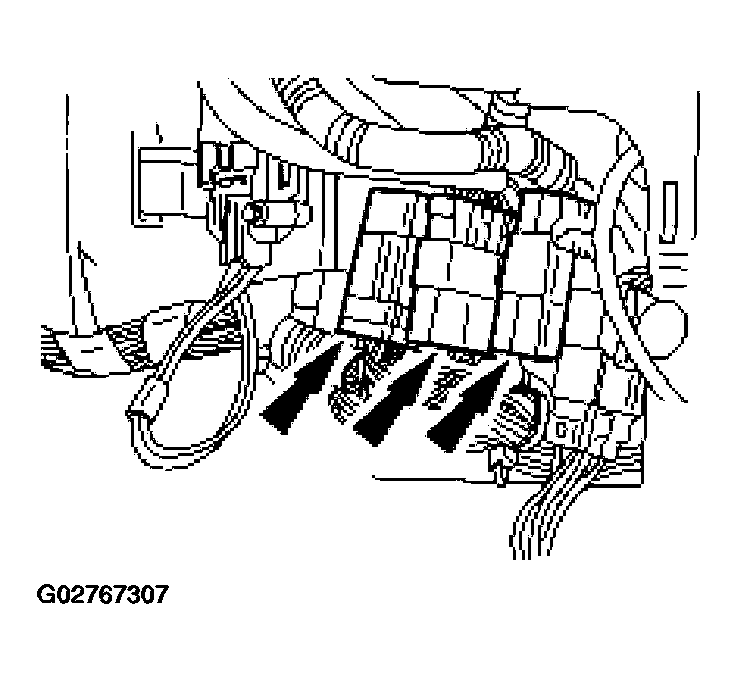

    Fig 4: Connecting RH Instrument Panel Cowl Side Wiring Electrical Connectors
    G02767307Courtesy of FORD MOTOR CO.
  6. Connect the ECS module electrical connector.
    1. Connect the connector.
    2. Install the locking clip.
    Fig 5: Installing Locking Clip
    G02767308Courtesy of FORD MOTOR CO.
  7. Install the RH A-pillar lower trim panel.

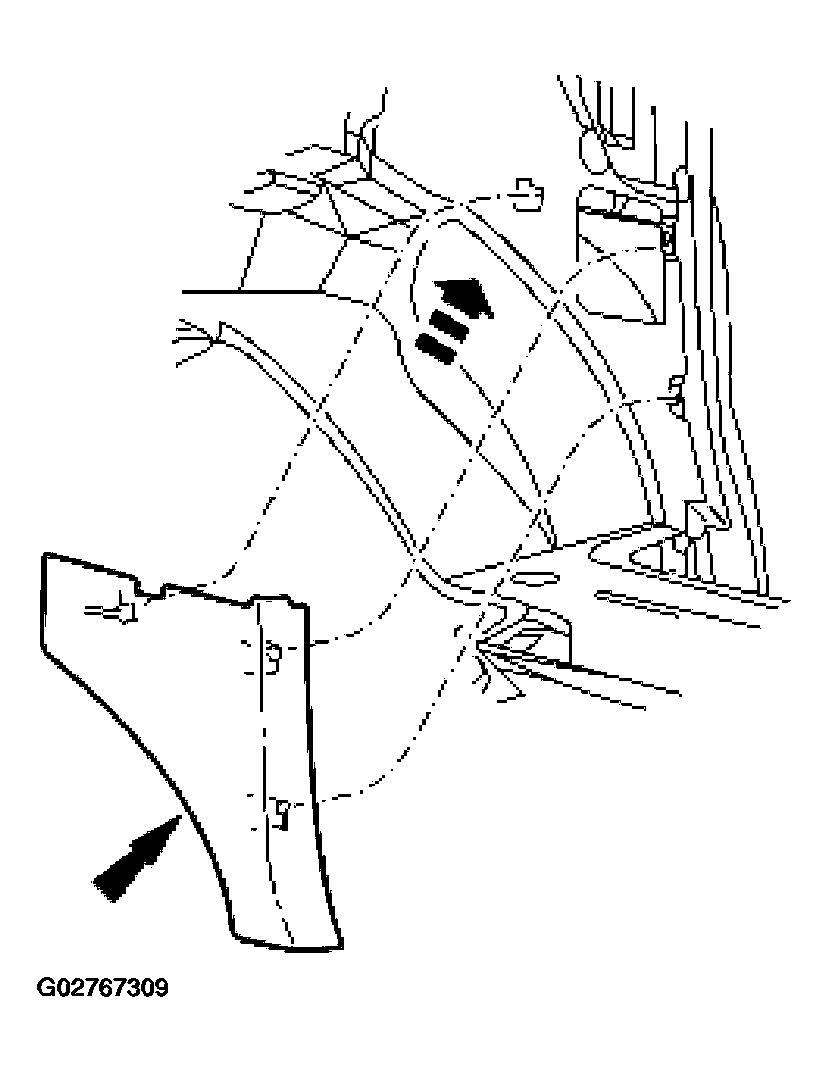

    Fig 6: Installing RH A-Pillar Lower Trim Panel
    G02767309Courtesy of FORD MOTOR CO.
  8. From inside the engine compartment, install the main wiring assembly/lower bulkhead connector.
    1. Position the bulkhead connector.
    2. Secure the clips.
    3. Tighten the bolt.

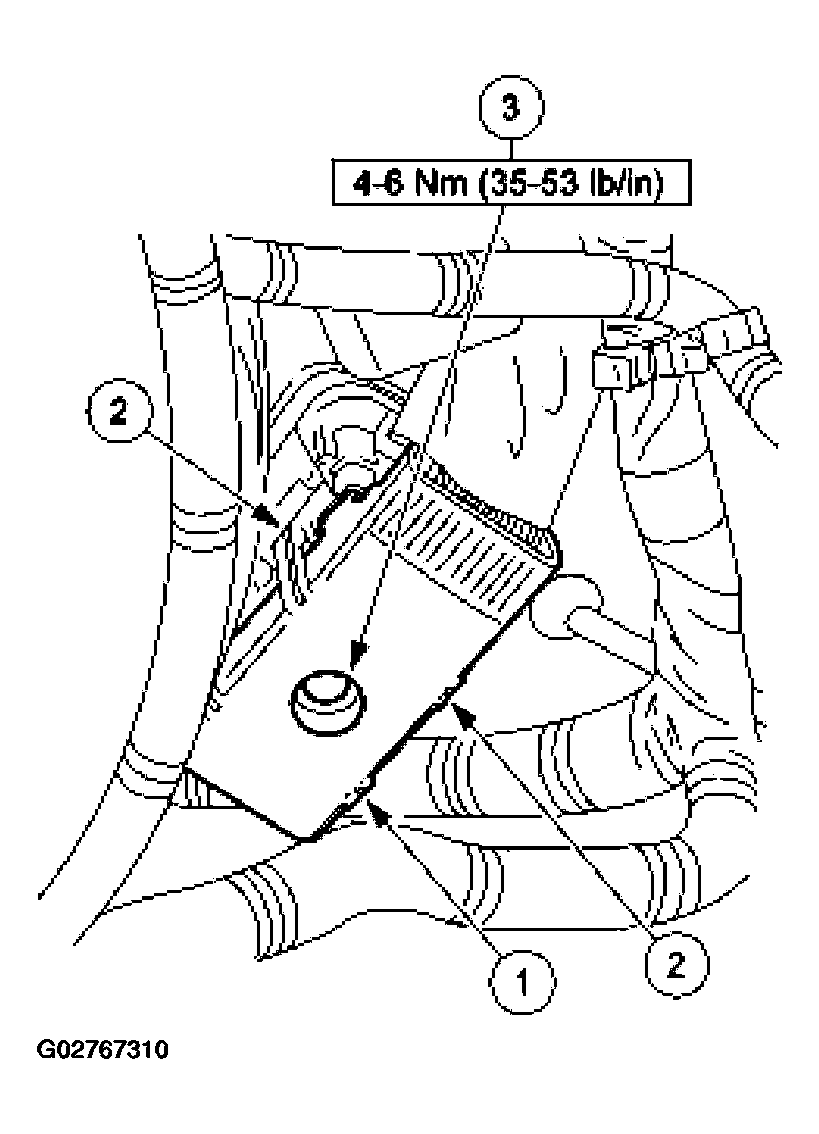

    Fig 7: Installing The Main Wiring Assembly/Lower Bulkhead Connector
    G02767310Courtesy of FORD MOTOR CO.
  9. Install the coolant reservoir.
    1. Position the reservoir.
    2. Install the bolts.

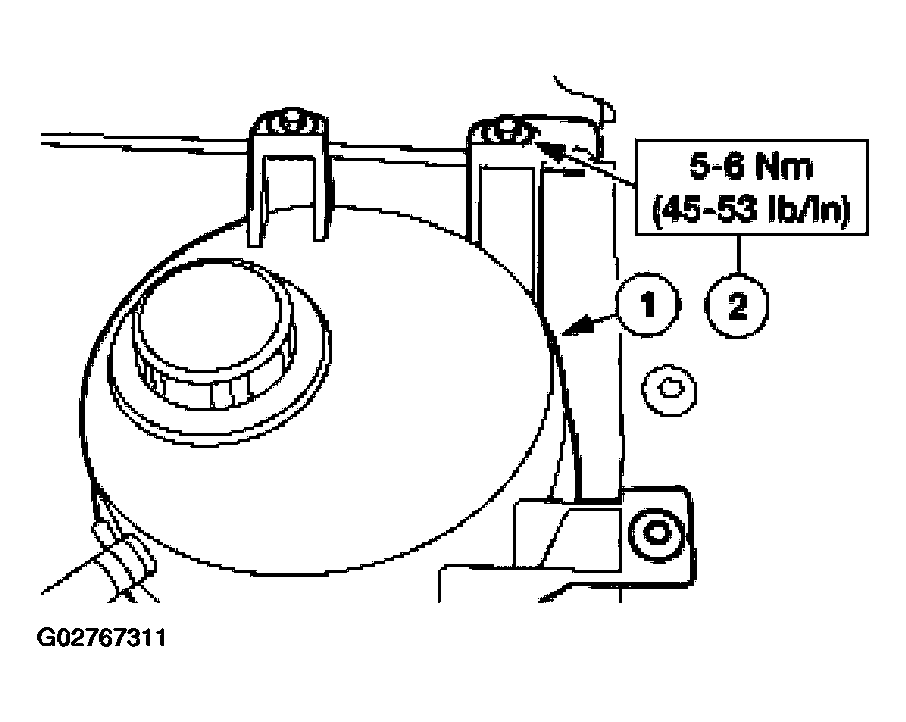

    Fig 8: Installing Coolant Reservoir
    G02767311Courtesy of FORD MOTOR CO.
  10. Install the instrument panel dash brace.
    1. Position the instrument panel dash brace.
    2. Install the six bolts.

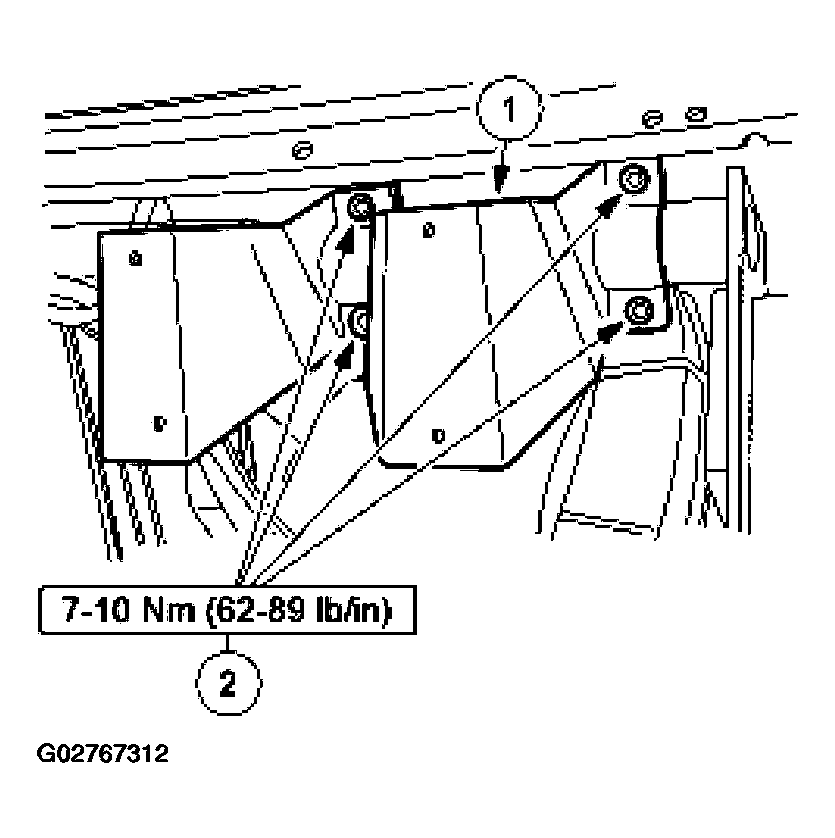

    Fig 9: Installing Instrument Panel Dash Brace
    G02767312Courtesy of FORD MOTOR CO.
  11. Install the instrument panel cowl top nut.
    Fig 10: Installing Instrument Panel Cowl Top Nut
    G02767313Courtesy of FORD MOTOR CO.
  12. Install the LH upper access panel.
    Fig 11: Installing LH Upper Access Panel
    G02767314Courtesy of FORD MOTOR CO.
  13. Connect the climate control vacuum harness connector.
    Fig 12: Connecting Climate Control Vacuum Harness Connector
    G02767315Courtesy of FORD MOTOR CO.
  14. Install the upper center instrument panel access panel.
    Fig 13: Installing Upper Center Instrument Panel Access Panel
    G02767316Courtesy of FORD MOTOR CO.
  15. Install the instrument panel cowl top screws.
    Fig 14: Installing Instrument Panel Cowl Top Screws
    G02767317Courtesy of FORD MOTOR CO.
  16. Install the engine cover.
    • Position the engine cover in the vehicle and fasten the cover latches.

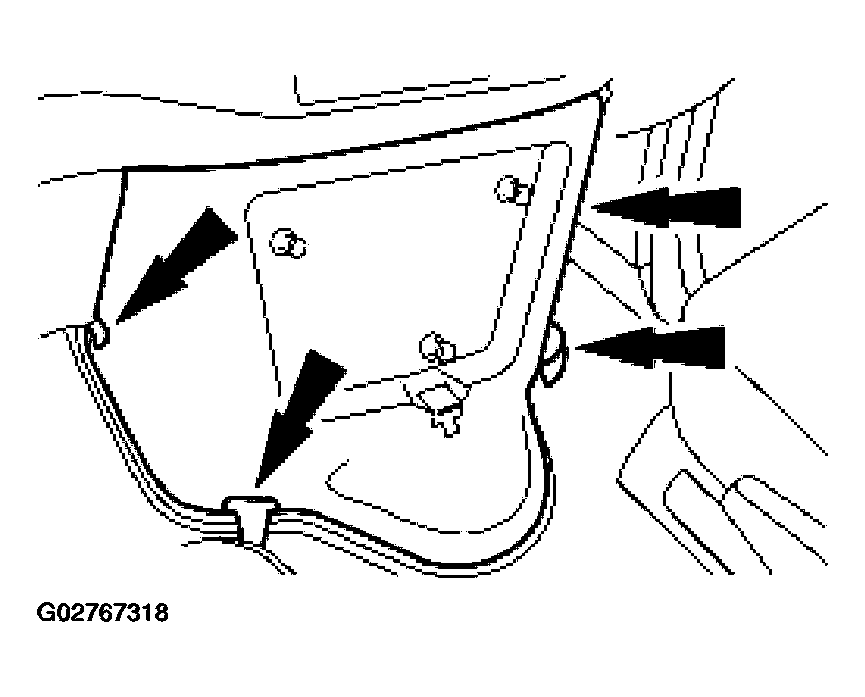

    Fig 15: Installing Engine Cover & Fastening Cover Latches
    G02767318Courtesy of FORD MOTOR CO.
  17. Install the floor console. For additional information, refer to FLOOR CONSOLE .
  18. Install the steering column, For additional information, refer to STEERING COLUMN .
  19. Install the passenger side air bag modules. Refer to AIR BAG RESTRAINT SYSTEMS .
