Oil Pan: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The oil pump screen and pickup tube must be in the oil pan when the oil pan is positioned in the vehicle.
  1. Position the oil pan gasket and the oil pan in the vehicle from the rear of the engine.
  2. CAUTION: Make sure the O-ring is in place and not damaged. A missing or damaged O-ring can cause foam in the lubrication system, low oil pressure and severe engine damage.
    NOTE: Clean and inspect the mating surfaces and install a new O-ring. Lubricate the O-ring with clean engine oil.

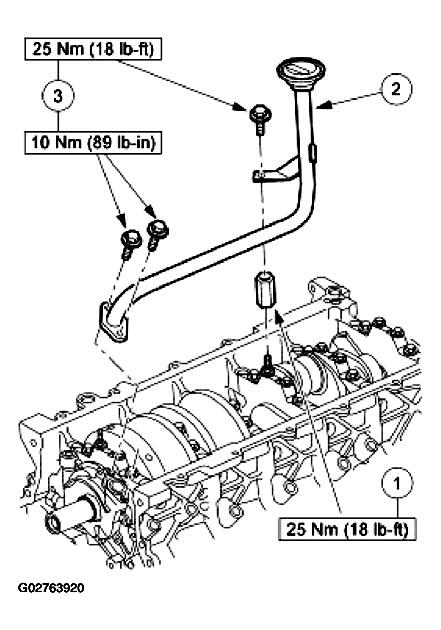

    Fig 1: Installing Oil Pump Screen Cover And Pickup Tube
    G02763920Courtesy of FORD MOTOR CO.
  3. Install the oil pump screen cover and pickup tube.
    1. Install and tighten the spacer.
    2. Insert the oil pump screen pickup tube into the oil pump and position the support bracket over the spacer.
    3. Install and tighten the bolts.
  4. NOTE: If not secure within four minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, follow the directions provided on the packaging of the silicone gasket remover and the metal surface prep. Failure to follow this procedure can cause future oil leakage.

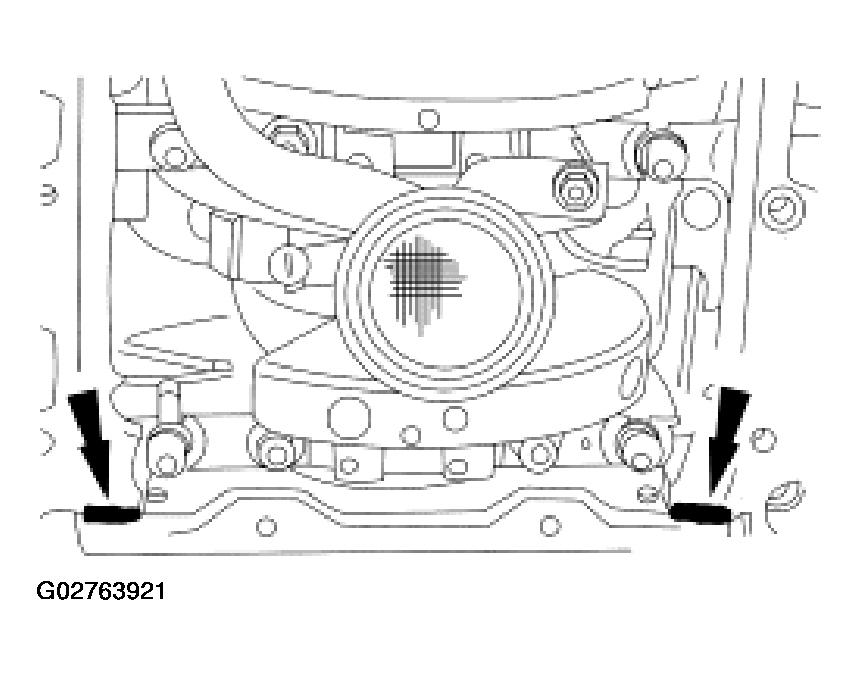

    Fig 2: Applying A Bead Of Silicone Gasket And Sealant At Crankshaft Rear Seal Retainer-To-Cylinder Block Surface
    G02763921Courtesy of FORD MOTOR CO.
  5. Apply a bead of silicone gasket and sealant at the crankshaft rear seal retainer-to-cylinder block surface, at the locations shown.
  6. NOTE: If not secure within four minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, follow the directions provided on the packaging of the silicone gasket remover and the metal surface prep. Failure to follow this procedure can cause future oil leakage.

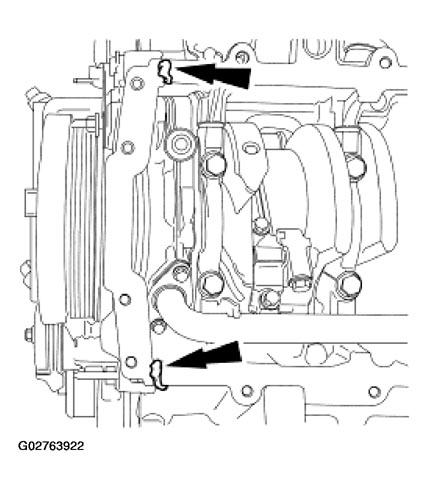

    Fig 3: Applying A Bead Of Silicone Gasket And Sealant At Engine Front Cover-To-Cylinder Block Surface
    G02763922Courtesy of FORD MOTOR CO.
  7. Apply a bead of silicone gasket and sealant at the engine front cover-to-cylinder block surface, at the locations shown.
  8. NOTE: Tighten the bolts in three stages.

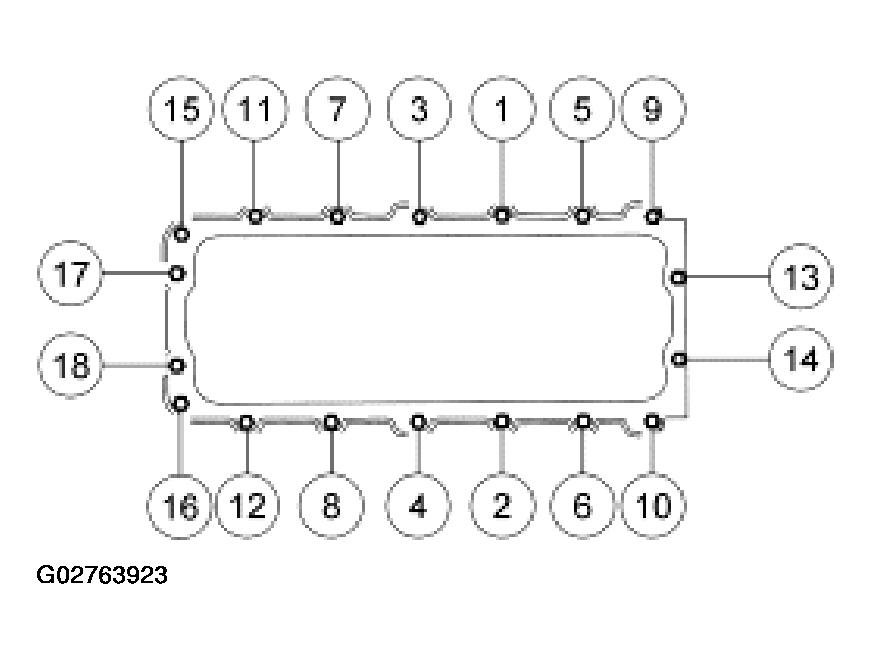

    Fig 4: Oil Pan Bolt Tightening Sequence
    G02763923Courtesy of FORD MOTOR CO.
  9. Tighten the bolts in the sequence shown.
    • Stage 1: Tighten to 2 Nm (18 lb-in).
    • Stage 2: Tighten to 20 Nm (15 lb-ft).
    • Stage 3: Tighten an additional 90 degrees.
  10. Lower the engine and remove the special tools.
  11. Install the flywheel inspection plate.
    Fig 5: Installing Flywheel Inspection Plate
    G02763924Courtesy of FORD MOTOR CO.
  12. Tighten the engine support insulators.

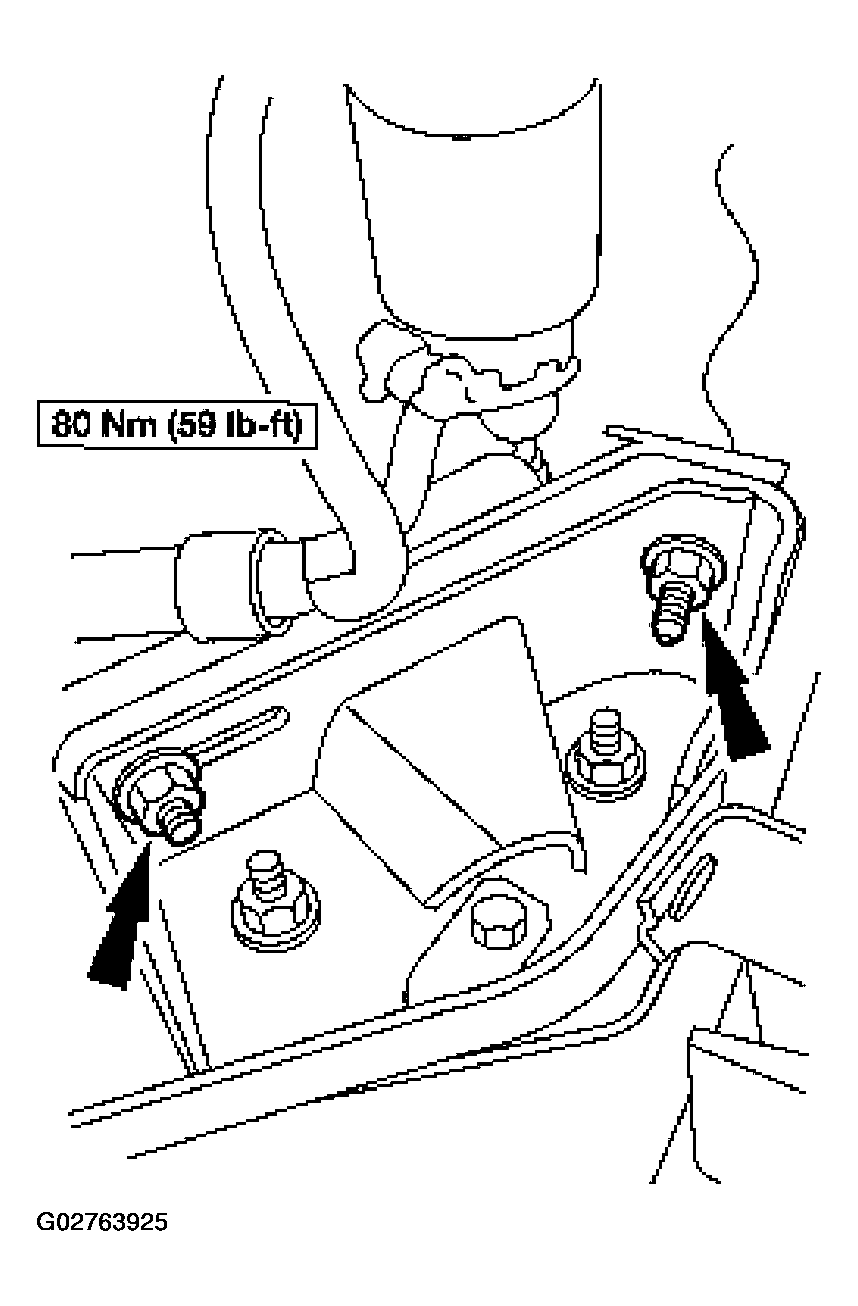

    Fig 6: Tightening Engine Support Insulator Nuts
    G02763925Courtesy of FORD MOTOR CO.
  13. NOTE: Do not reuse the O-ring seal.
    Fig 7: Installing New O-Ring Seal And Heater Outlet Tube
    G02763926Courtesy of FORD MOTOR CO.
  14. Install the new O-ring seal and the heater outlet tube.
    • Lubricate the O-ring seal with engine coolant.
  15. Hand-tighten the heater outlet tube upper stud and install the lower stud.
    • Tighten the studs to 40 Nm (30 lb-ft).

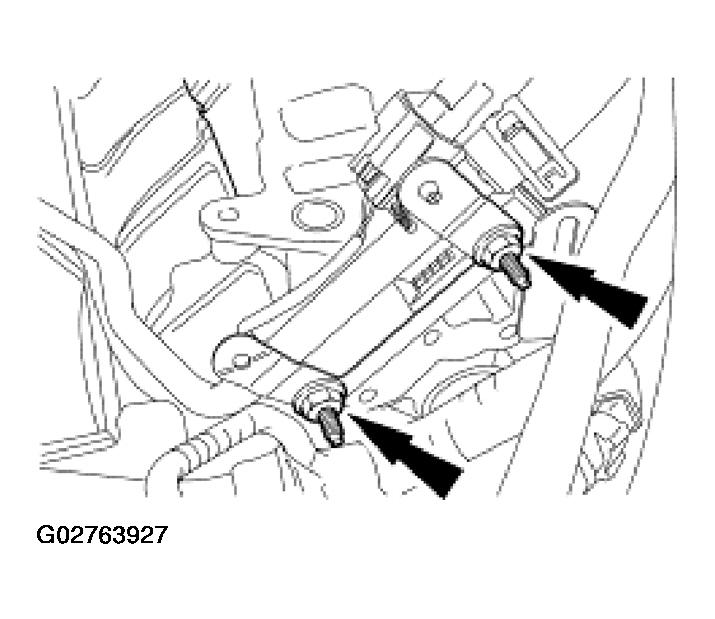

    Fig 8: Installing Heater Outlet Tube Upper & Lower Studs
    G02763927Courtesy of FORD MOTOR CO.
  16. Remove the nut attaching the transmission oil level tube.

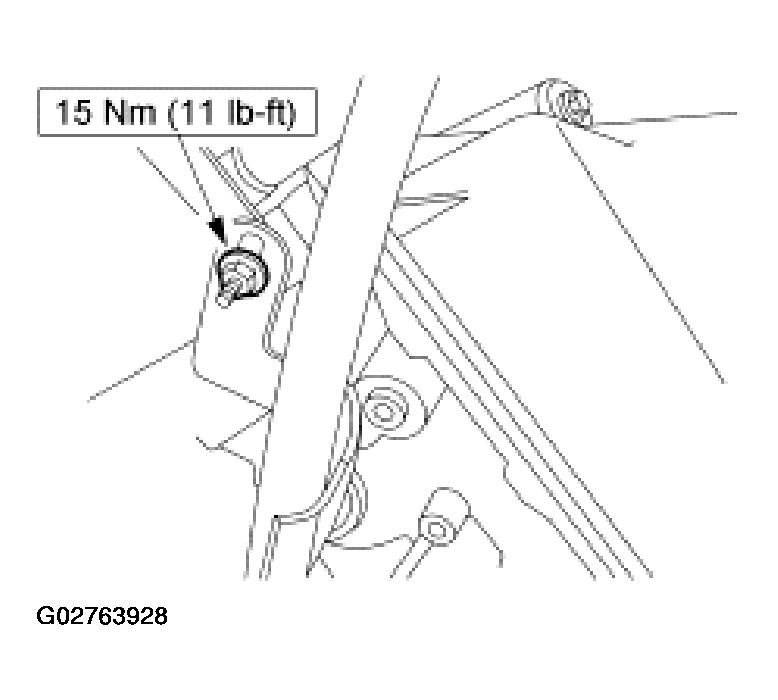

    Fig 9: Removing Nut Attaching Transmission Oil Level Tube
    G02763928Courtesy of FORD MOTOR CO.
  17. Connect the wiring harness retainer.

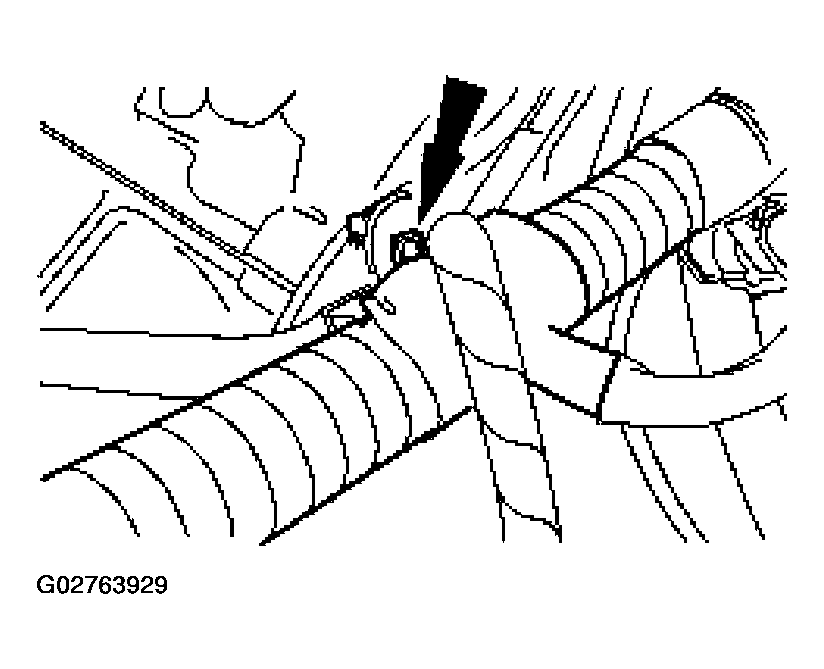

    Fig 10: Connecting Wiring Harness Retainer
    G02763929Courtesy of FORD MOTOR CO.
  18. Connect the oil fill tube to the RH valve cover.

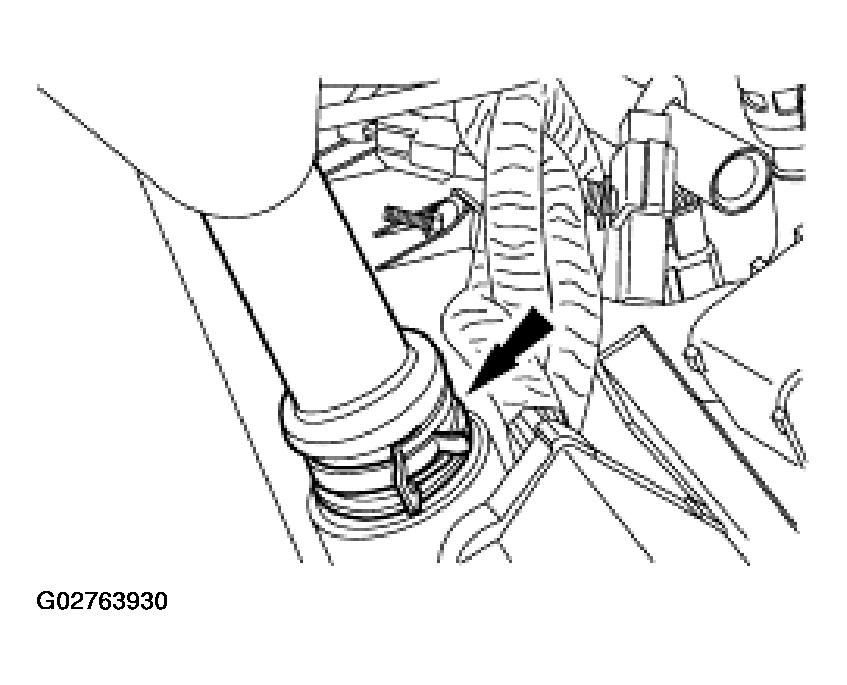

    Fig 11: Connecting Oil Fill Tube To RH Valve Cover
    G02763930Courtesy of FORD MOTOR CO.
  19. Install the oil fill tube support bracket bolt.

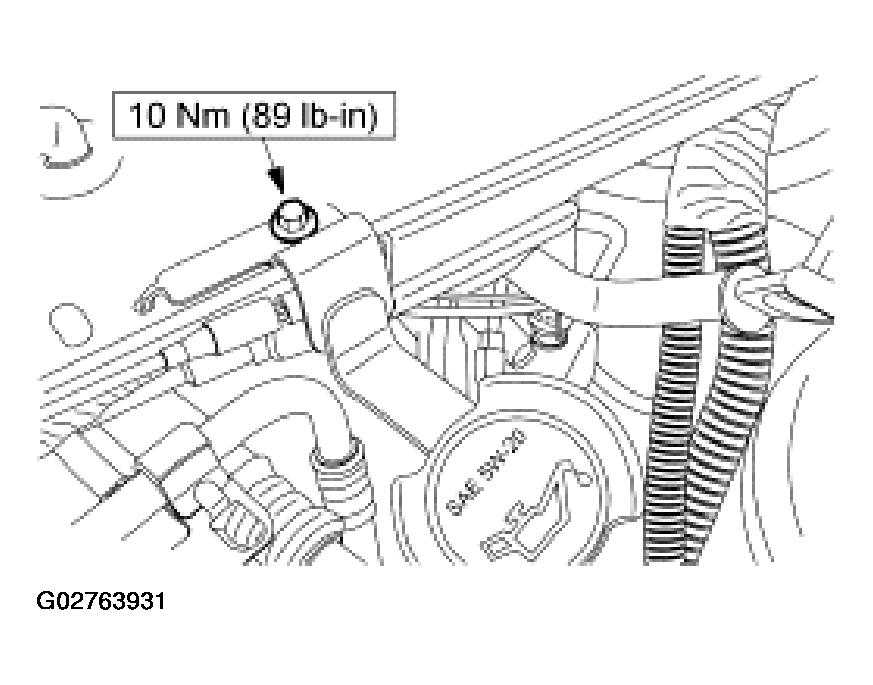

    Fig 12: Installing Oil Fill Tube Support Bracket Bolt
    G02763931Courtesy of FORD MOTOR CO.
  20. Install the transmission-to-engine bolts.

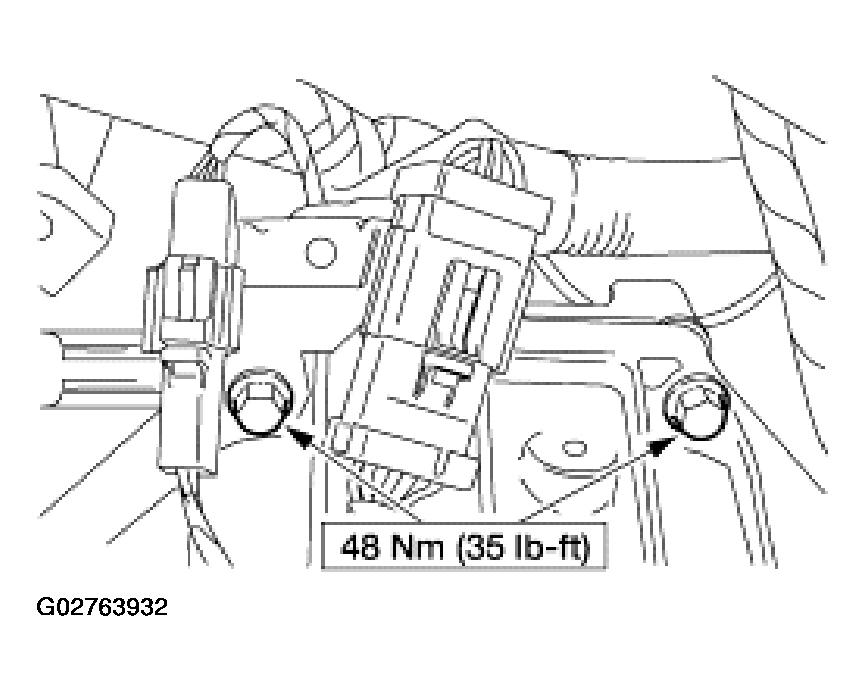

    Fig 13: Installing Transmission-To-Engine Bolts
    G02763932Courtesy of FORD MOTOR CO.
  21. Install the shield and the retainers.

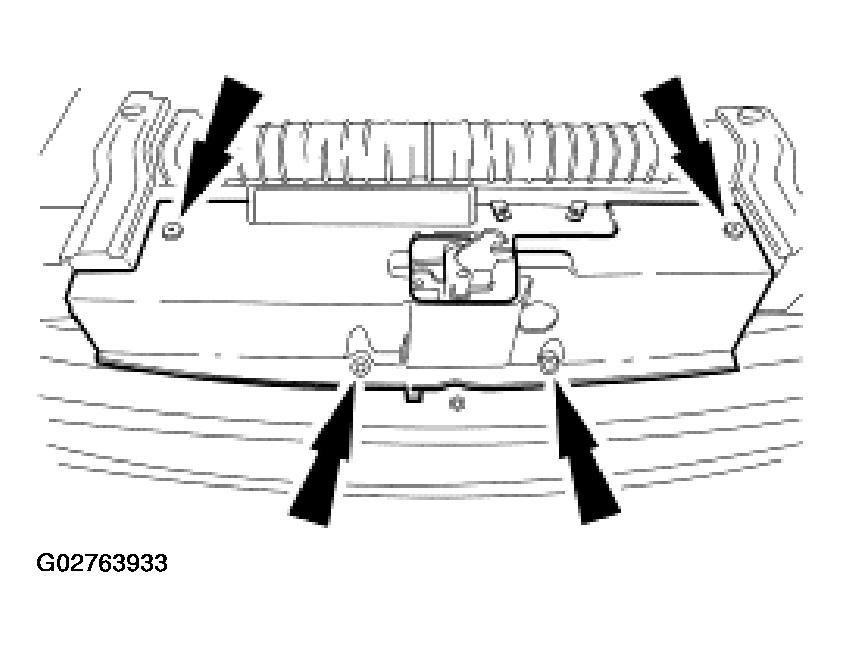

    Fig 14: Installing Shield And Retainers
    G02763933Courtesy of FORD MOTOR CO.
  22. Install the intake manifold. For additional information, refer to INTAKE MANIFOLD .
  23. Fill the engine with clean engine oil.
  24. Install the engine cooling fan and fan shroud. For additional information, refer to ENGINE COOLING .
  25. Fill and bleed the engine cooling system. For additional information, refer to ENGINE COOLING .
