In-Vehicle Repair: Flexplate: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - 4R70W/4R75 .
  2. Remove the bolts and the flexplate.

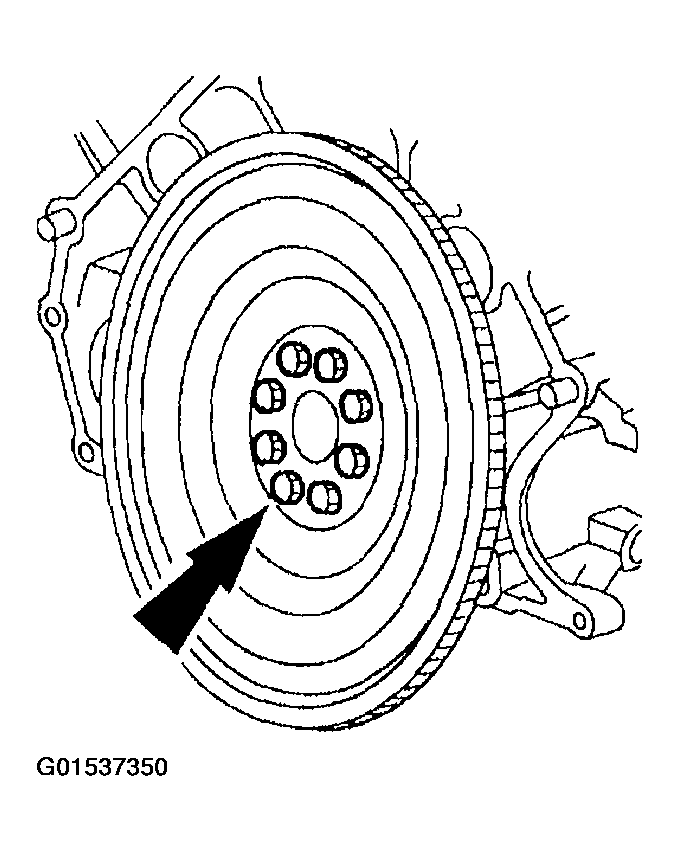

    Fig 1: Removing Bolts And Flexplate
    G01537350Courtesy of FORD MOTOR CO.
