Major Exterior Components

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

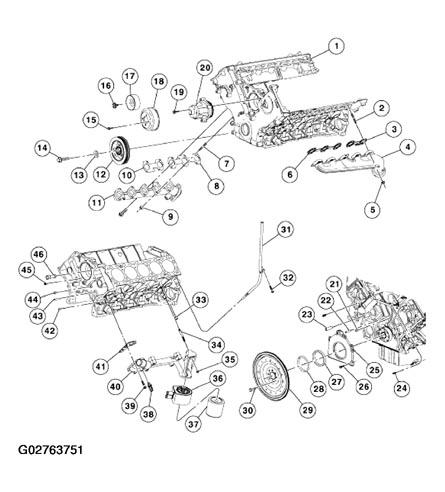

Fig 1: Identifying Major Exterior Components - Exploded View
G02763751Courtesy of FORD MOTOR CO.

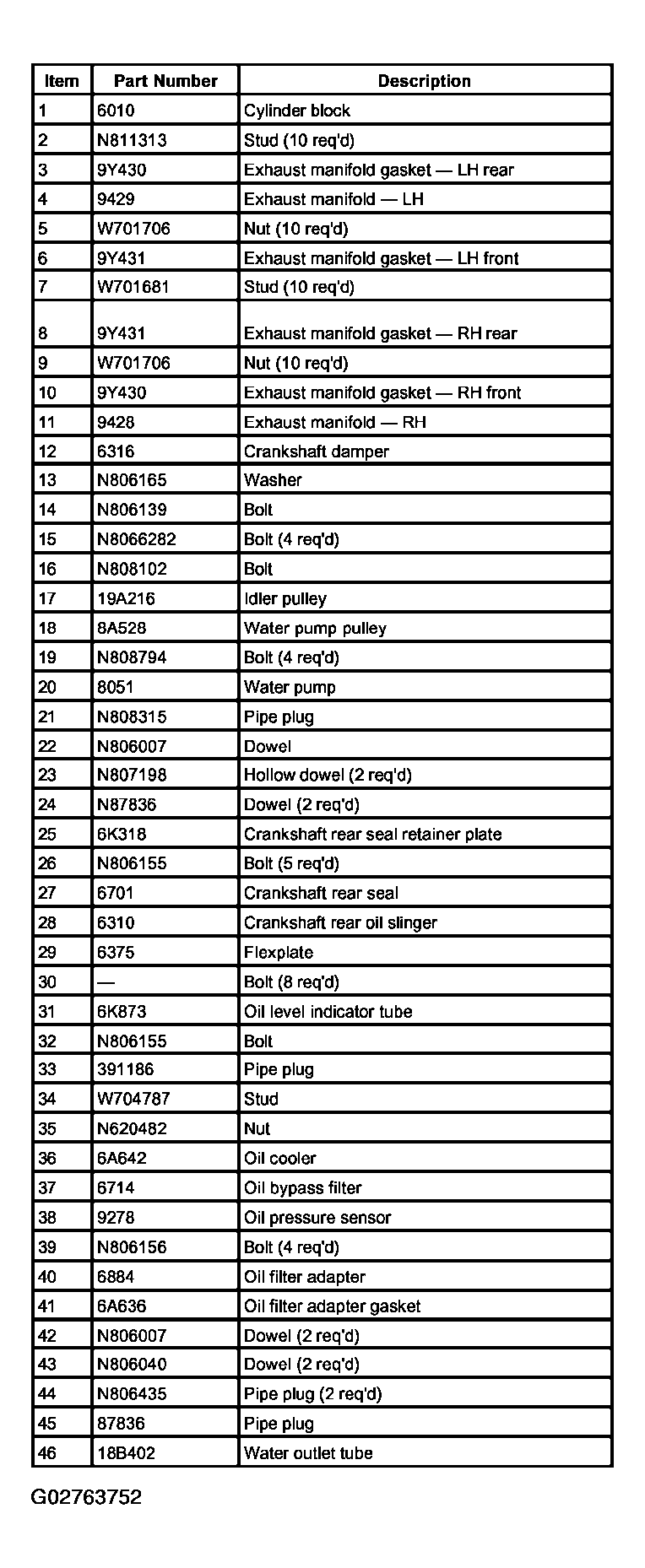

Fig 2: Identifying Major Exterior Components - Item Description (Items 1-46)
G02763752Courtesy of FORD MOTOR CO.
