Rear Seat Backrest - Third Row: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the third row seat backrest. For additional information, refer to REAR SEAT - THIRD ROW .
Disassemble the parts in the order listed in the following illustration and table.

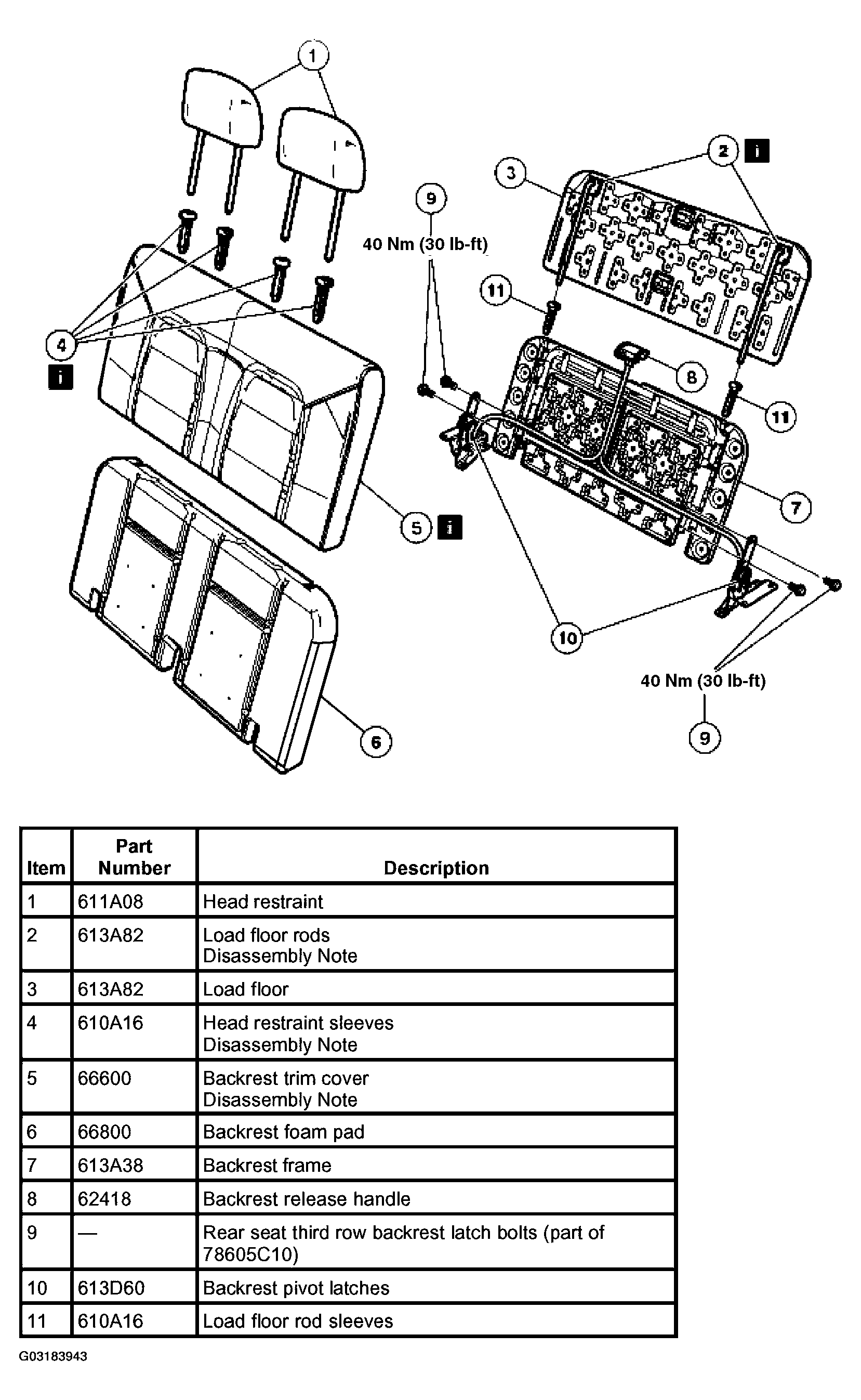

Fig 1: Removing Rear Seat Backrest - Third Row Components
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
