Driver Memory Seat Module C341g

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

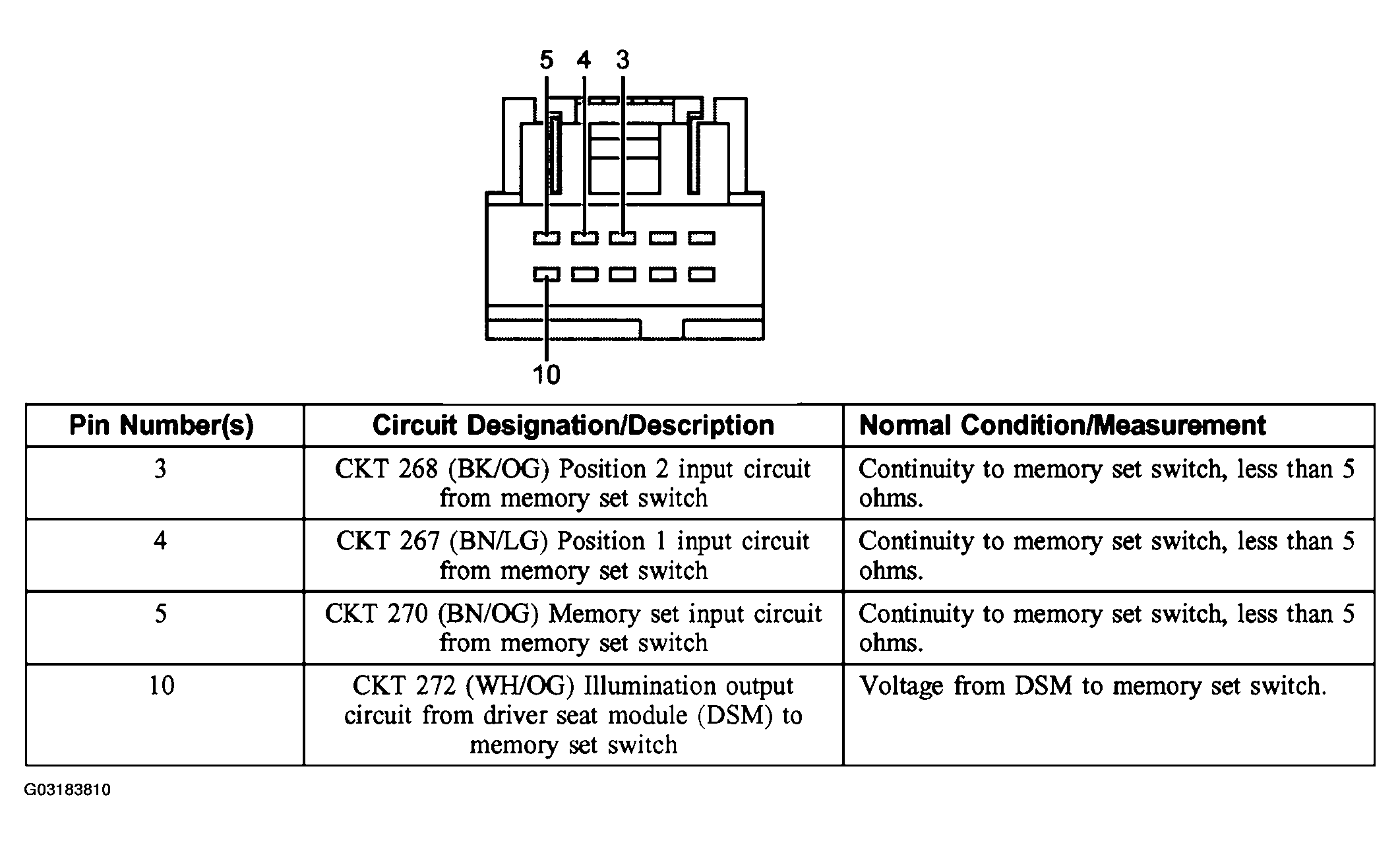

Fig 1: Identifying Driver Memory Seat Module C341G Connector Pins
G03183810Courtesy of FORD MOTOR CO.
