Roof Opening Panel: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the parts in the order indicated in the following table and illustration.

To remove individual parts, only carry out the listed steps:

PART REMOVAL STEPS

Part	Steps
Roof Opening Panel Glass	1-2
Roof Opening Panel Motor	3-5
Roof Opening Panel Shield	1-2, 6
Roof Opening Panel Frame	1-2, 6-10
Sunshade Glide	1-2, 6, 12
Mechanism Foot	1-2, 13
Mechanism Pin and E -Clip	1-2, 14-15
Rail Assembly Corner Insert	16

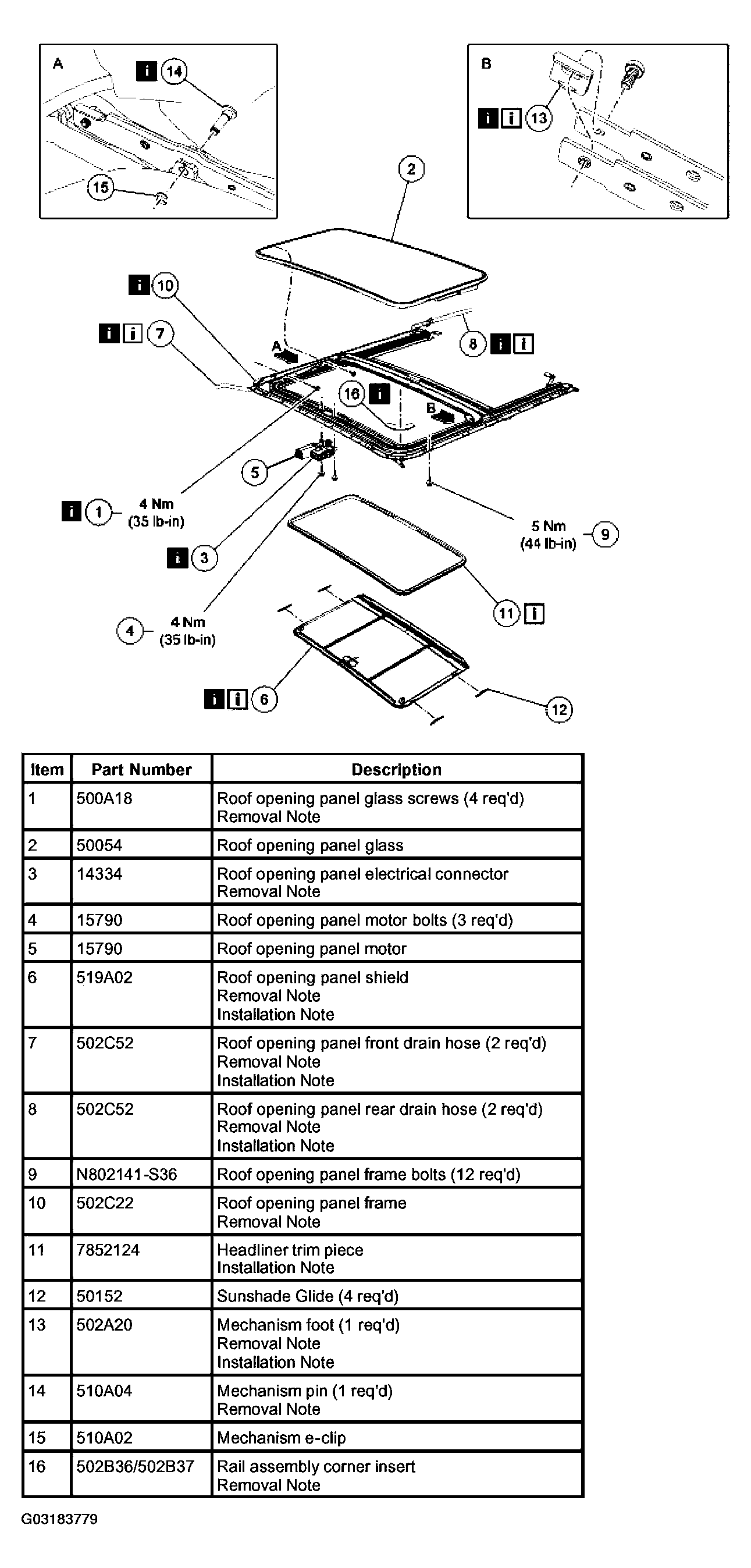

Fig 1: Removing Roof Opening Panel Components

Courtesy of FORD MOTOR CO.

Install in the reverse order of removal.
