Removal And Installation: Headliner: Notes
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Headliner with roof opening panel is shown. Headliner without opening panel is similar.
- If equipped, remove the rear auxiliary A/C controls. For additional information, refer to CLIMATE CONTROL SYSTEM .
- If equipped, remove the rear entertainment system. For additional information, refer to ENTERTAINMENT SYSTEM .
- Remove the overhead console. For additional information, REFER to OVERHEAD CONSOLE .
- Remove the A-pillar trim panels and position aside the upper B-, C- and D-pillar trim panels. For additional information, refer to INTERIOR TRIM PANELS .
- If equipped, remove the gimp around the roof opening panel.

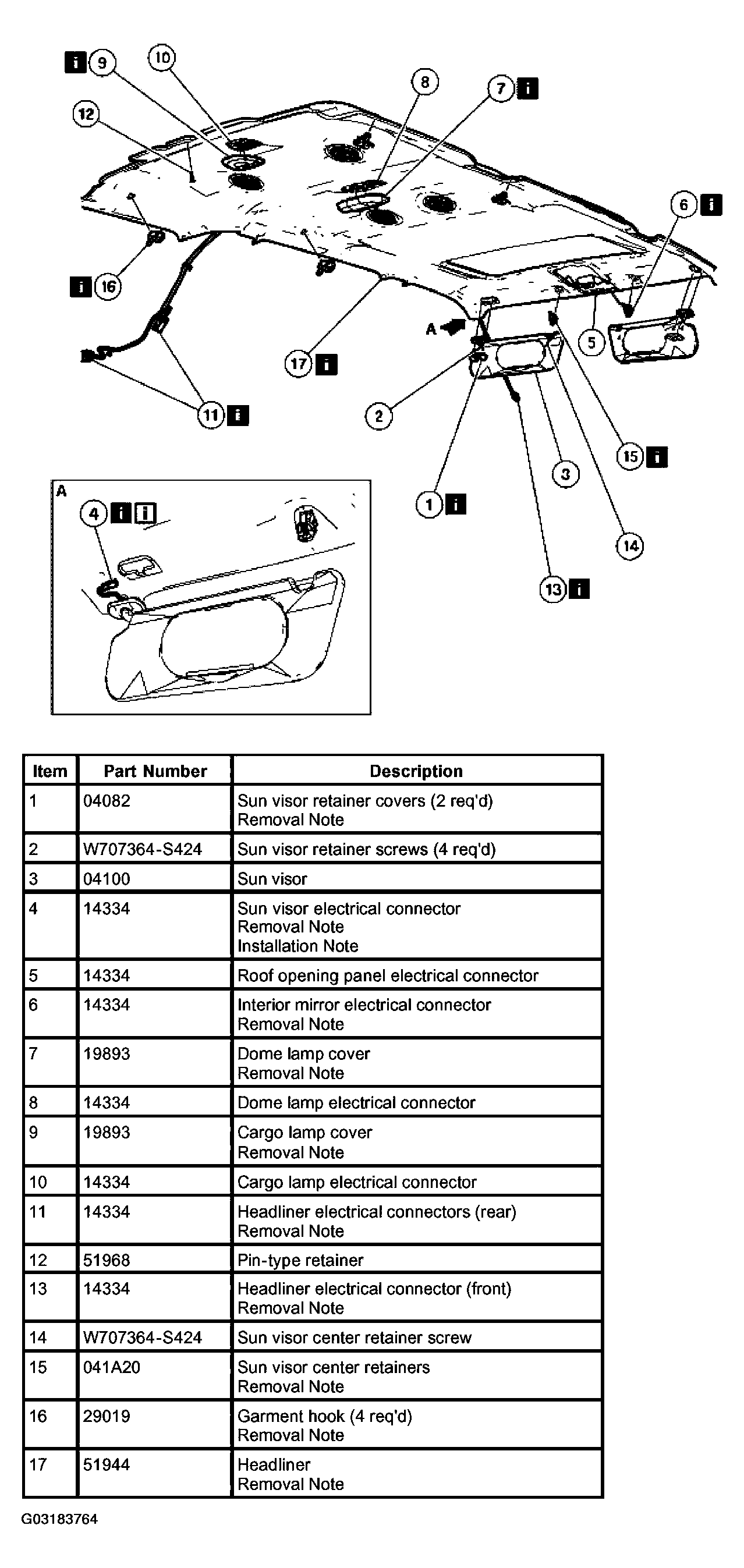

- Remove the parts in the order listed in the following illustration and table.
- Install in the reverse order of removal.
NOTE:
It is not necessary to remove the lower safety belt anchor bolts to position aside the upper B -, C- and D-pillar trim panels.
