Side Lamp Assembly

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH shown, LH similar.

Remove the front fender splash shield. For additional information, refer to BODY SYSTEM - EXTERIOR .
Remove the parts in the order indicated in the following illustration and table.

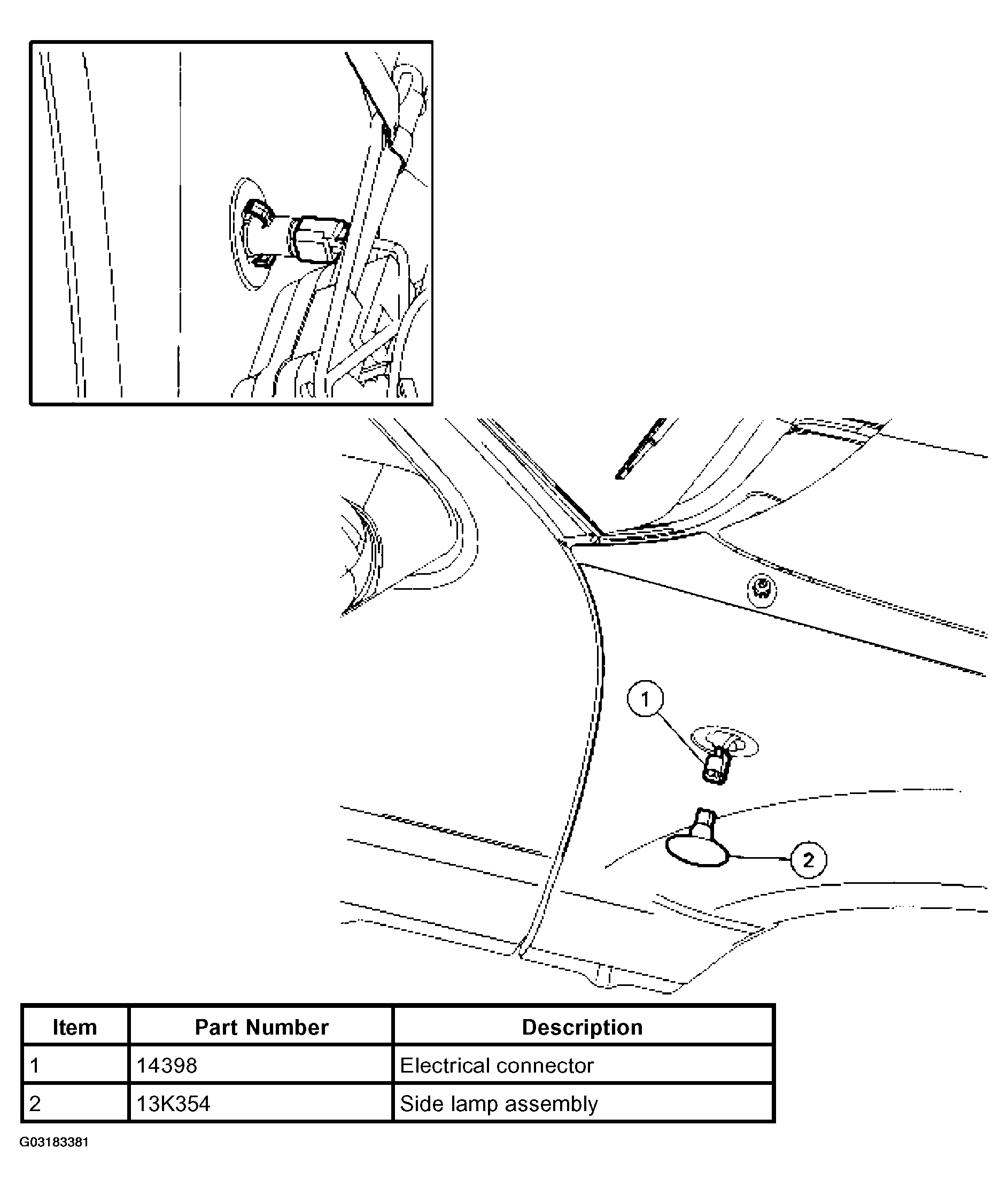

Fig 1: Identifying Side Lamp Assembly And Electrical Connector
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
