Plenum Chamber, Assembly and Components

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center instrument panel finish panel. For additional information, refer to BODY SYSTEM - INTERIOR .
  2. Remove the defroster duct. For additional information, refer to AIR DISTRIBUTION DUCTS .
  3. Remove the instrument panel. For additional information, refer to BODY SYSTEM - INTERIOR .
  4. Remove the parts in the order indicated in the following illustration and table.

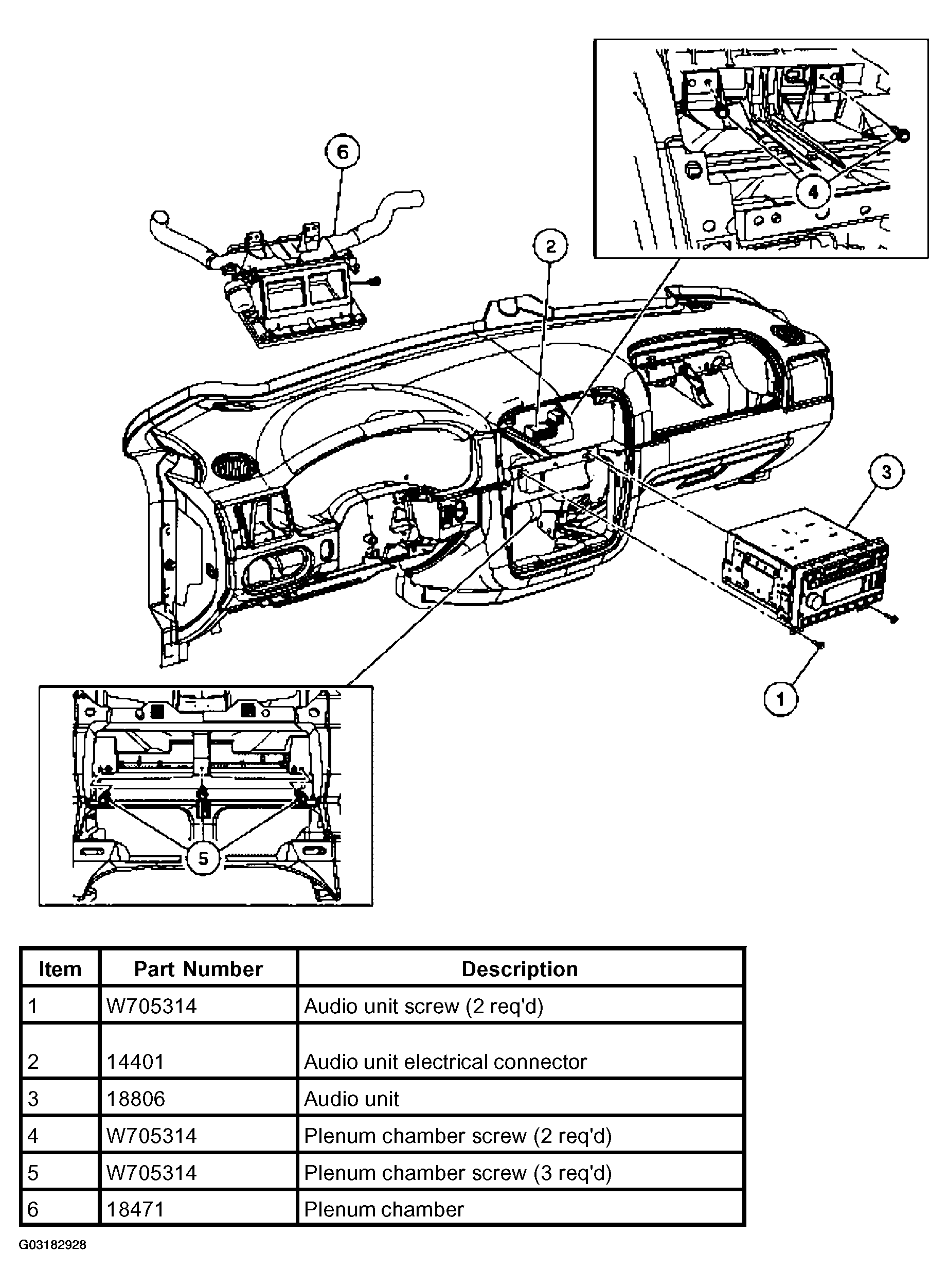

    Fig 1: Identifying Removal Sequence Of Plenum Chamber, Assembly And Components
    G03182928Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
