Ambient Air Temperature Sensor

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radiator grille. For additional information, refer to BODY SYSTEM - EXTERIOR .
Remove the parts in the order listed in the following illustration and table.

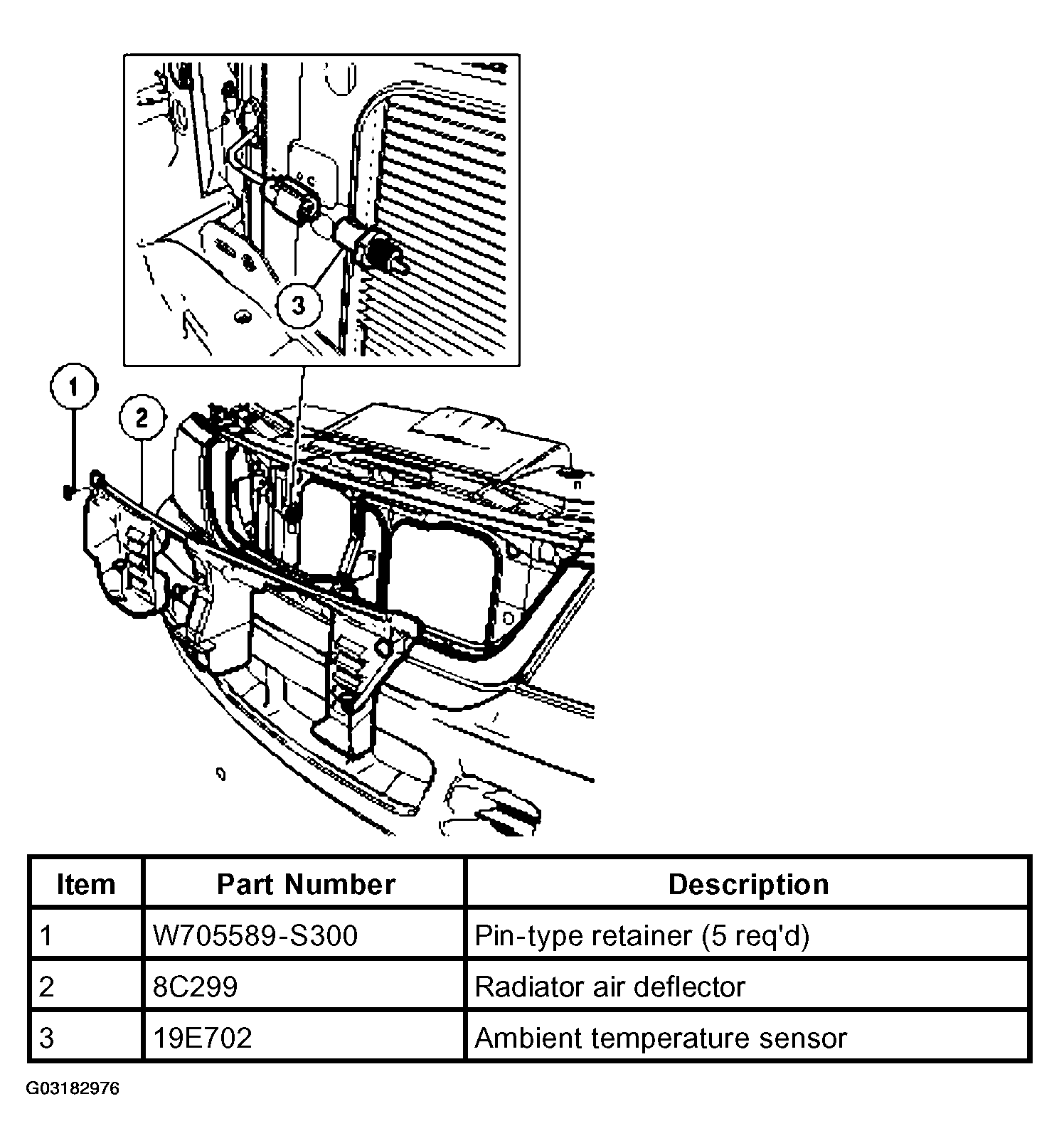

Fig 1: Identifying Removal Sequence Of Ambient Air Temperature Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
