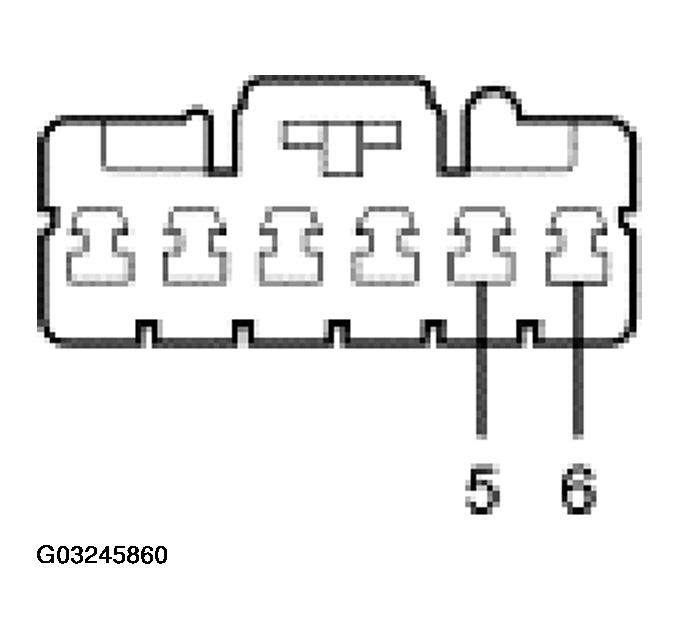

UPPER CLOCKSPRING CONNECTOR
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 5 | 1205 (BK) ground | Less than 5 ohms between the steering wheel control switch and the clockspring. |
| 6 | 595 (LB/RD) steering wheel audio control switches signal | Less than 5 ohms between the steering wheel control switches and the clockspring. Greater than 10,000 ohms between the steering wheel control switch and ground. |
