Elevation System Check
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

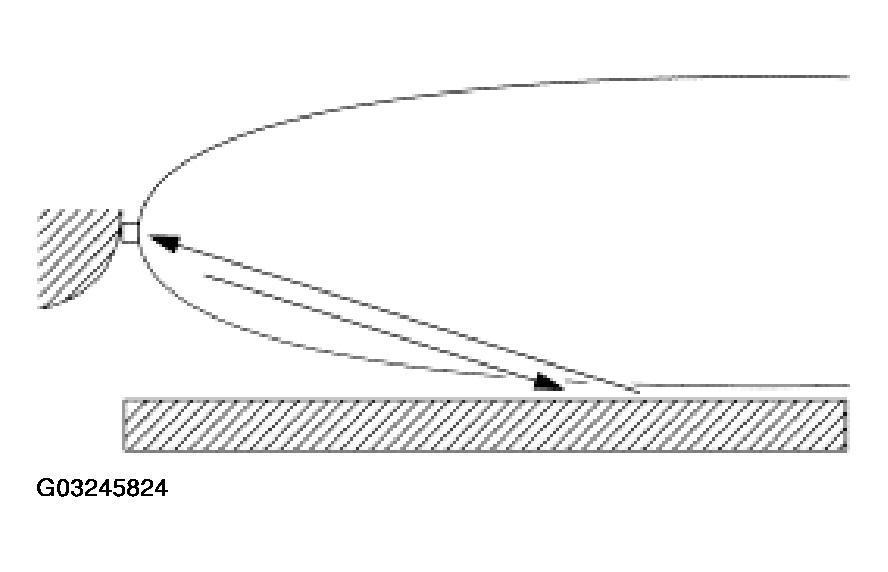

- Check the ground reflection verification and sensor coverage pattern.
- The parking aid system must be checked to make sure that the system does not see signals from ground reflections.
- The following system check should be carried out with the vehicle on a 3.0 meters wide by 4.5 meters deep (15 feet wide by 10 feet deep) smooth concrete surface, free of all obstacles and noise from fan and pneumatic tools.
- Turn the ignition to the ON position, engine OFF.
- Set the parking brake on.
- Place the transmission selector lever in REVERSE.
- Verify that no audible alerts are heard.
NOTE:
No audible alerts should be heard. If audible alerts are heard, check to make sure the bumper cover is correctly installed and is not tilted downward so that the sensor is pointing at the ground.
