Cylinder Heads

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

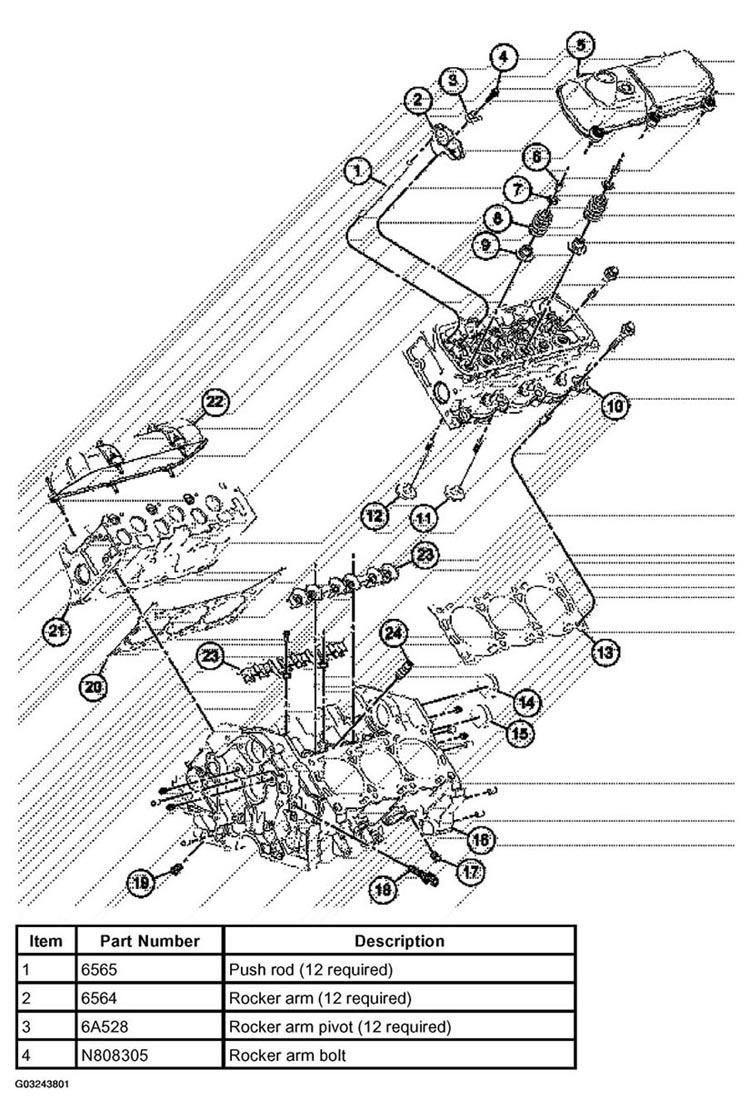

Fig 1: Identifying Cylinder Heads (Items 1-4)
G03243801Courtesy of FORD MOTOR CO.

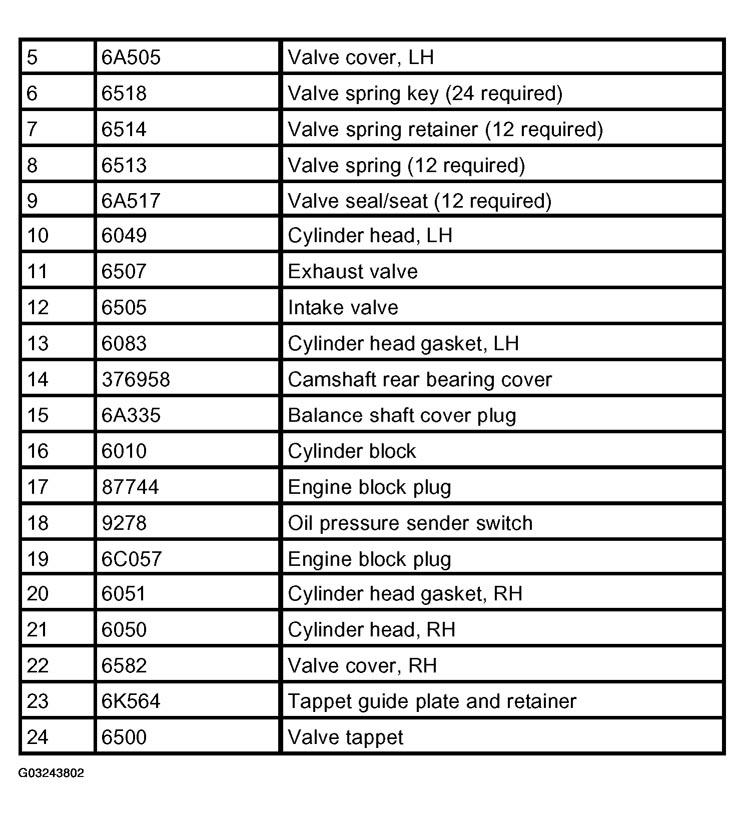

Fig 2: Identifying Cylinder Heads (Items 4-24)
G03243802Courtesy of FORD MOTOR CO.
