Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel finish panel screws.

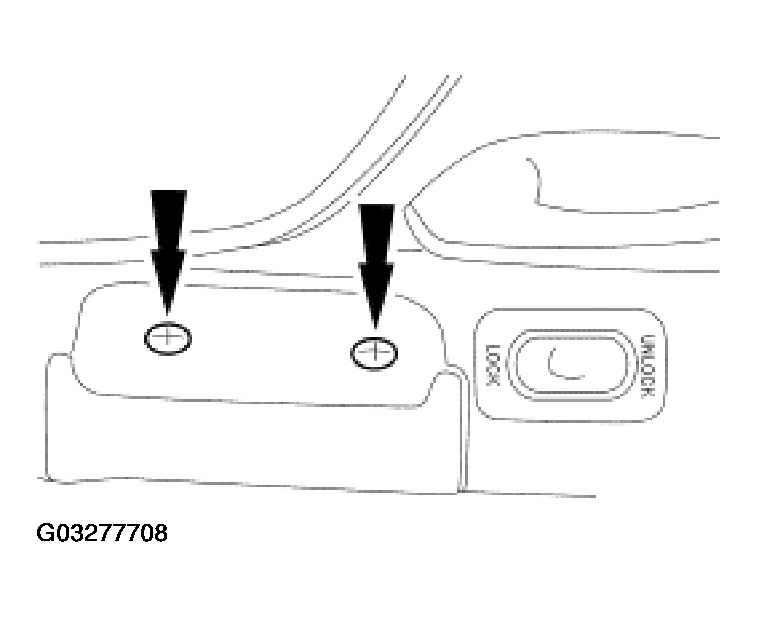

    Fig 1: Removing Door Trim Panel Finish Panel Screws
    G03277708Courtesy of FORD MOTOR CO.
  2. Reposition the door trim panel finish panel.

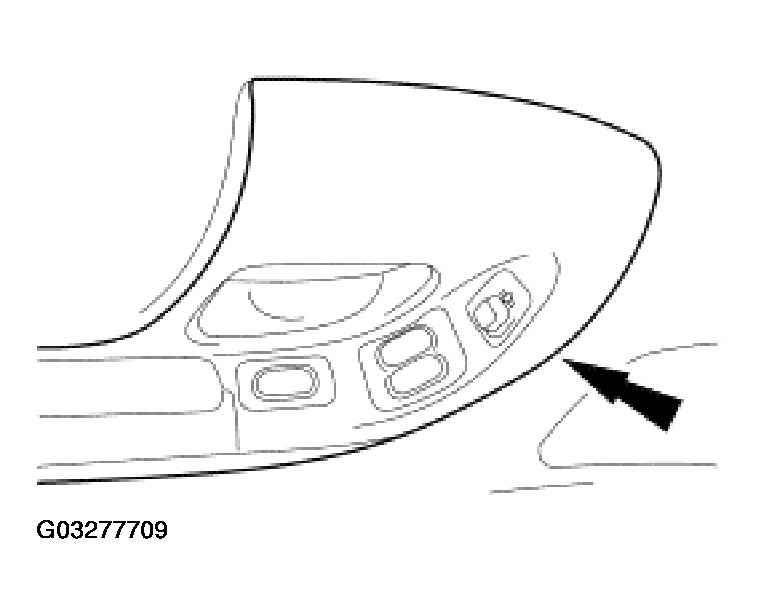

    Fig 2: Positioning Door Trim Panel Finish Panel
    G03277709Courtesy of FORD MOTOR CO.
  3. Remove the window regulator control switch from the door trim panel finish panel.
    1. Remove the screws.
    2. Remove the window regulator control switch plate from the switch.
    3. Remove the window regulator switch.

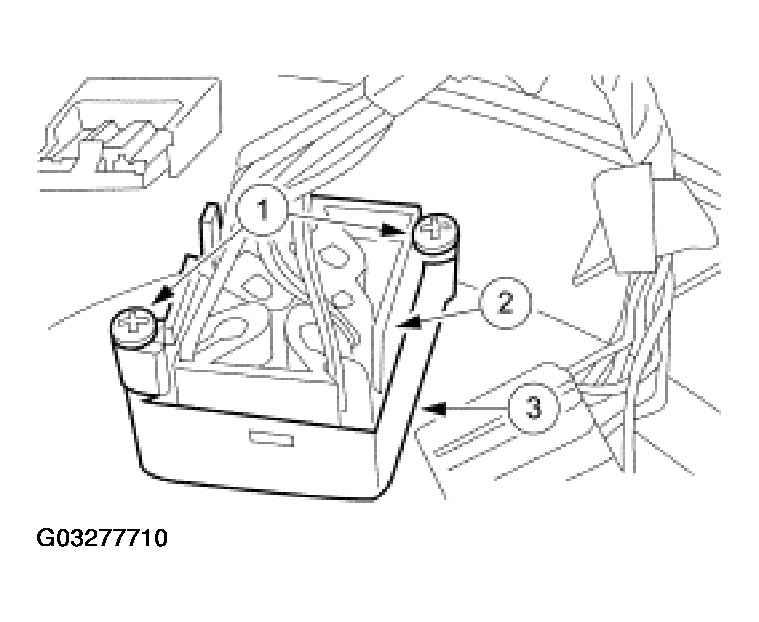

      Fig 3: Removing Window Regulator Control Switch
      G03277710Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.

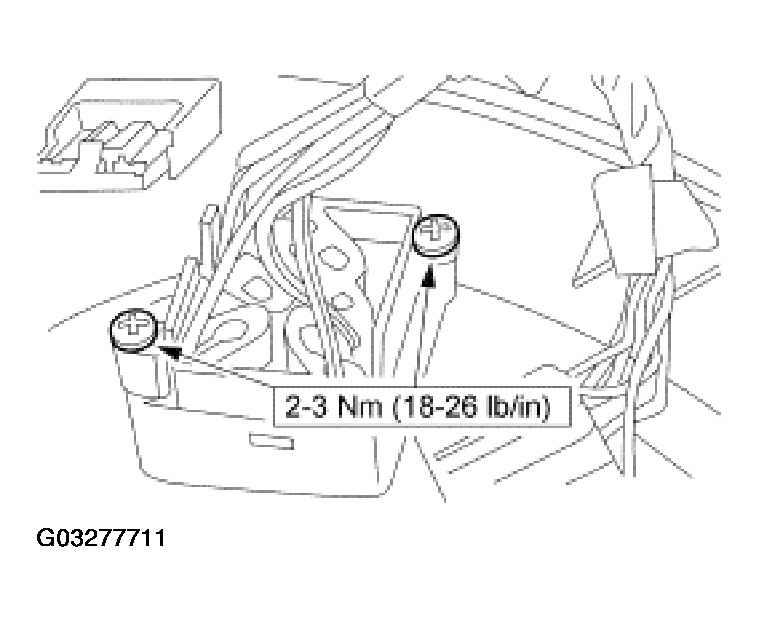

Fig 4: Installing Window Regulator Control Switch
G03277711Courtesy of FORD MOTOR CO.
