Front Seat: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

ALL SEATS

Position the seat into the vehicle.
Connect the safety belt pretensioner electrical connector.

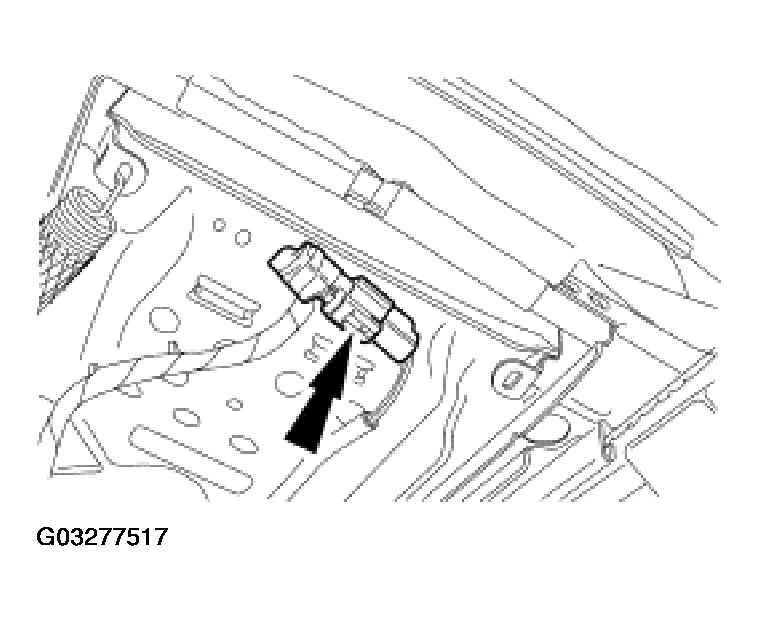

Fig 1: Connecting Safety Belt Pretensioner Electrical Connector
Courtesy of FORD MOTOR CO.

60 PERCENT SEAT

NOTE: SuperCab and Regular Cab safety belts route differently, make sure of correct routing.

Fig 2: Routing Center Safety Belt Buckle Through Locating Strap

Courtesy of FORD MOTOR CO.

Route the center safety belt buckle through the locating strap on the side of the seat.
Install the front bolts.

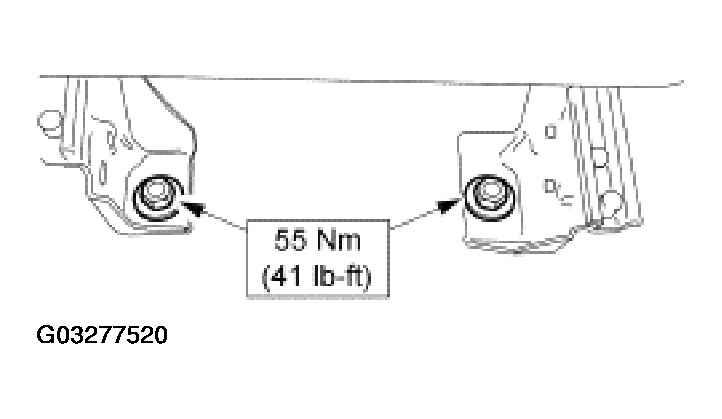

Fig 3: Installing Front Bolts
Courtesy of FORD MOTOR CO.
Move seat to foremost position.
Install the rear bolts.

Fig 4: Installing Rear Bolts
Courtesy of FORD MOTOR CO.
Using the special tool 501-010, install the safety belt buckle bolt.

Fig 5: Installing Safety Belt Buckle Bolt
Courtesy of FORD MOTOR CO.
Slide the safety belt buckle bolt covers on the safety belt and position in place.

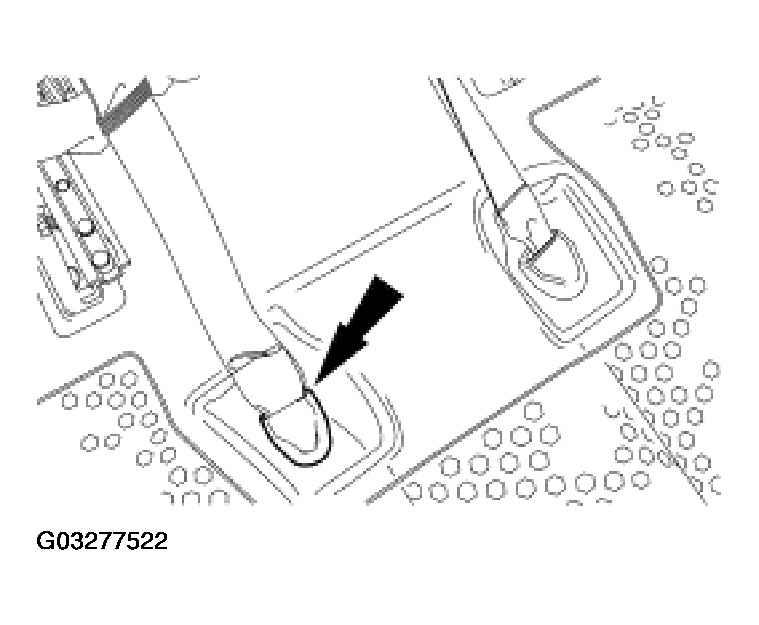

Fig 6: Installing Safety Belt Buckle Bolt Cover
Courtesy of FORD MOTOR CO.

40 PERCENT SEAT

Install the front bolts.

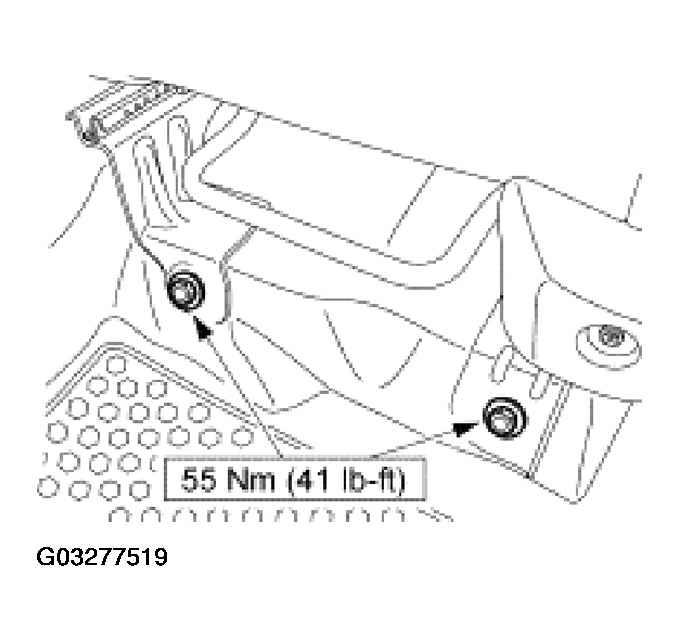

Fig 7: Installing Front Bolts
Courtesy of FORD MOTOR CO.
Position the seat to its forward most position.
Install the rear bolts.

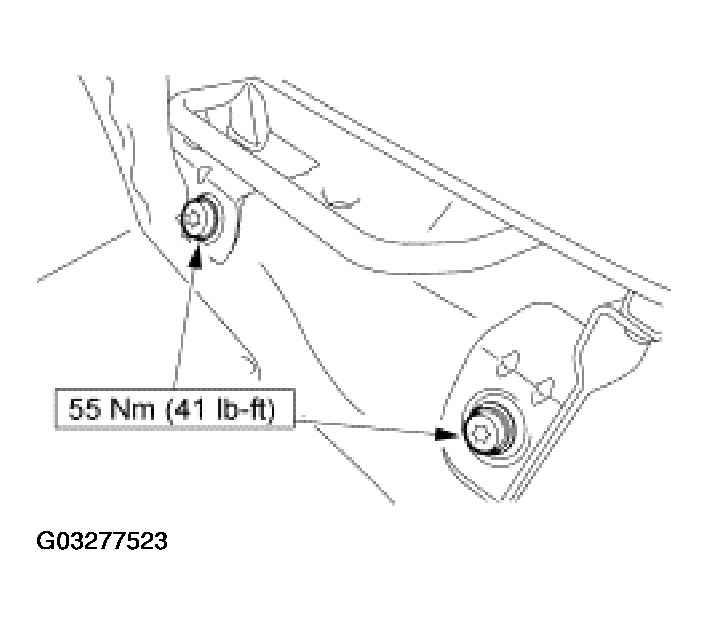

Fig 8: Installing Rear Bolts
Courtesy of FORD MOTOR CO.

ALL SEATS

Repower the SRS. For additional information, refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
