Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

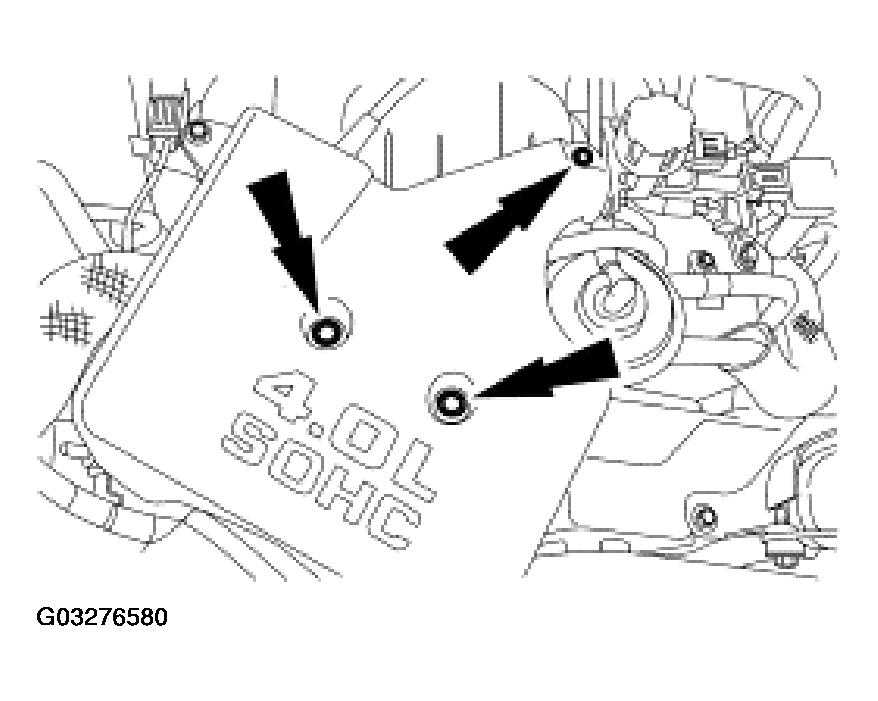

Remove the screws and remove the accelerator control splash shield.

Fig 1: Removing Screws And Accelerator Control Splash Shield
Courtesy of FORD MOTOR CO.

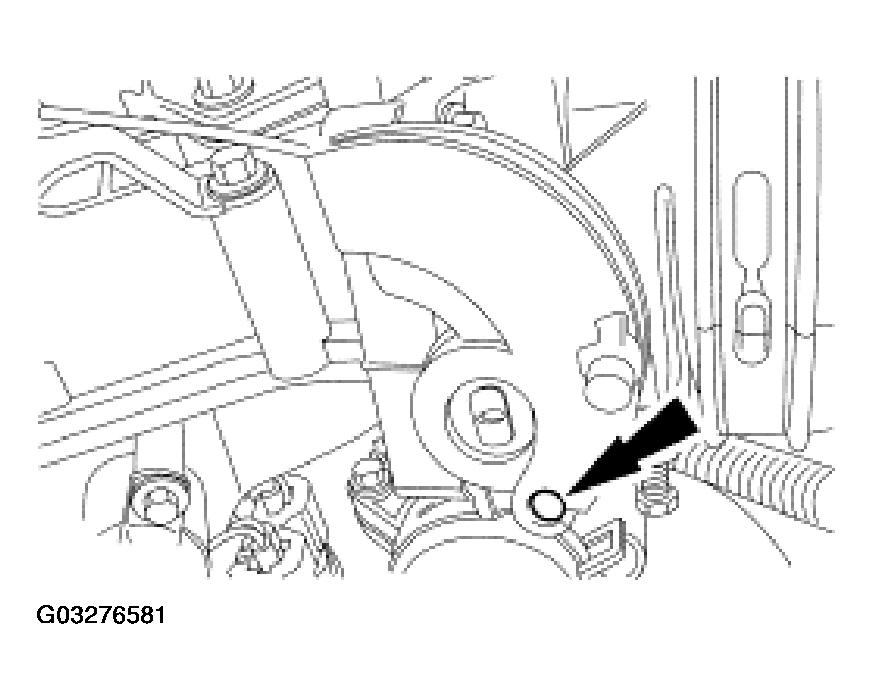

Disconnect the accelerator cable from the throttle lever.

Fig 2: Disconnecting Accelerator Cable From Throttle Lever
Courtesy of FORD MOTOR CO.

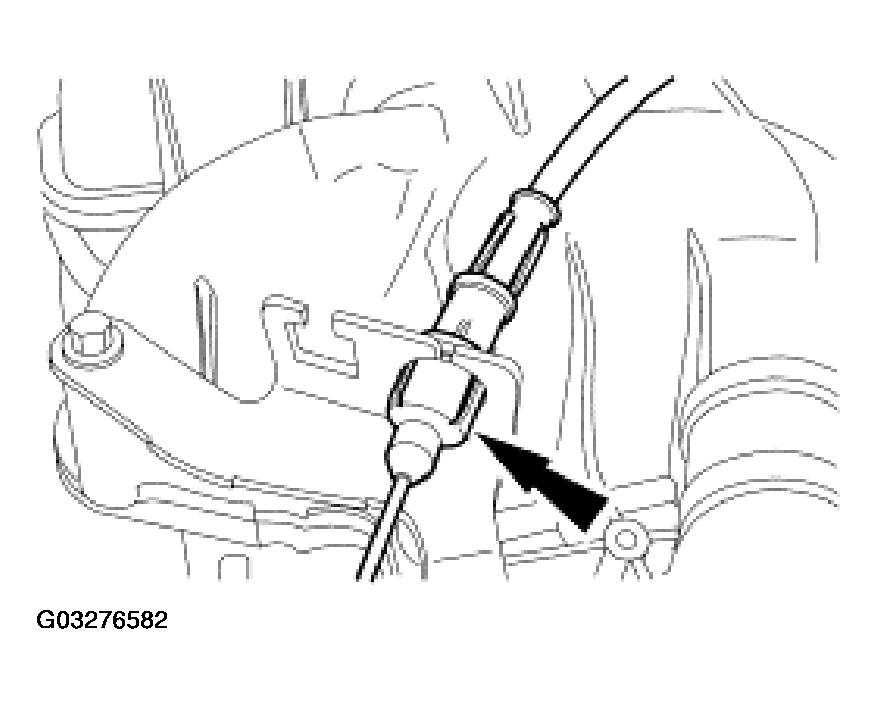

Depress the tabs and remove the accelerator cable from the accelerator cable bracket.

Fig 3: Removing Accelerator Cable From Accelerator Cable Bracket
Courtesy of FORD MOTOR CO.

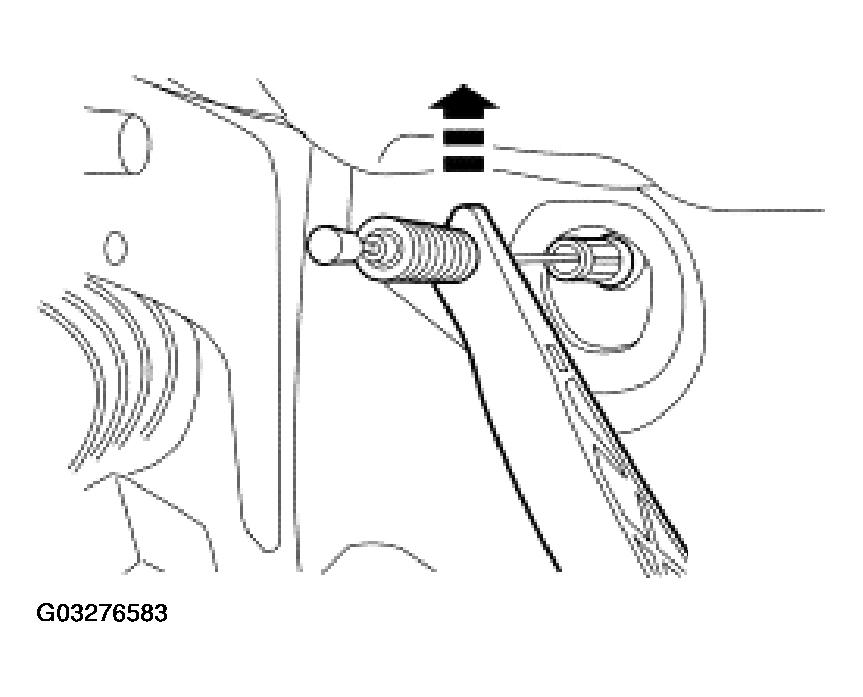

Disconnect the accelerator cable from the accelerator pedal and shaft.

Fig 4: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft
Courtesy of FORD MOTOR CO.

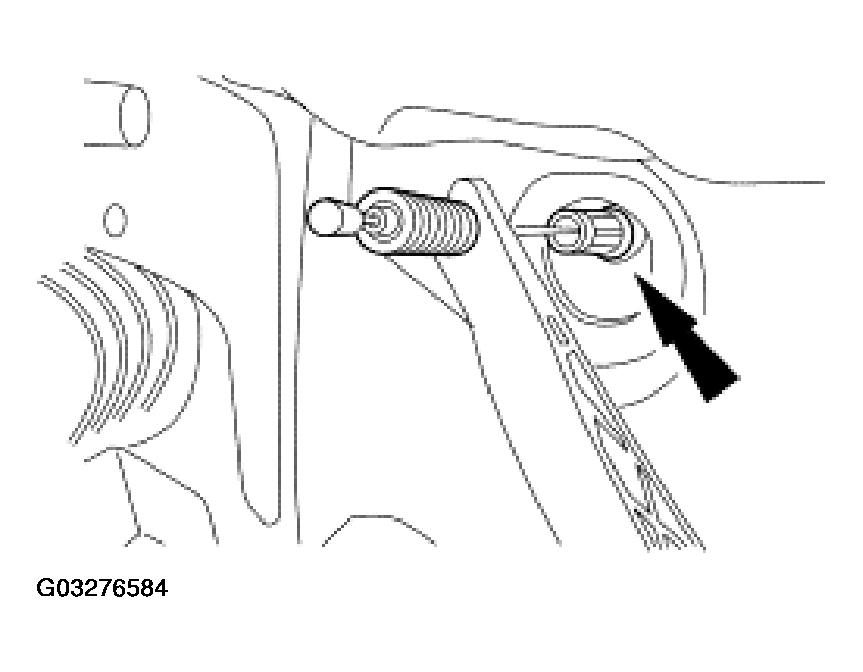

Depress the clips and remove the accelerator cable.

Fig 5: Removing Accelerator Cable
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
