Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner outlet tube.

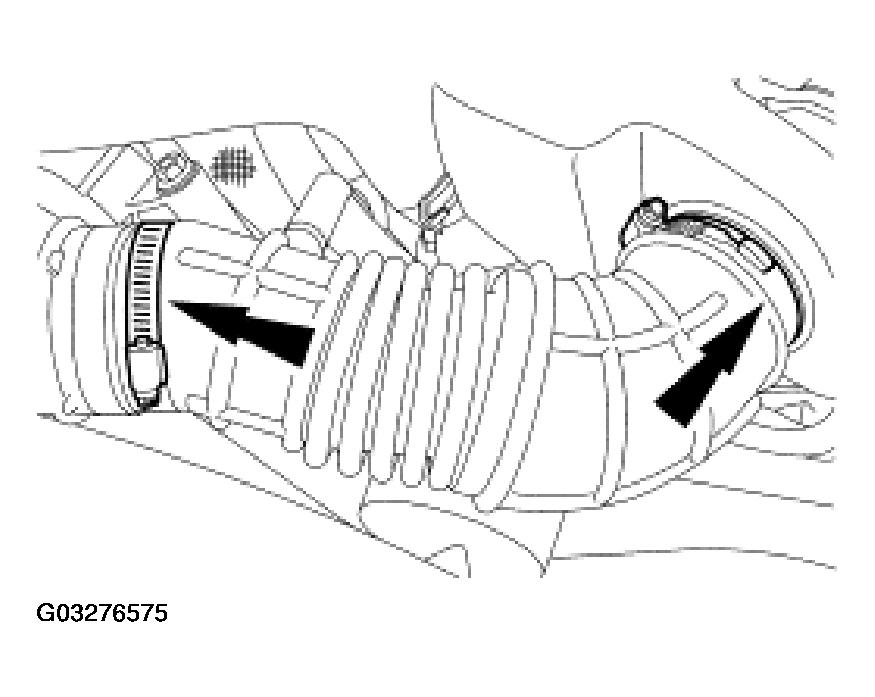

Fig 1: Removing Air Cleaner Outlet Tube
Courtesy of FORD MOTOR CO.
Remove the screws and remove the accelerator control splash shield.

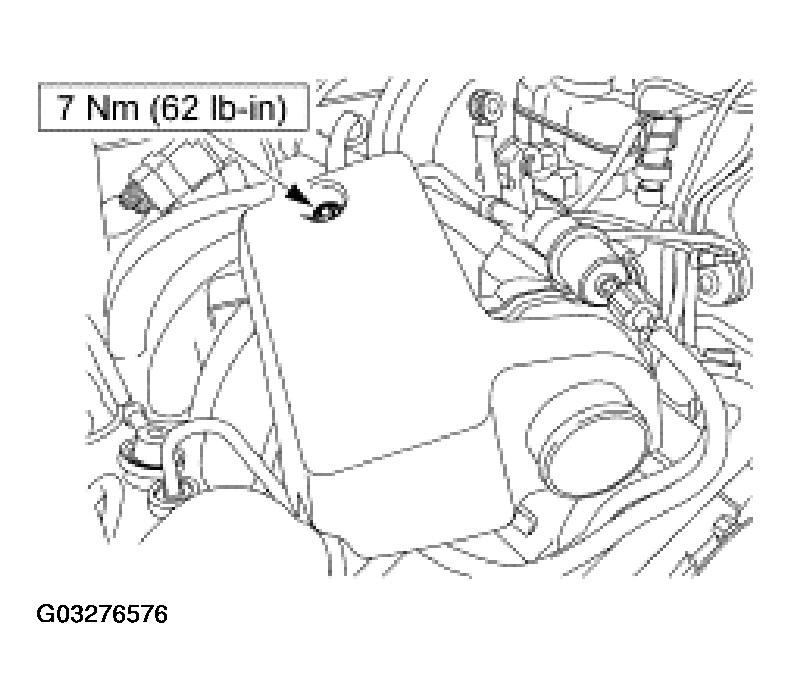

Fig 2: Removing Accelerator Control Splash Shield
Courtesy of FORD MOTOR CO.
Disconnect the accelerator cable from the throttle lever and the bracket.

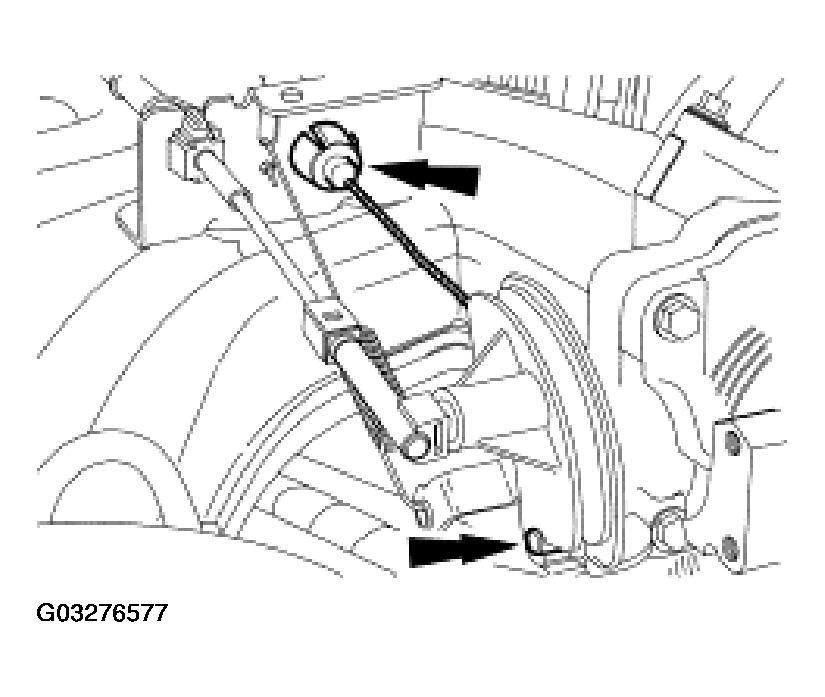

Fig 3: Disconnecting Accelerator Cable From Throttle Lever And Bracket
Courtesy of FORD MOTOR CO.
Disconnect the accelerator cable from the accelerator pedal and shaft.

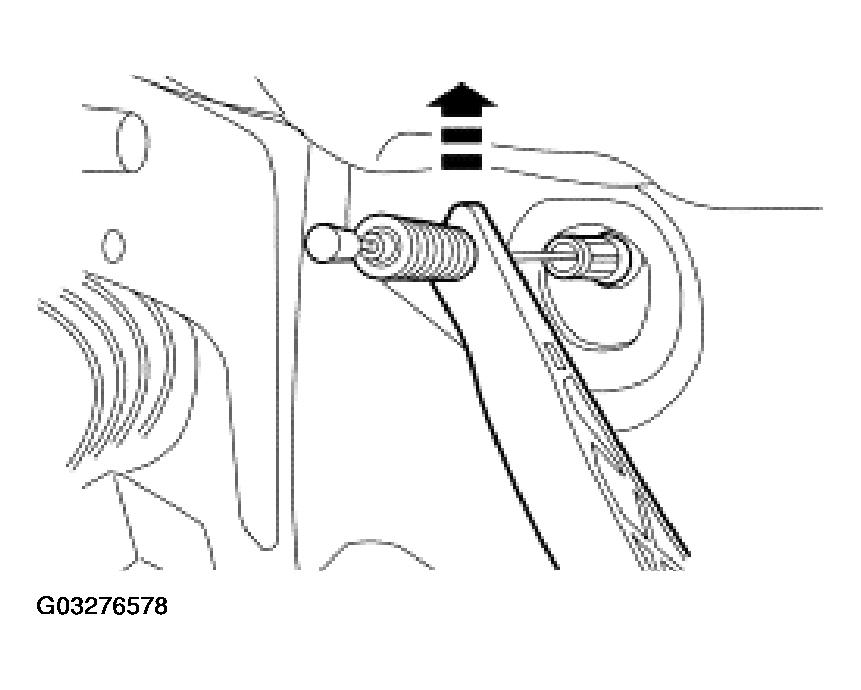

Fig 4: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft
Courtesy of FORD MOTOR CO.
Depress the clips and remove the accelerator cable from the accelerator pedal and shaft.

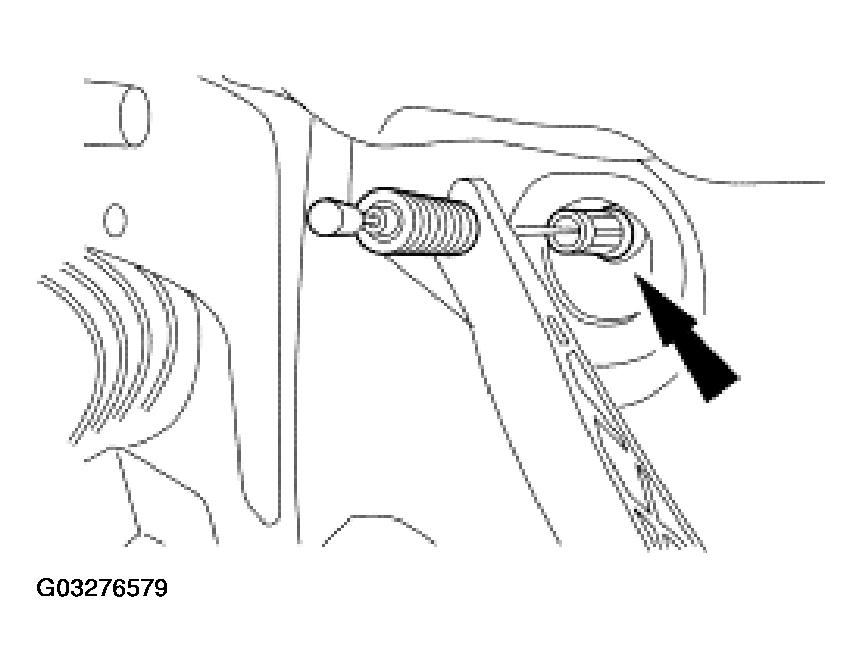

Fig 5: Removing Accelerator Cable From Accelerator Pedal And Shaft
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
