Fuel Line Fittings-Push Release: Connect

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the fitting and the tube for damage.
Remove any dirt or obstructions.
Push the tube into the fitting until it snaps into place.

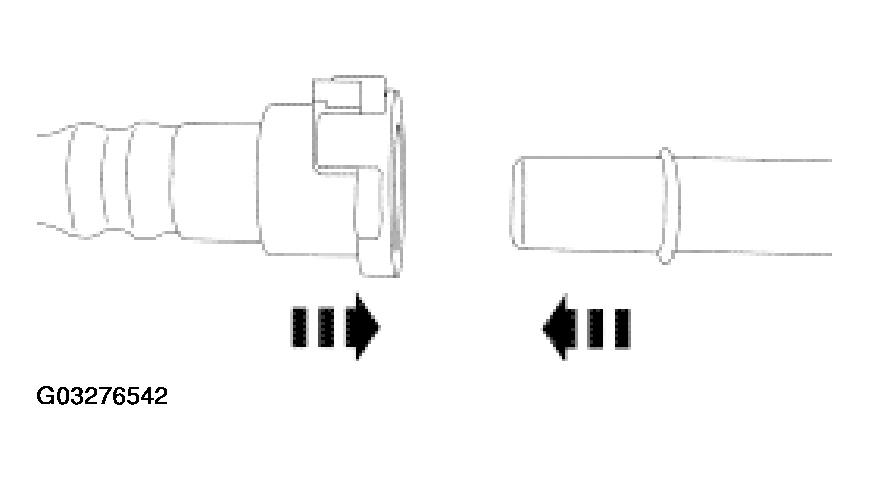

Fig 1: Pushing Tube Into Fitting Until It Snaps Into Place
Courtesy of FORD MOTOR CO.
Pull on the connection to make sure the fitting is secure.

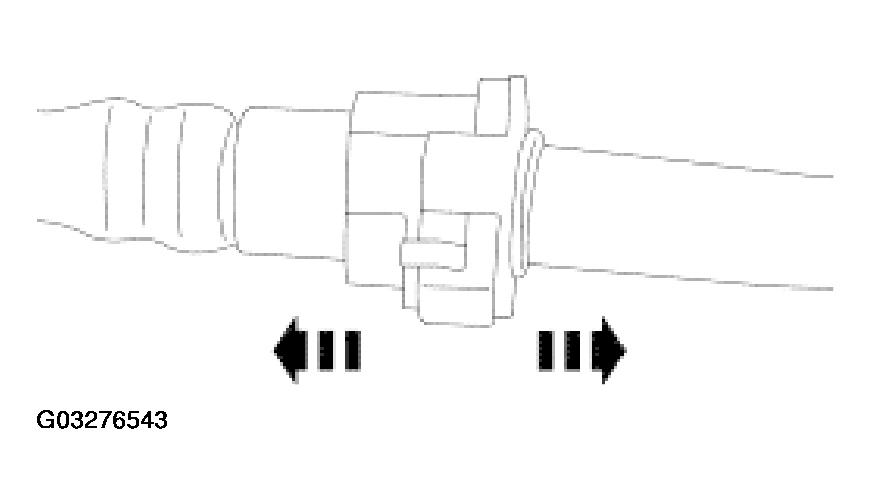

Fig 2: Pulling On Connection To Make Sure Fitting Is Secure
Courtesy of FORD MOTOR CO.
