Fuel Line Fittings-Push Connect: Connect
WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

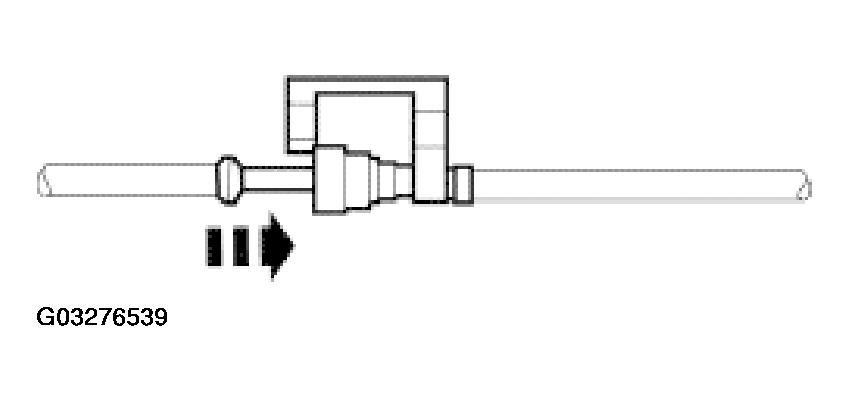

- Align the tube to the fitting and push until you hear a click.
Courtesy of FORD MOTOR CO.
- Pull on the fitting to make sure it is fully engaged, then install the safety clip.
Courtesy of FORD MOTOR CO.
