Input Shaft Bearing: Assembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Using the special tools, press a new bearing on the input shaft.

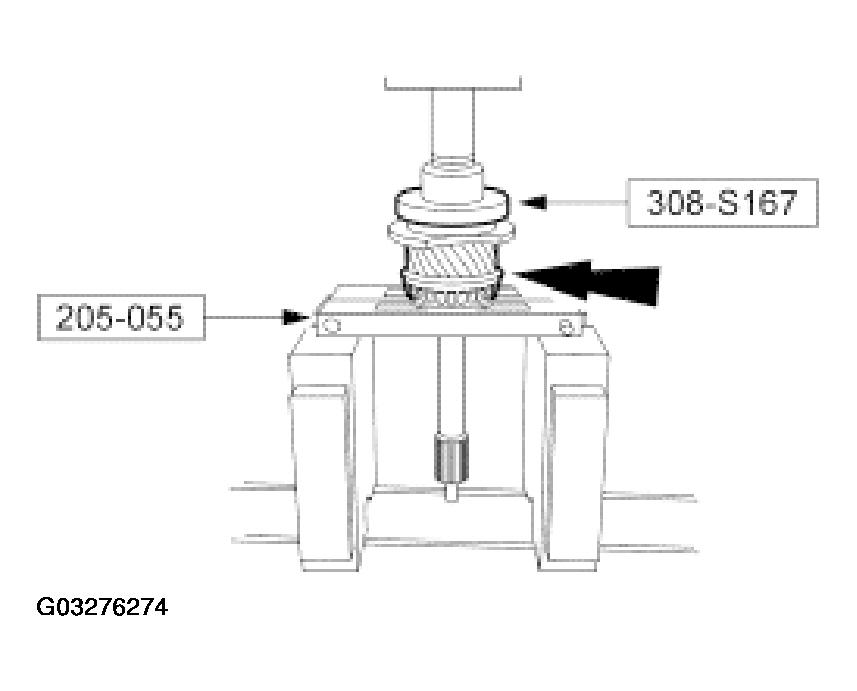

Fig 1: Pressing Bearing On Input Shaft
Courtesy of FORD MOTOR CO.
Install the front bearing oil scoop ring.
- A click should be felt as the scoop ring notches align with the input shaft oil holes.

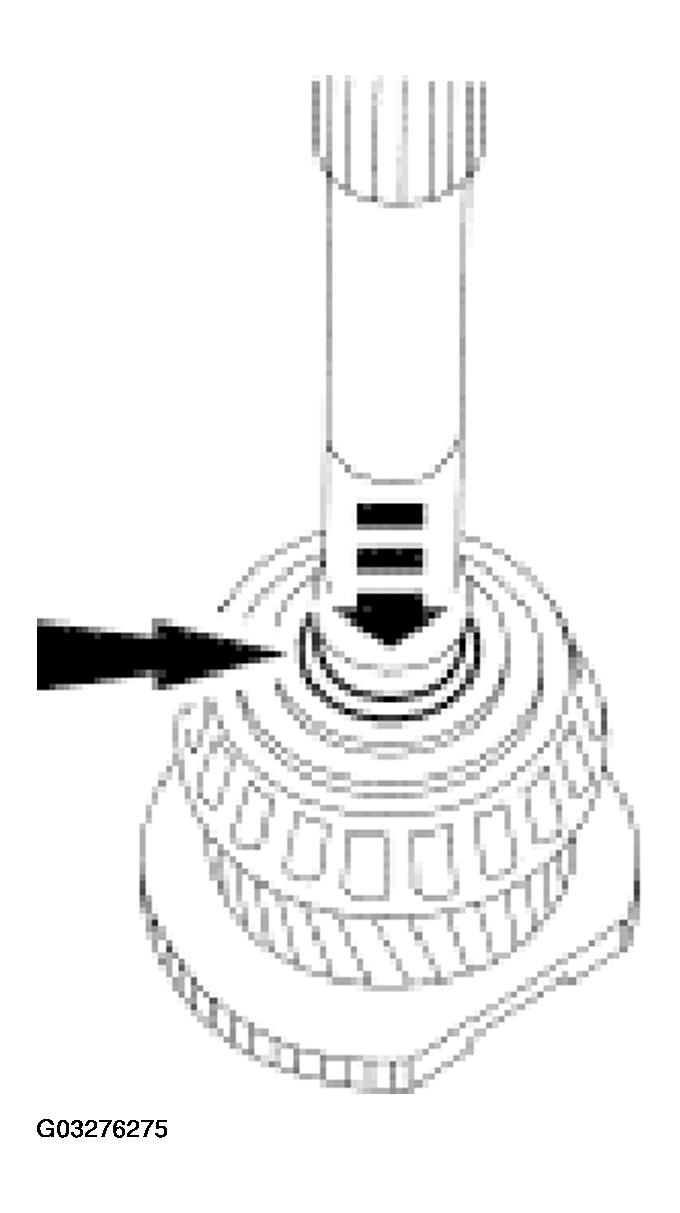

  Fig 2: Installing Front Bearing Oil Scoop Ring
  Courtesy of FORD MOTOR CO.
