Output Shaft Speed (OSS) Sensor: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect and lubricate O-ring with petroleum jelly.
    1. Install the OSS sensor into the transmission.
    2. Tighten OSS sensor screw.

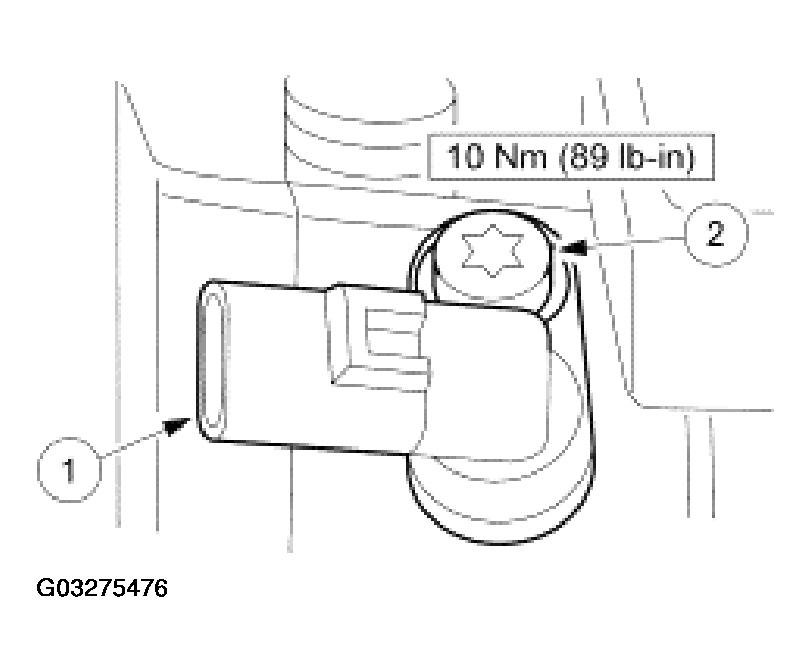

      Fig 1: Tightening OSS Sensor Screw
      G03275476Courtesy of FORD MOTOR CO.
  2. Connect OSS sensor electrical connector.

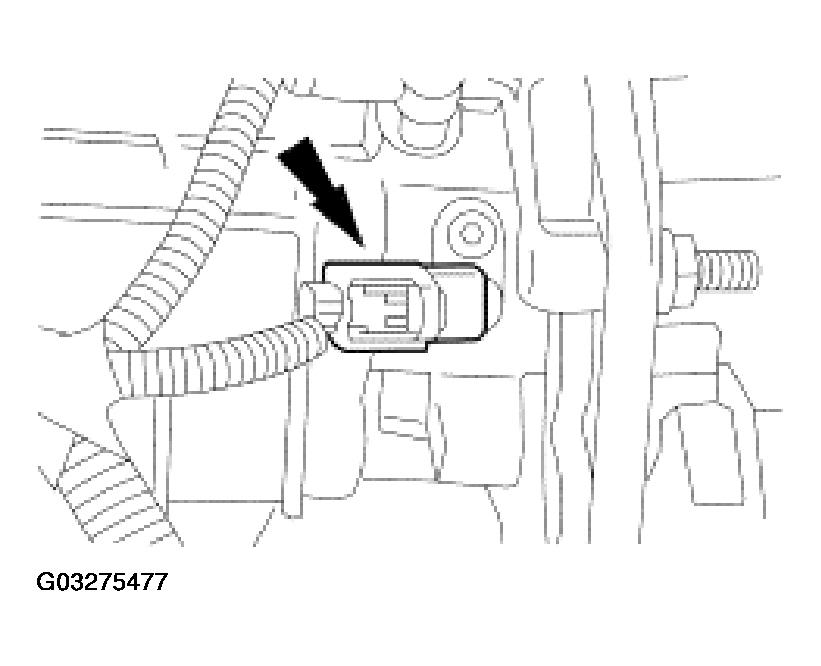

    Fig 2: Connecting OSS Sensor Electrical Connector
    G03275477Courtesy of FORD MOTOR CO.
