Digital Transmission Range (TR) Sensor: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Install the digital TR sensor and loosely install the screws.

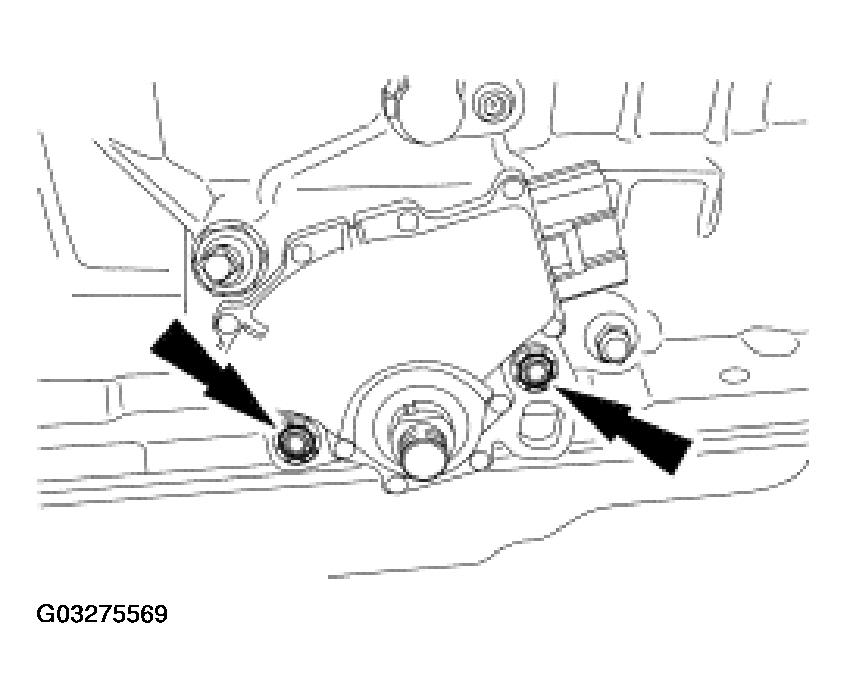

Fig 1: Installing Digital TR Sensor
Courtesy of FORD MOTOR CO.

CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

NOTE: The manual lever must be in the NEUTRAL position.

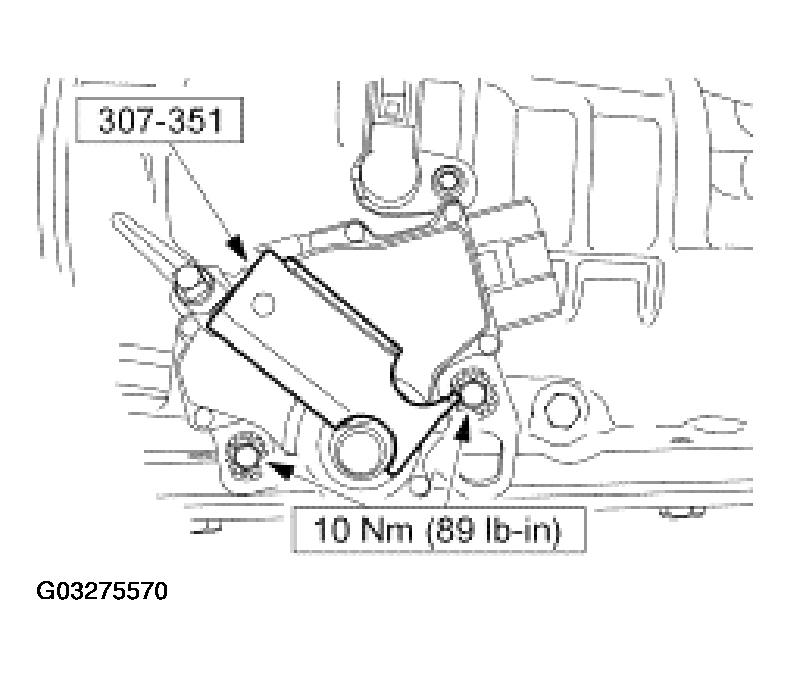

Fig 2: Aligning/Tightening Digital TR Sensor

Courtesy of FORD MOTOR CO.

Using the special tool, align the digital TR sensor and tighten screws in an alternating sequence.
Install the manual control outer lever and nut.

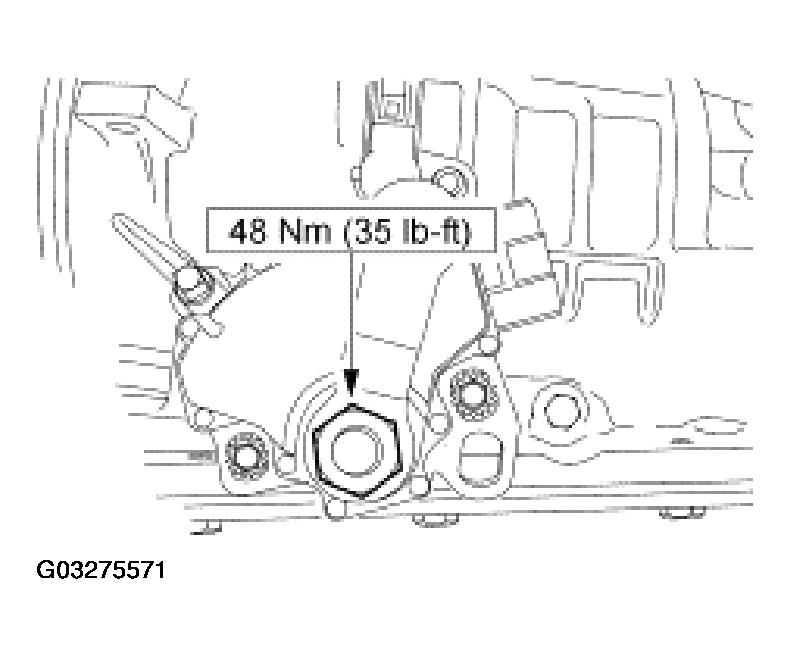

Fig 3: Installing Manual Control Outer Lever
Courtesy of FORD MOTOR CO.
Connect the digital transmission range (TR) sensor electrical connector.

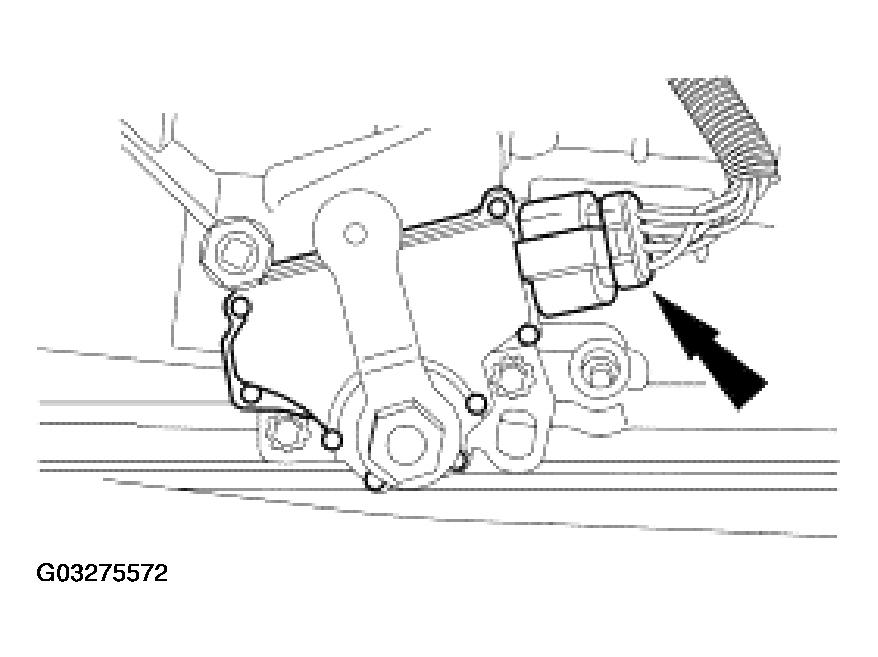

Fig 4: Connecting Digital Transmission Range (TR) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the shift cable to the manual control lever.

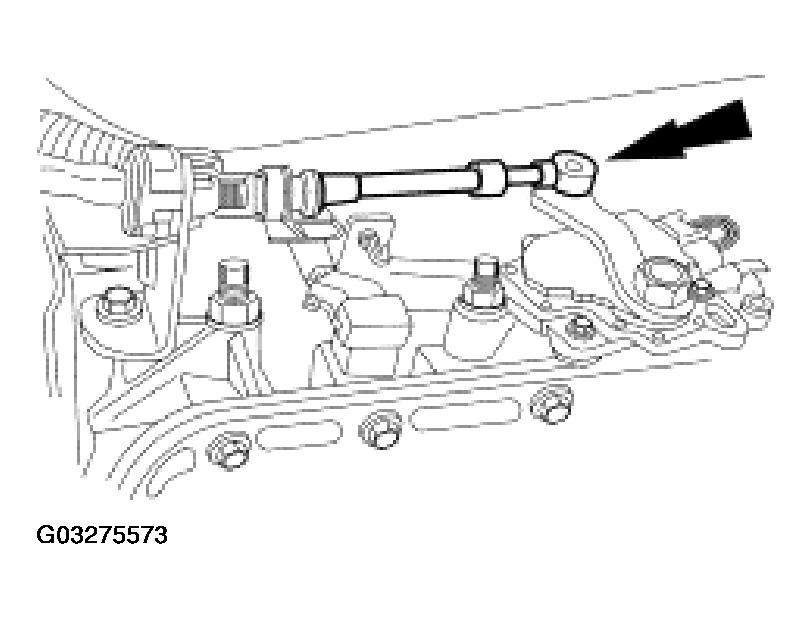

Fig 5: Connecting Shift Cable To Manual Control Lever
Courtesy of FORD MOTOR CO.
Verify that the shift cable is adjusted correctly. For additional information, refer to TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
