Forward Clutch: Material

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL ITEM SPECIFICATION

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V

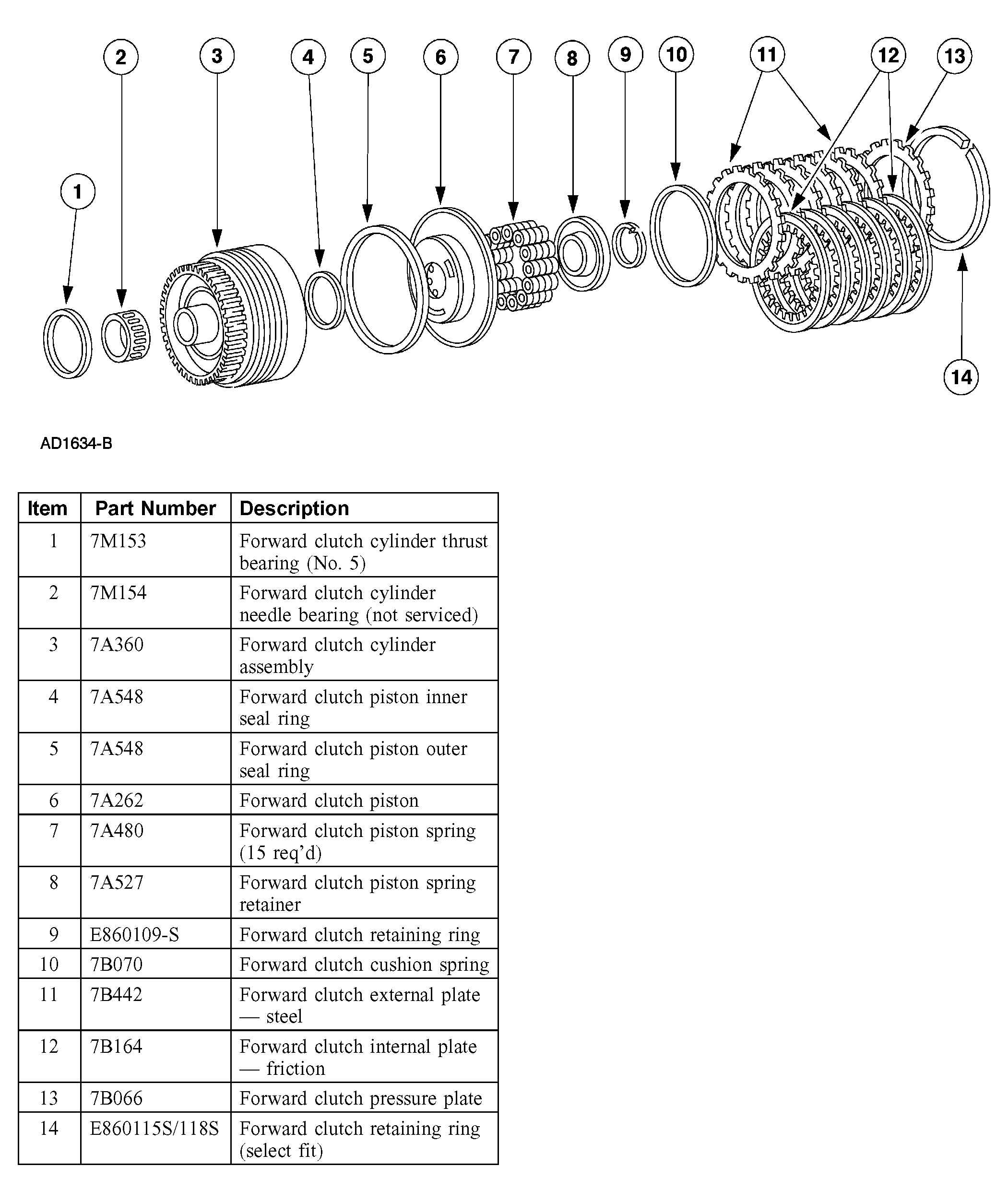

Fig 1: Exploded View Of Forward Clutch Assembly
G03975348Courtesy of FORD MOTOR CO.
