Extension Housing: Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Install the extension housing.

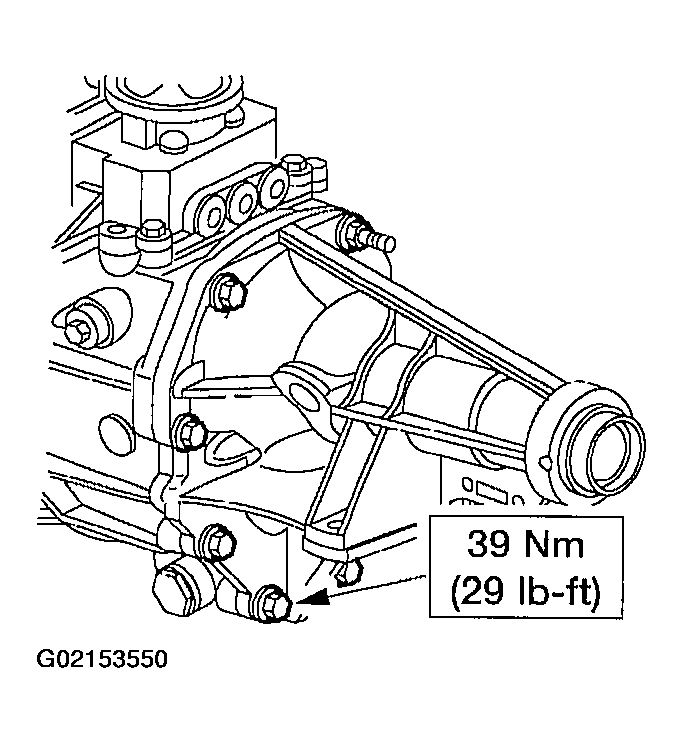

Fig 1: Installing Extension Housing
Courtesy of FORD MOTOR CO.
Install the transmission mount.
1. Position the exhaust bracket.
2. Install the bolts.

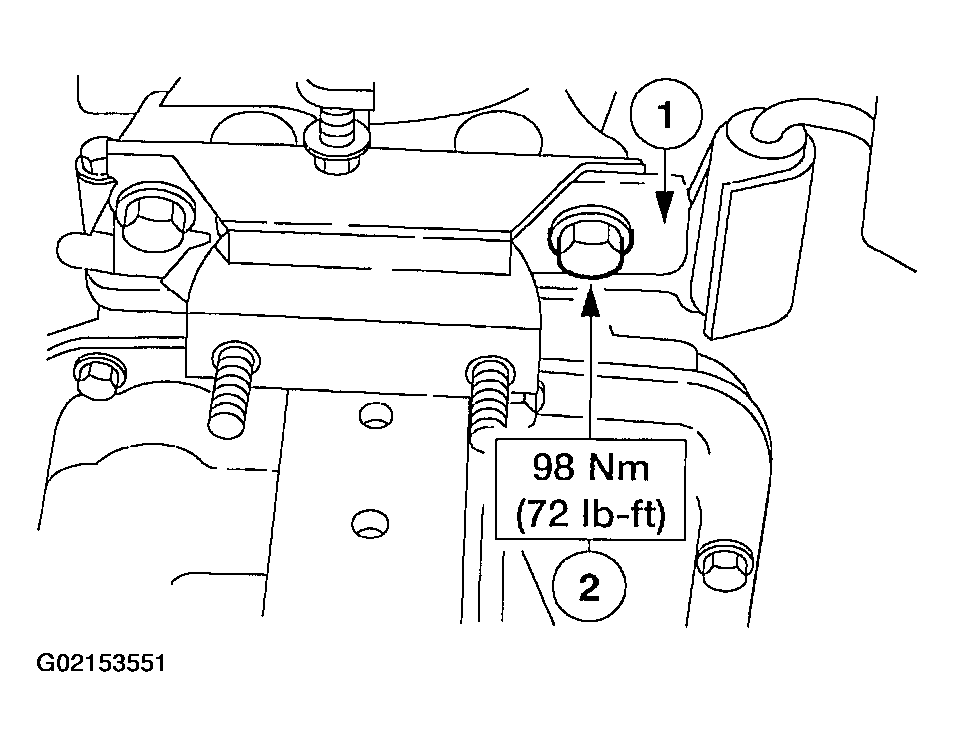

Fig 2: Installing Transmission Mount
Courtesy of FORD MOTOR CO.
Position the crossmember and install the six bolts and nuts.

Fig 3: Installing Crossmember
Courtesy of FORD MOTOR CO.
Remove High-Lift Transmission Jack.
Install the nuts.

Fig 4: Installing Transmission Insulator Nuts
Courtesy of FORD MOTOR CO.
Install the transfer case, if equipped. For additional information, refer to TRANSFER CASE - AUTOMATIC SHIFT .

NOTE: To maintain initial driveshaft balance, align the index marks on the driveshaft and the rear axle pinion flange made during removal.

Install the rear driveshaft. For additional information, refer to DRIVE SHAFTS .
Install the drain plug.

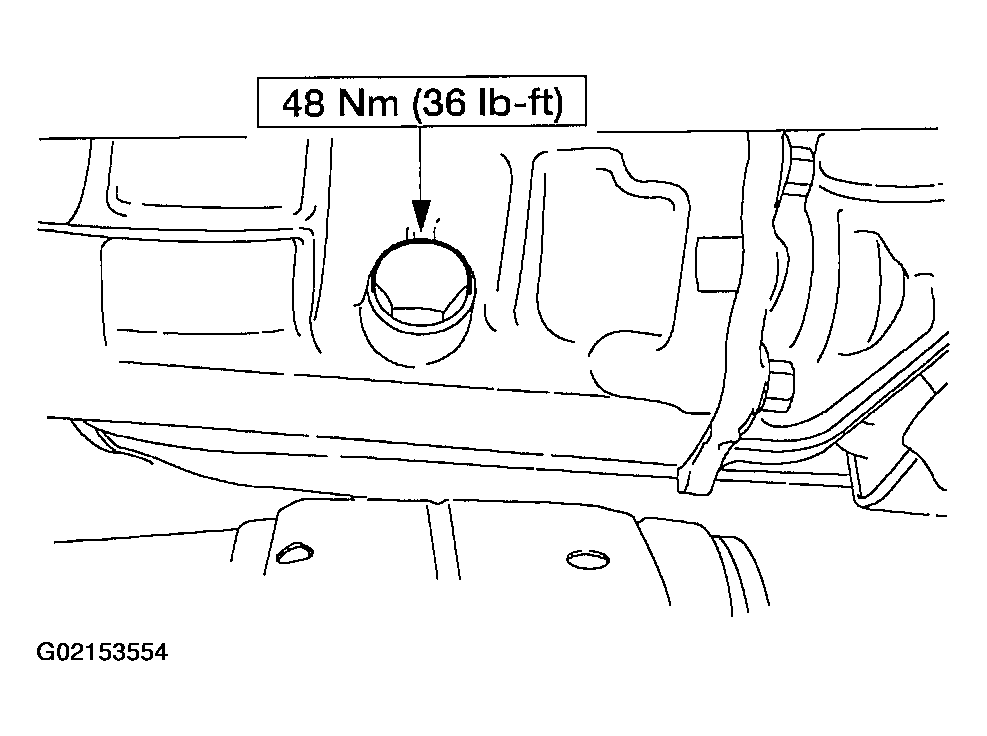

Fig 5: Installing Drain Plug
Courtesy of FORD MOTOR CO.
Refill the transmission with the specified amount of fluid.
- Use MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON®.
Lower the vehicle.
