Hydraulic Control Unit: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plaster surface, immediately wash it with water.

Disconnect the battery ground cable.
Disconnect the electrical connector by lifting up on the release tab.

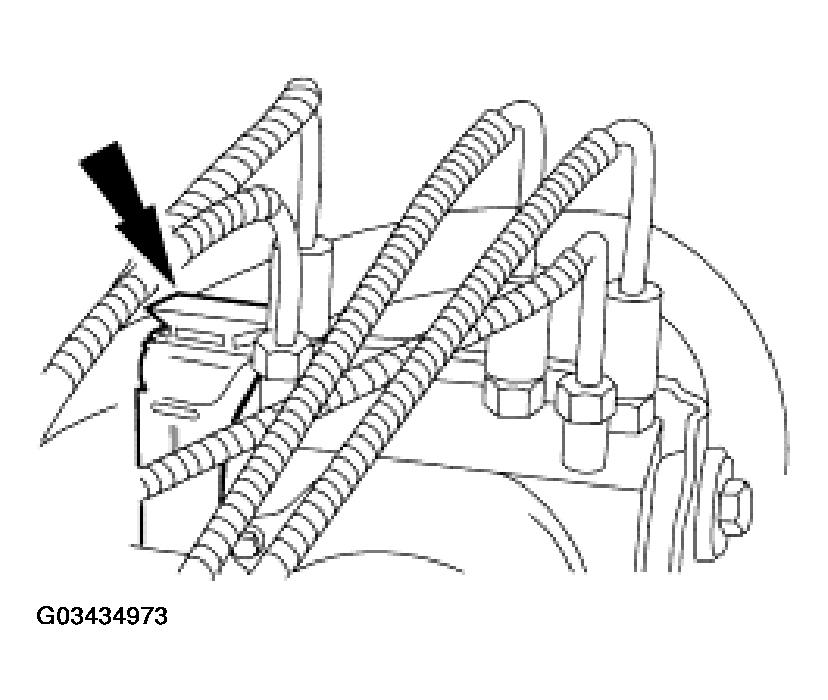

Fig 1: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the brake lines from the Hydraulic Control Unit (HCU).

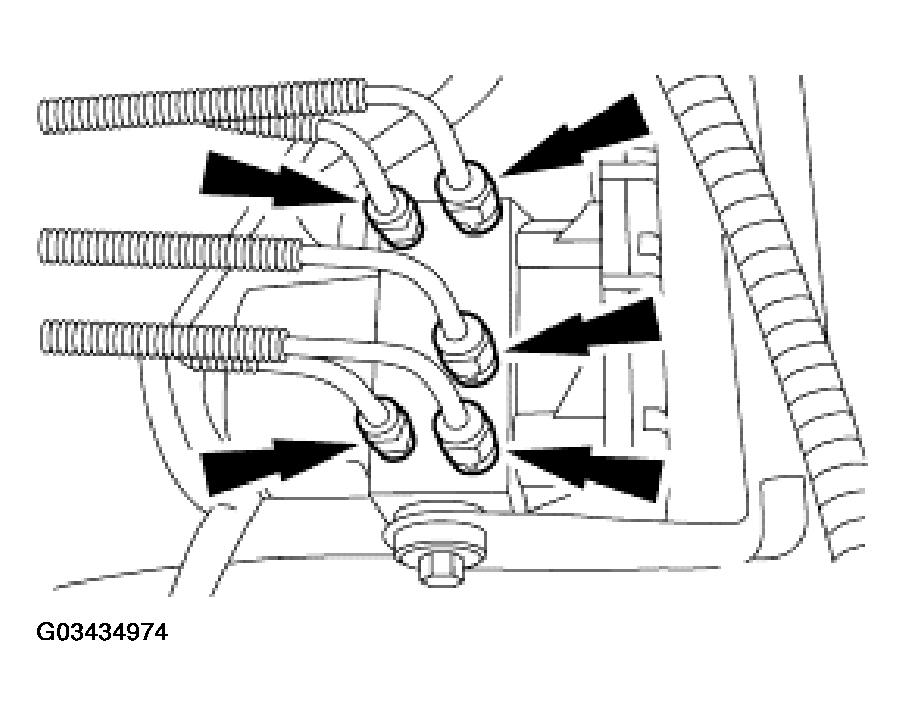

Fig 2: Disconnecting Brake Lines From HCU
Courtesy of FORD MOTOR CO.
Remove the HCU.
1. Remove the bolts.
2. Remove the HCU.

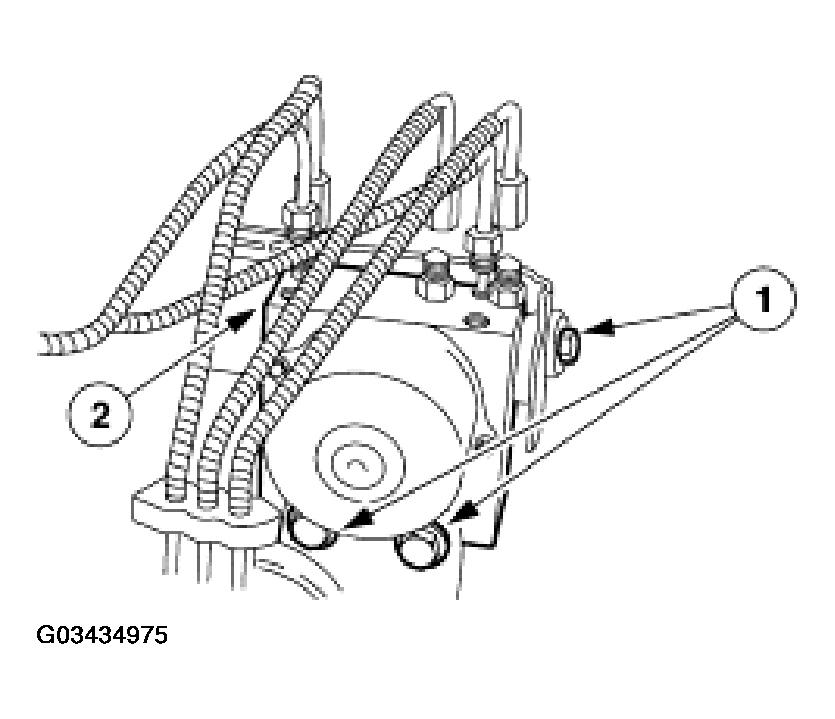

Fig 3: Removing HCU
Courtesy of FORD MOTOR CO.
If necessary, remove the anti-lock brake control module.
