Steering Column: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the steering column and loosely install the steering column support bolt. Install and tighten the nuts to specification.

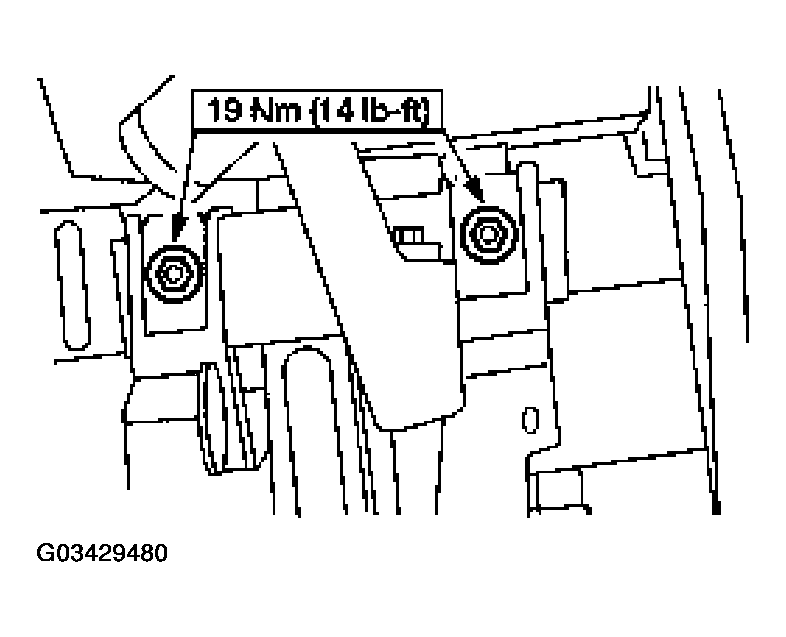

    Fig 1: Installing Steering Column And Installing Steering Column Support Bolt
    G03429480Courtesy of FORD MOTOR CO.
  2. Tighten the steering column support bolt.
    Fig 2: Tightening Steering Column Support Bolt
    G03429481Courtesy of FORD MOTOR CO.
  3. Connect the steering column shaft to the flexible coupling and install a new the pinch bolt/nut.
    Fig 3: Connecting Steering Column Shaft To Flexible Coupling And Installing Pinch Bolt/Nut
    G03429482Courtesy of FORD MOTOR CO.
  4. Position the boot.

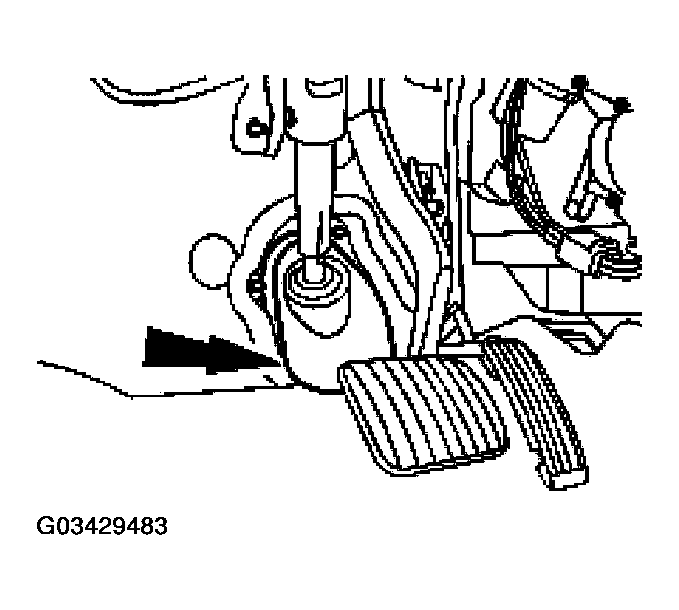

    Fig 4: Positioning Boot
    G03429483Courtesy of FORD MOTOR CO.
  5. Connect the electrical connectors.

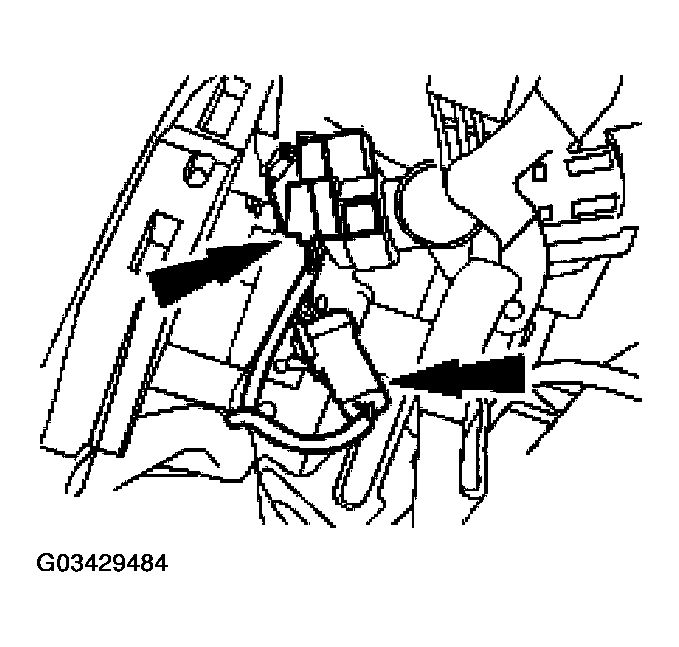

    Fig 5: Connecting Electrical Connectors
    G03429484Courtesy of FORD MOTOR CO.
  6. If equipped, connect the selector lever shift cable to the lever and bracket.

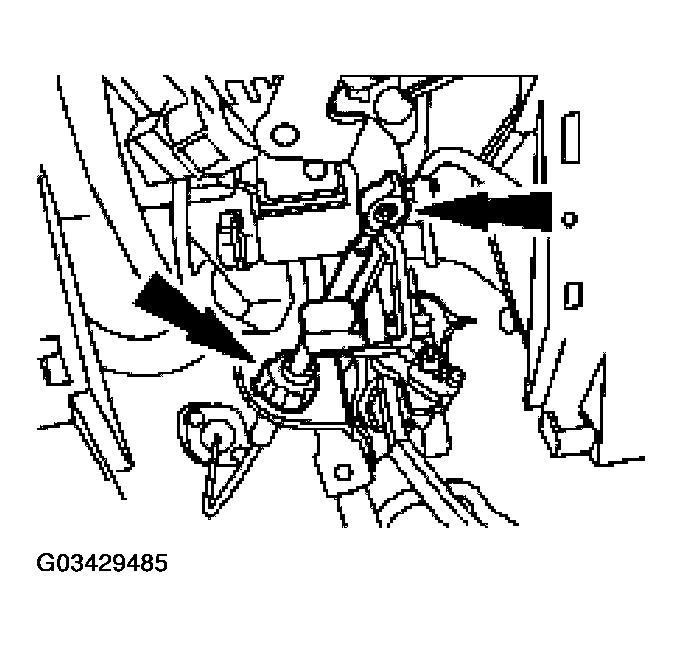

    Fig 6: Connecting Selector Lever Shift Cable To Lever And Bracket
    G03429485Courtesy of FORD MOTOR CO.
  7. Connect the multifunction switch and headlamp switch electrical connectors.

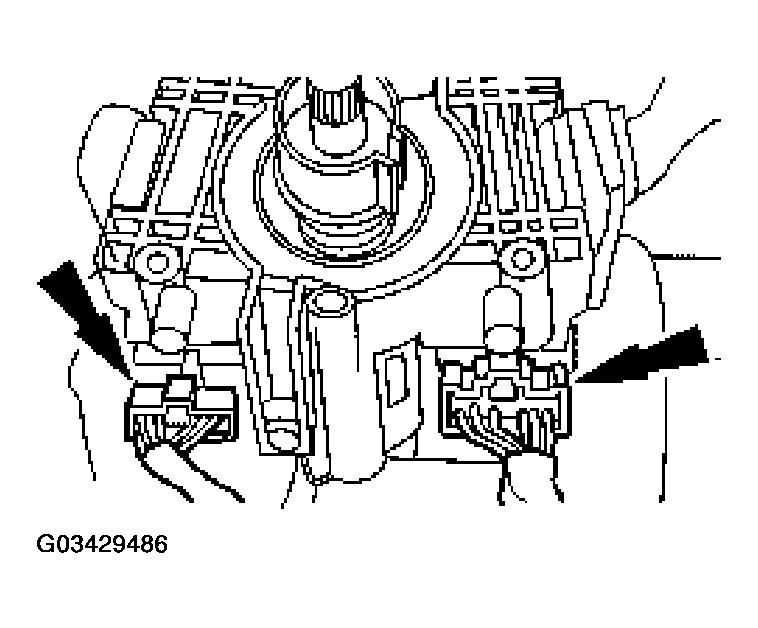

    Fig 7: Connecting Multifunction Switch And Headlamp Switch Electrical Connectors
    G03429486Courtesy of FORD MOTOR CO.
  8. Secure the harness to the gearshift housing.

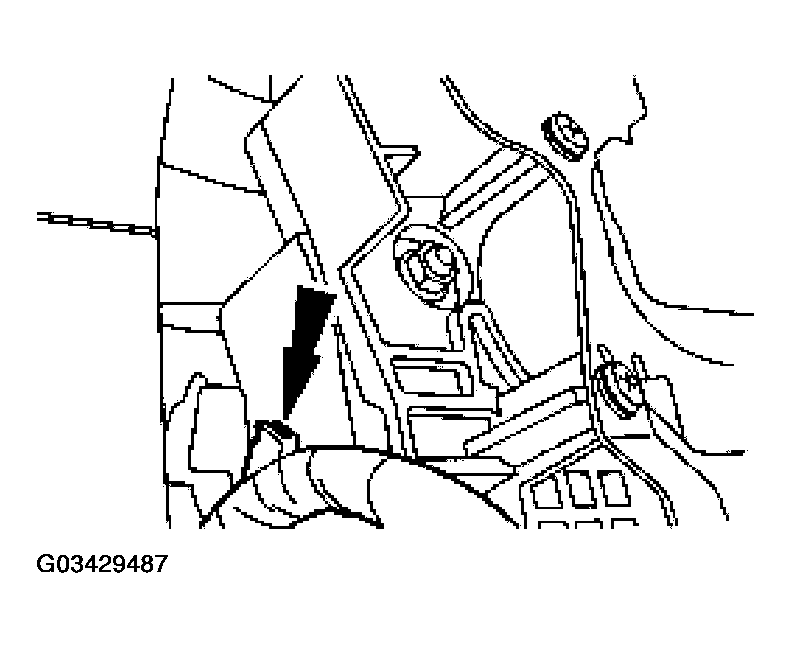

    Fig 8: Securing Harness To Gearshift Housing
    G03429487Courtesy of FORD MOTOR CO.
  9. Connect the passive anti-theft system (PATS) transceiver module electrical connector and install the pin-type retainer.

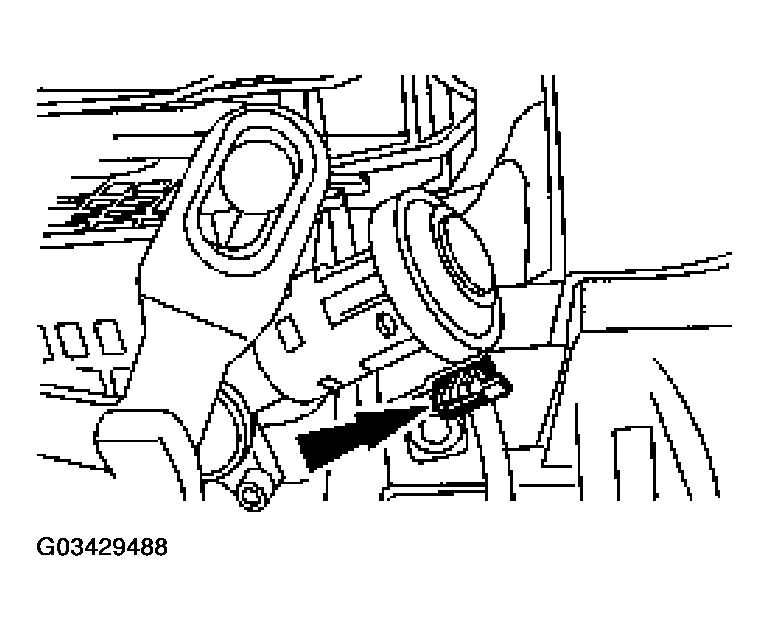

    Fig 9: Connecting Passive Anti-Theft System (PATS) Transceiver Module Electrical Connector
    G03429488Courtesy of FORD MOTOR CO.

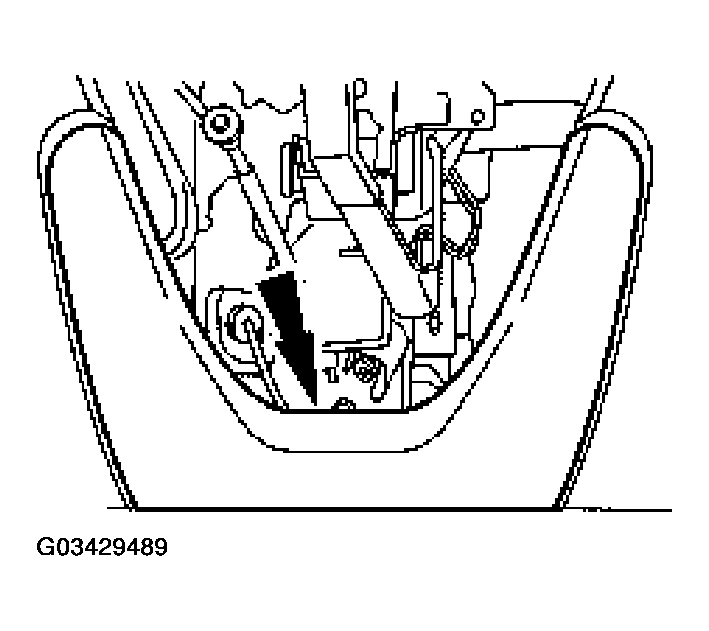

  10. Install the trim panel.
    Fig 10: Installing Trim Panel
    G03429489Courtesy of FORD MOTOR CO.
  11. Install the air bag sliding contact. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
