Front Wheel Speed Sensor Ring: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

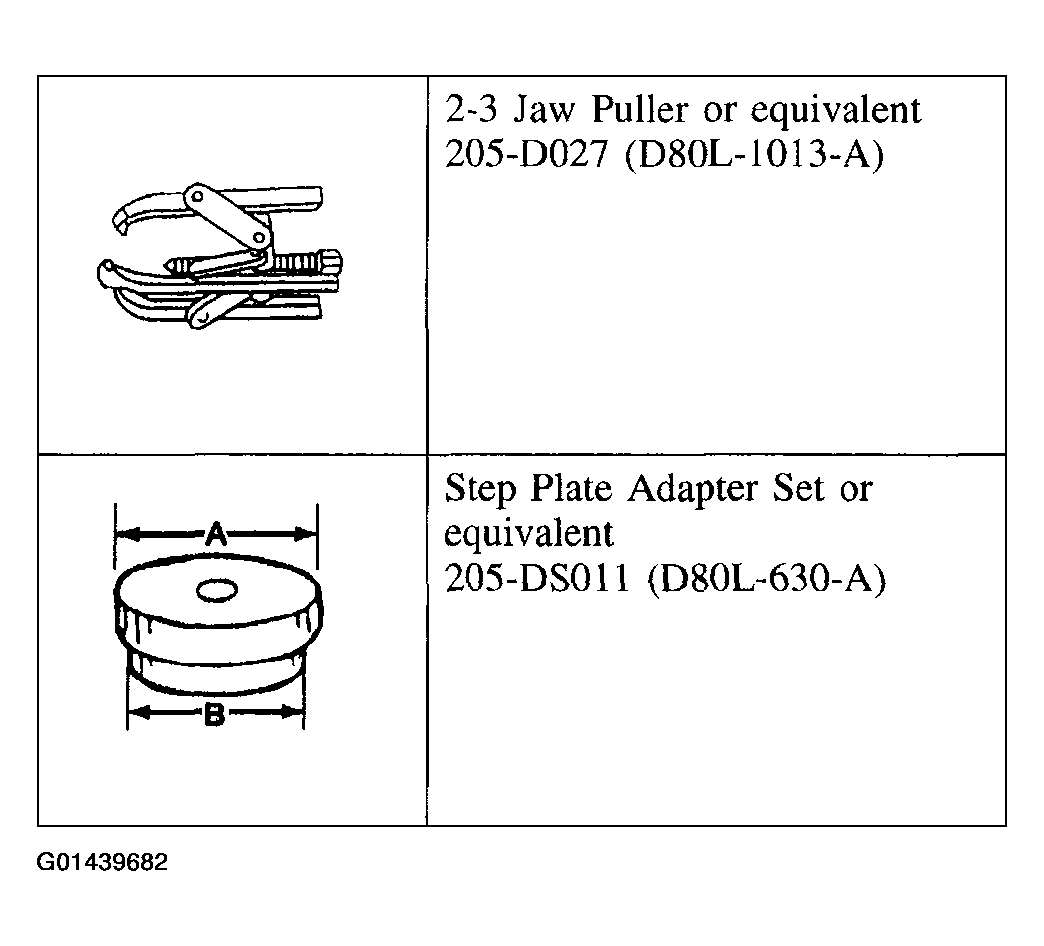

Fig 1: Identifying Special Tool - Front Wheel Speed Sensor Ring

Courtesy of FORD MOTOR CO.

Remove the front disc brake rotor; refer to DISC & DRUM .

CAUTION: Discard the front brake anti-lock sensor indicator.

Fig 2: Removing Front Brake Anti-Lock Sensor Indicator

Courtesy of FORD MOTOR CO.

Use the special tools to remove the front brake anti-lock sensor indicator (2C182).
