Removal & Installation: Cable/Bracket: Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: If equipped with air suspension, reactivate the system by turning on the air suspension switch.

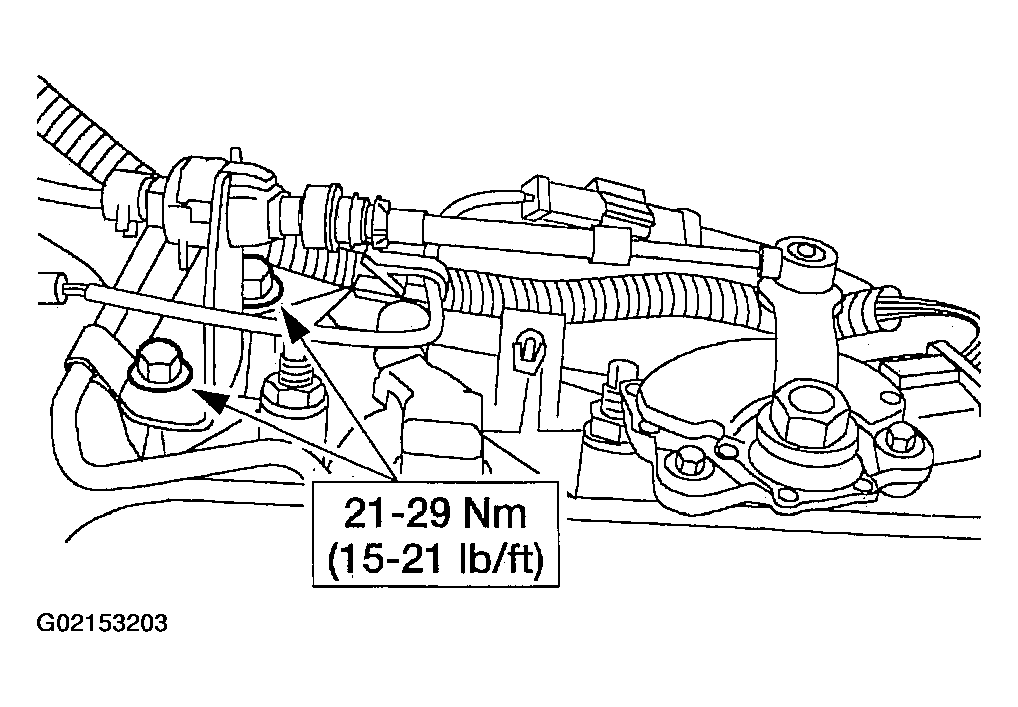

    Fig 1: Adjusting Transmission Shift Cable
    G02153203Courtesy of FORD MOTOR CO.
  1. Follow the removal procedure in reverse order.
    • Move manual lever into the overdrive (O/D) range.
    • Adjust the transmission shift cable; refer to CABLE/BRACKET ADJUSTMENT .
