Front Disc Brake: Material

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Material Specification - Front Disc Brake

Courtesy of FORD MOTOR CO.

Remove the components in the order indicated in Fig 2.

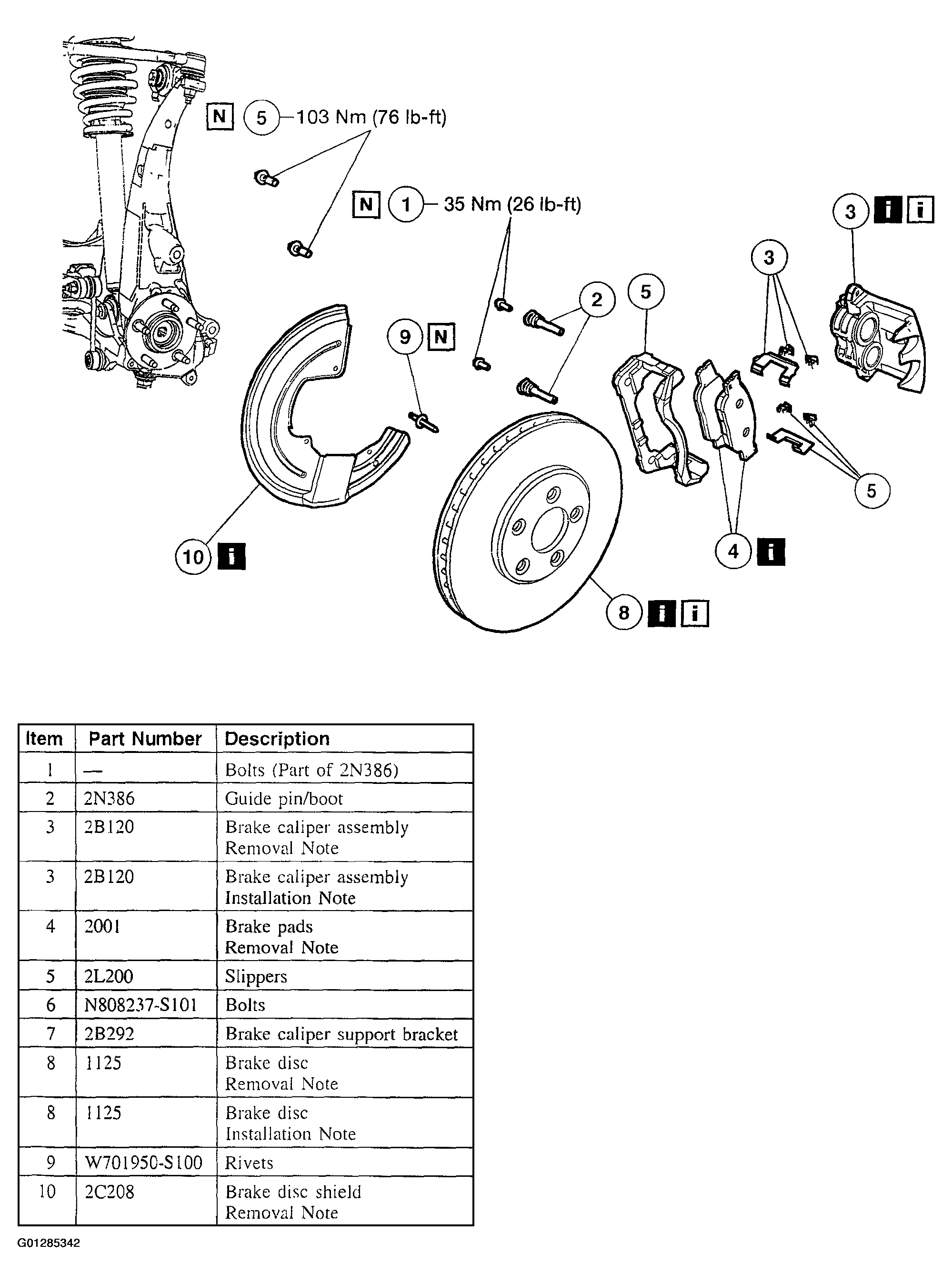

Fig 2: Identifying Removing Sequence Of Front Disc Brake
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
