Removal And Installation: Door: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

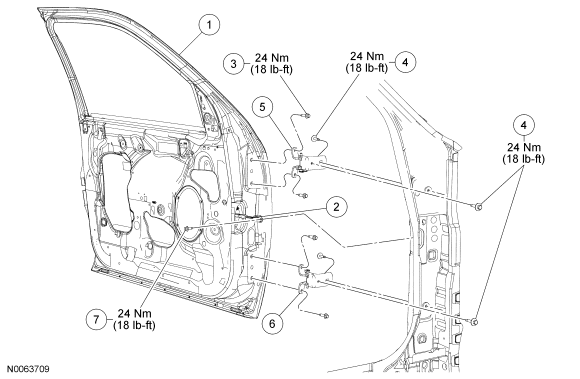

| Item |
Part Number |
Description |
| 1 |
77820125 |
Door |
| 2 |
7823552 |
Door check |
| 3 |
W500223-S |
Hinge-to-door bolt (4 required) |
| 4 |
W709910-S |
Hinge-to-body bolts (4 required) |
| 5 |
7822801 |
Upper door hinge |
| 6 |
7822807 |
Lower door hinge |
| 7 |
W709072 |
Door check-to-body bolt |
