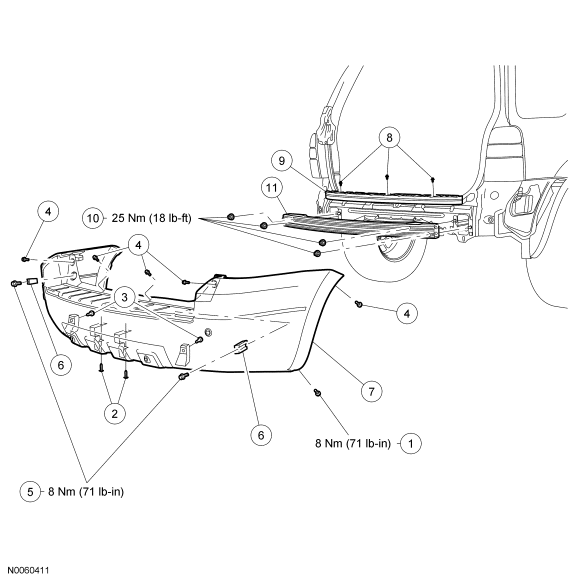

Bumper - Exploded View, Rear
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W706607 | Rear bumper cover-to-splash shield bolt (2 required) |
| 2 | W708530-S | Rear bumper cover center pin-type retainers (2 required) |
| 3 | W706713-S | Rear bumper cover outer pin-type retainers (2 required) |
| 4 | W706607-S900 | Rear bumper cover screws (6 required) |
| 5 | - | Liftgate alignment bumper bolts (2 required) |
| 6 | - | Liftgate alignment bumpers |
| 7 | 17775 | Rear bumper cover |
| 8 | W706713-S | Rear bumper isolator rivets (3 required) |
| 9 | 17E899 | Rear bumper isolator |
| 10 | W707144-S | Rear bumper nuts (4 required) |
| 11 | 17D942 | Rear bumper |
- For additional information, refer to the following procedures.
