Suction Accumulator: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item |
Specification |
PAG Refrigerant Compressor Oil (R-134a Systems)
YN-12-D |
WSH-M1C231-B |
Courtesy of FORD MOTOR CO.

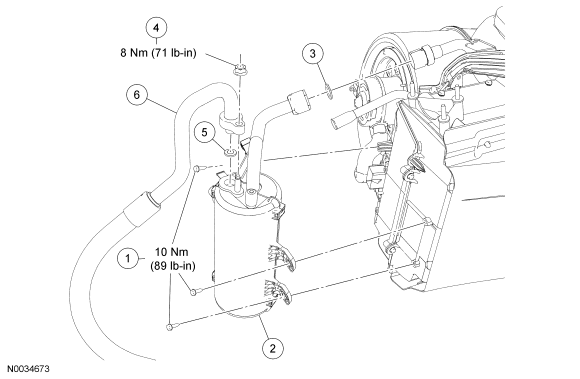

| Item |
Part Number |
Description |
| 1 |
N605894-S2 |
Screws (3 required) |
| 2 |
19C836 |
Suction accumulator |
| 3 |
- |
O-ring |
| 4 |
N804178-S |
Nut |
| 5 |
W701993-S |
O-ring |
| 6 |
19D850 |
Manifold and tube assembly |
