Wiper/Washer System

WARNING: This page is about a different car, the 1993 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

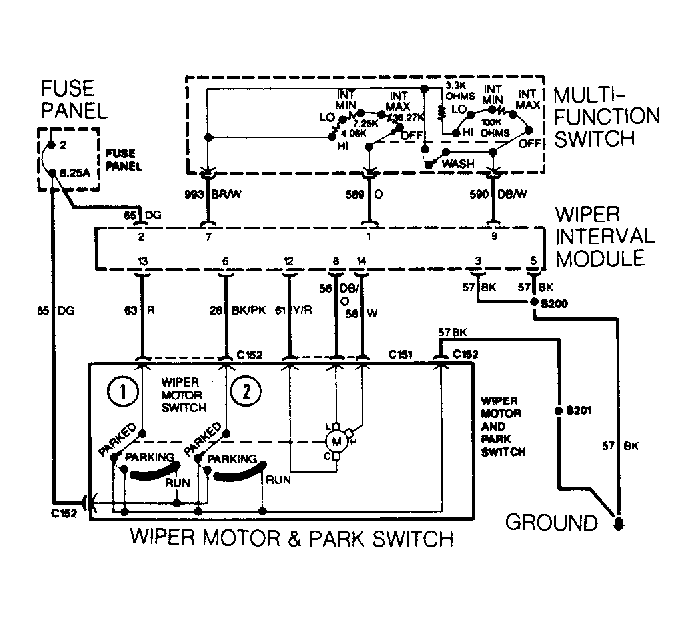

Fig 1: Wiper System Wiring Diagram
G91J09321

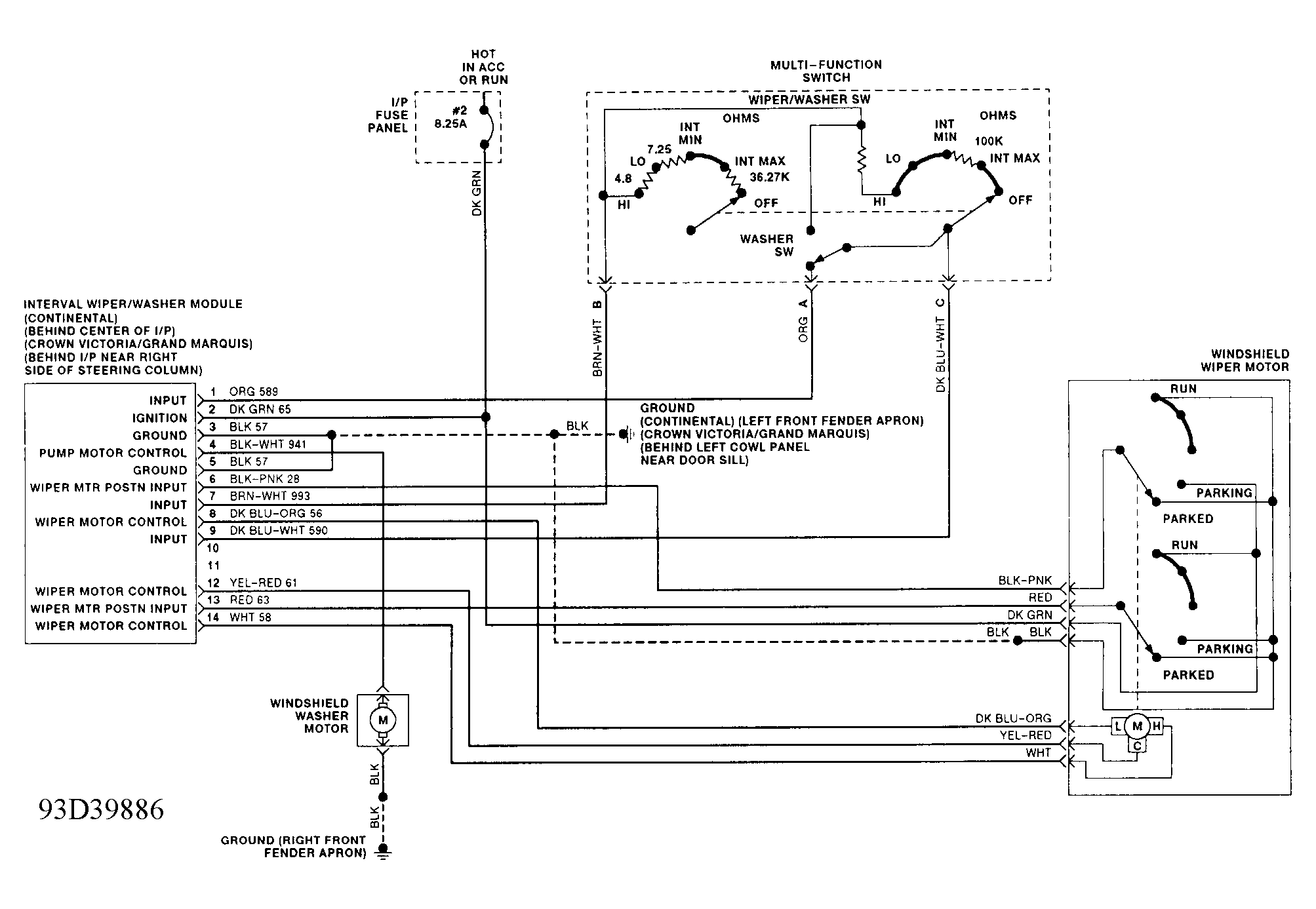

Fig 2: Front Wiper/Washer System Wiring Diagram
G93D39886
