Power Seats

WARNING: This page is about a different car, the 1993 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

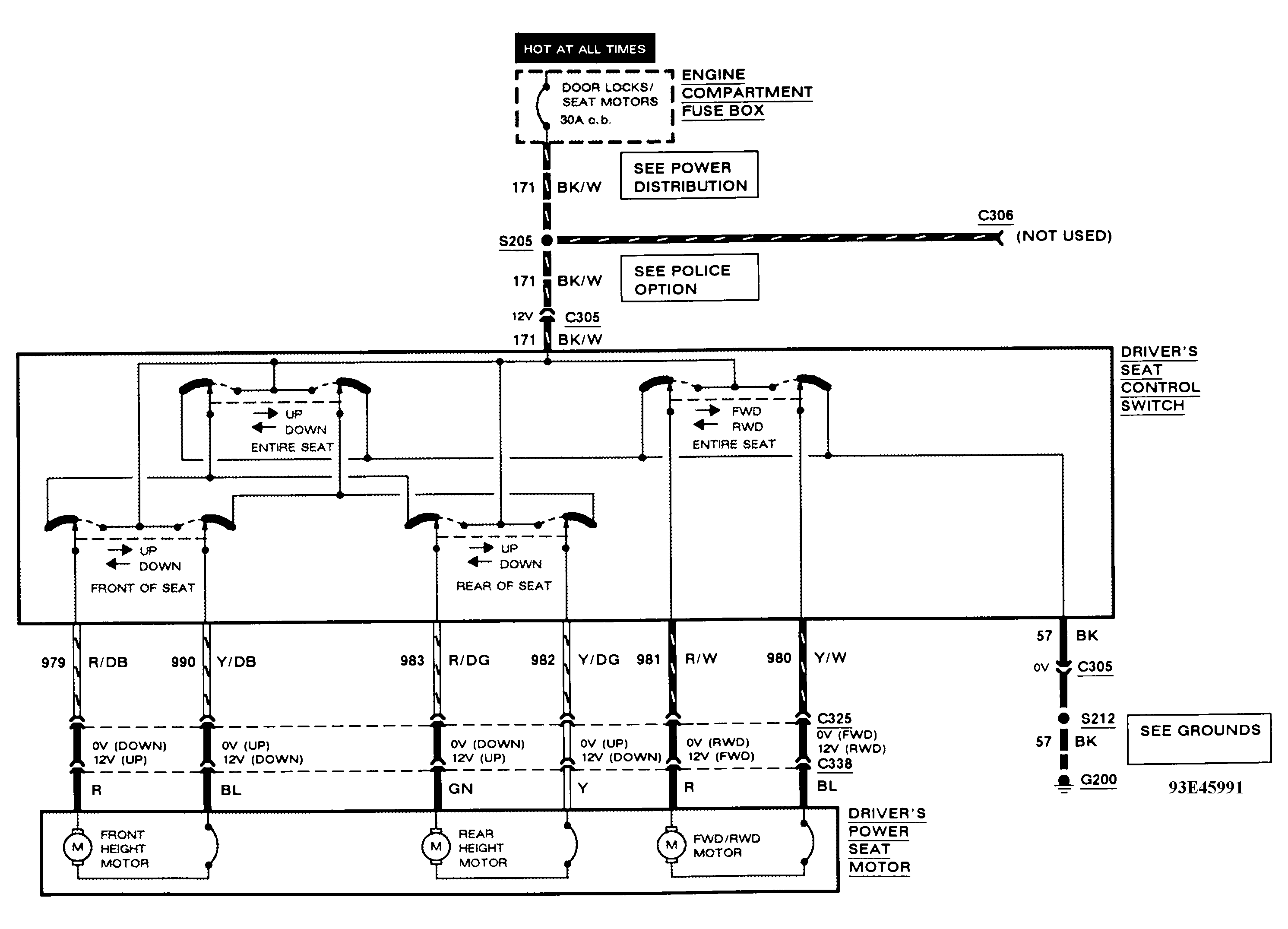

Fig 1: Power Seats (1 Of 4)

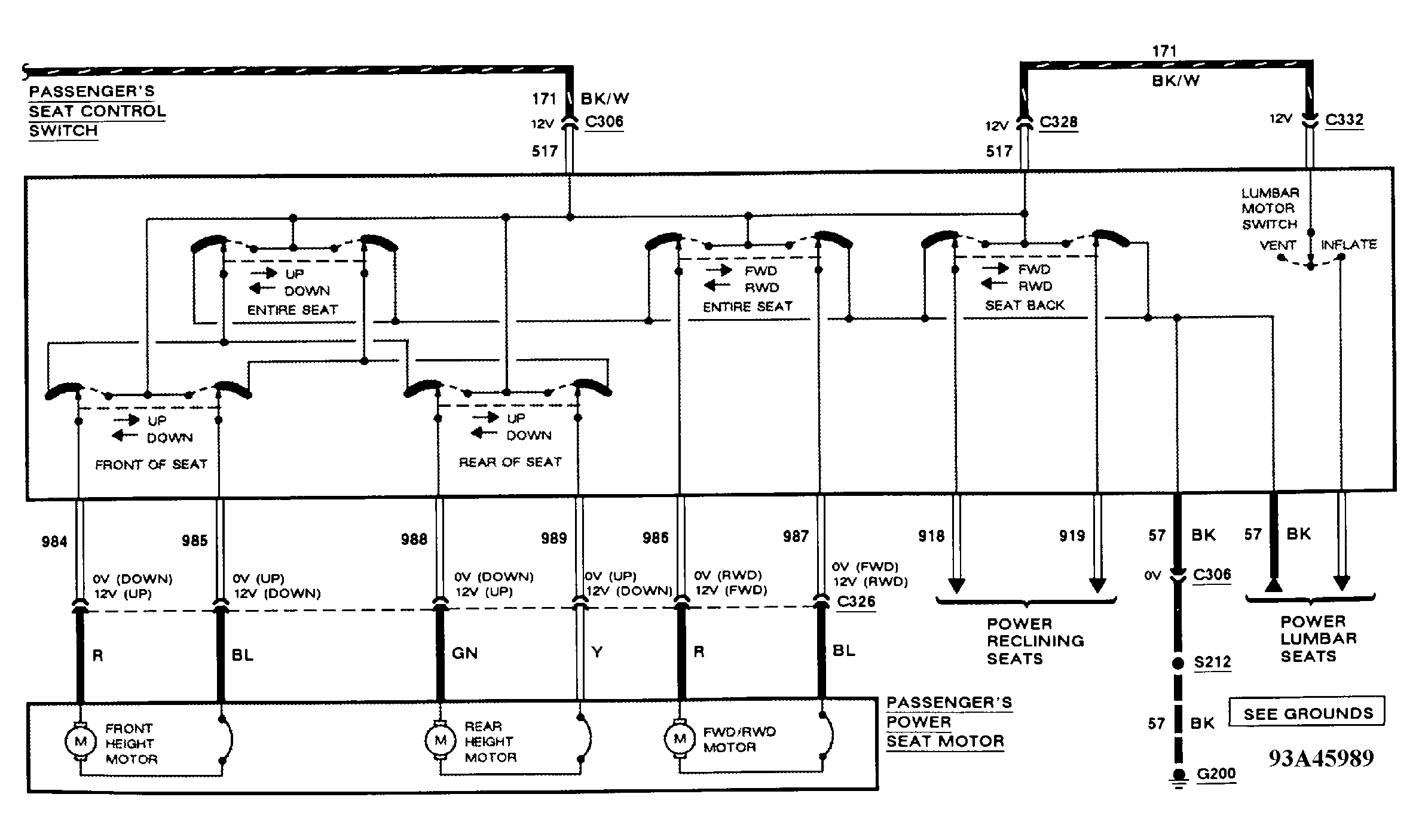

Fig 2: Power Seats (2 Of 4)

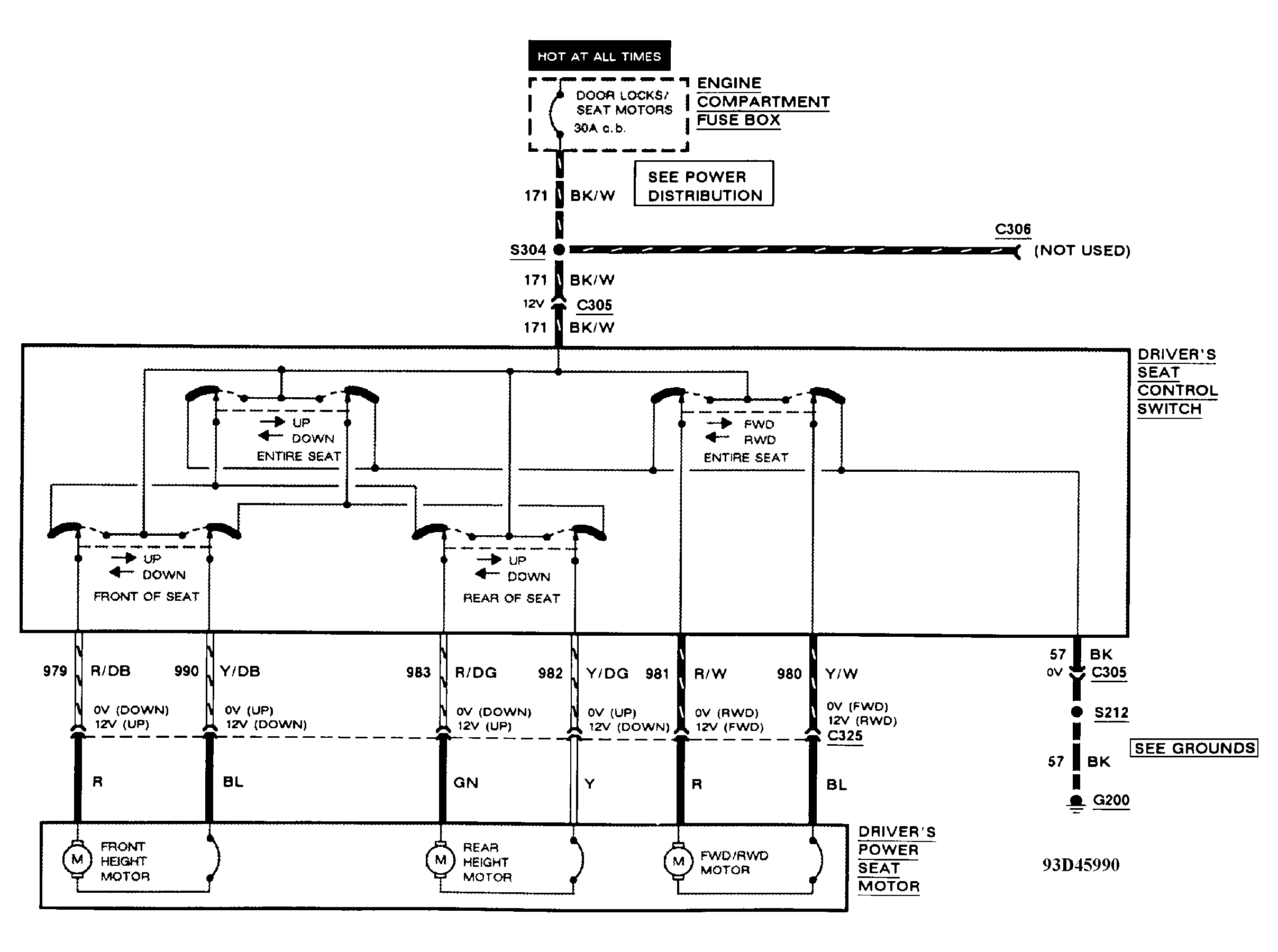

Fig 3: Power Seats (3 Of 4)

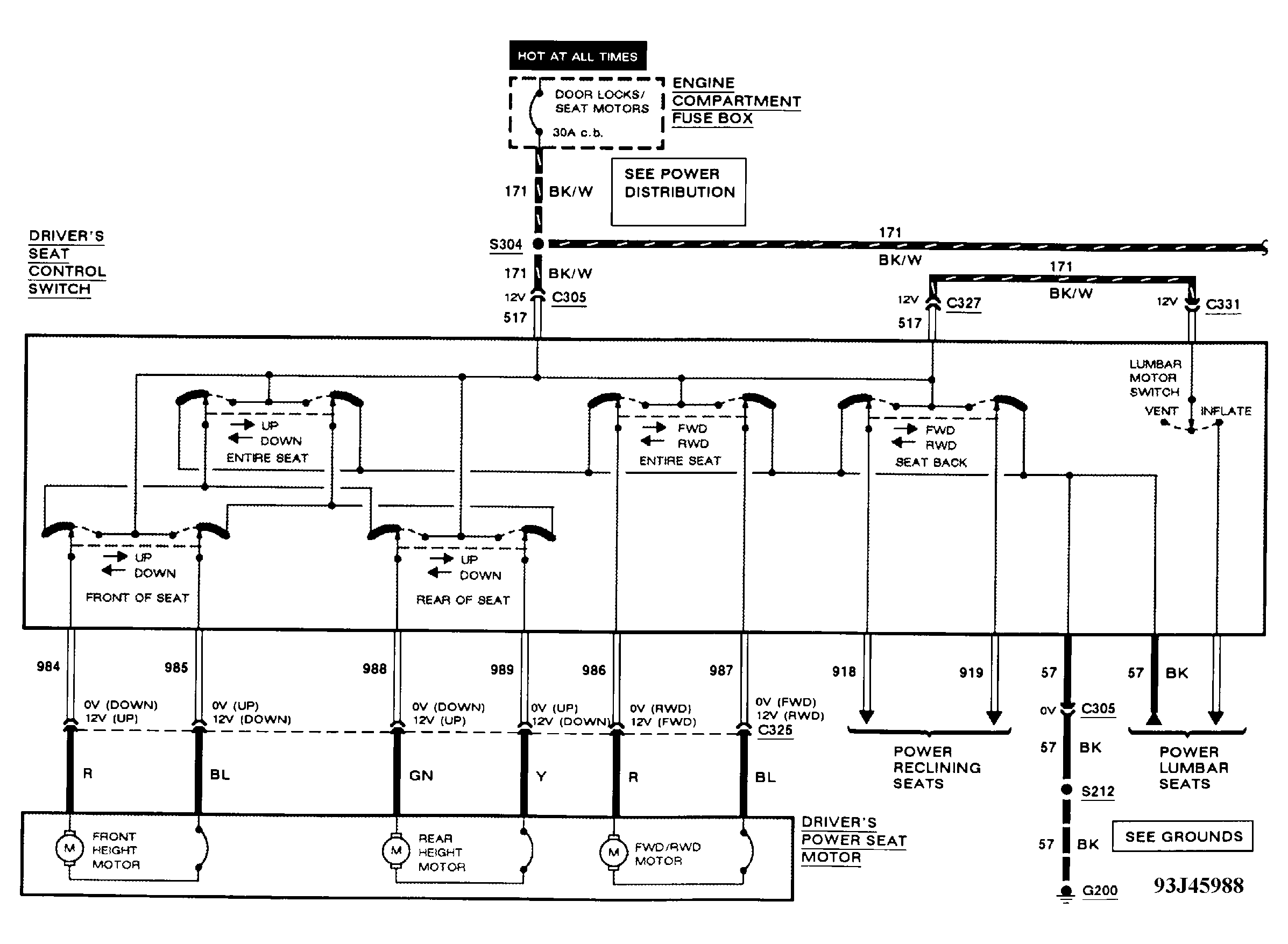

Fig 4: Power Seats (4 Of 4)

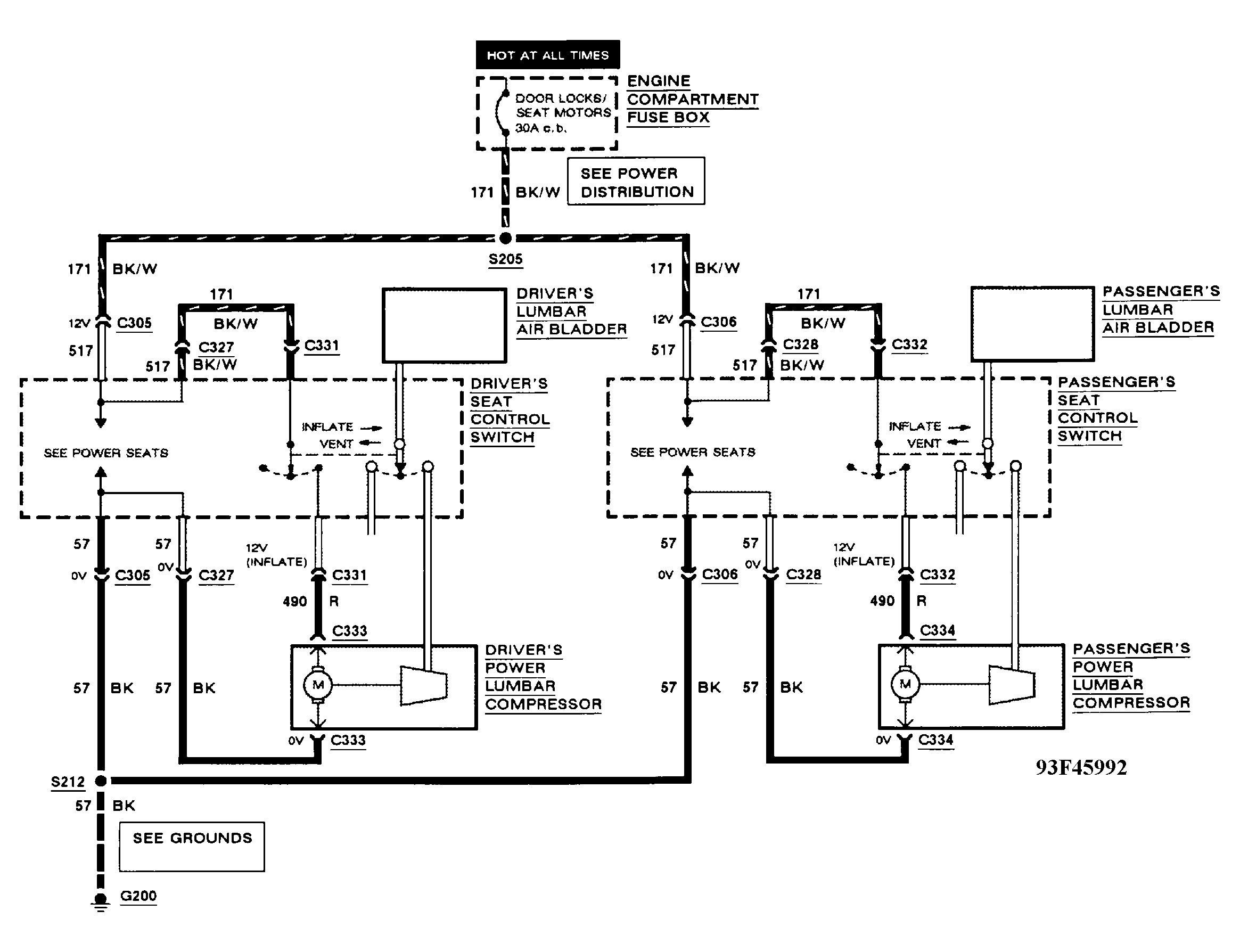

Fig 5: Lumbar Seat Wiring Diagram
