Cylinder Head

WARNING: This page is about a different car, the 2006 Mercury Milan and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

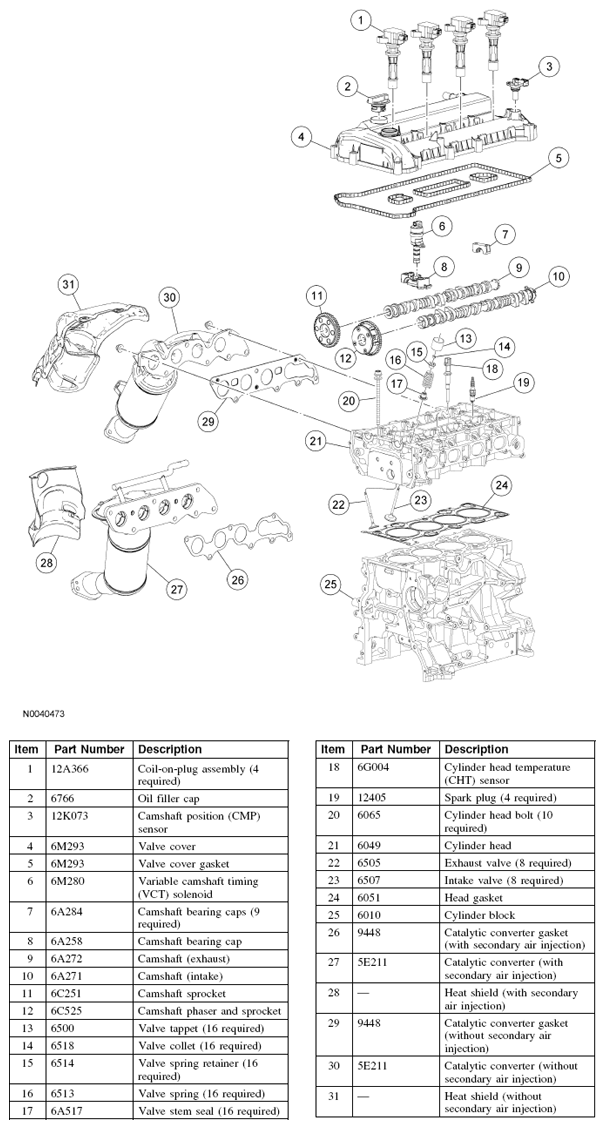

Fig 1: Identifying Cylinder Head Components
G04680391Courtesy of FORD MOTOR CO.
