Camshaft Position (CMP) Sensor: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent WSS-M2C930-A

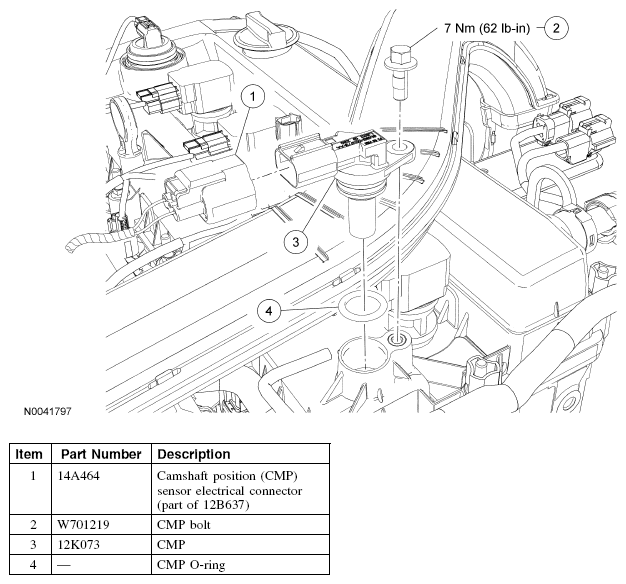

Fig 1: Identifying Camshaft Position (CMP) Sensor Components
G04681354Courtesy of FORD MOTOR CO.
