Coolant Pump: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL TABLE

Item Specification
Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color) WSS-M97B51-A1

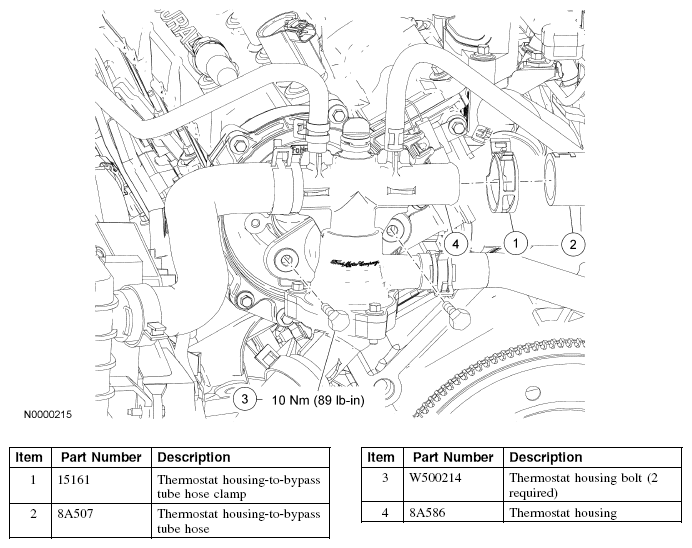

Fig 1: Coolant Pump Replacement Components (1 Of 2) With Torque Specifications
G04656116Courtesy of FORD MOTOR CO.

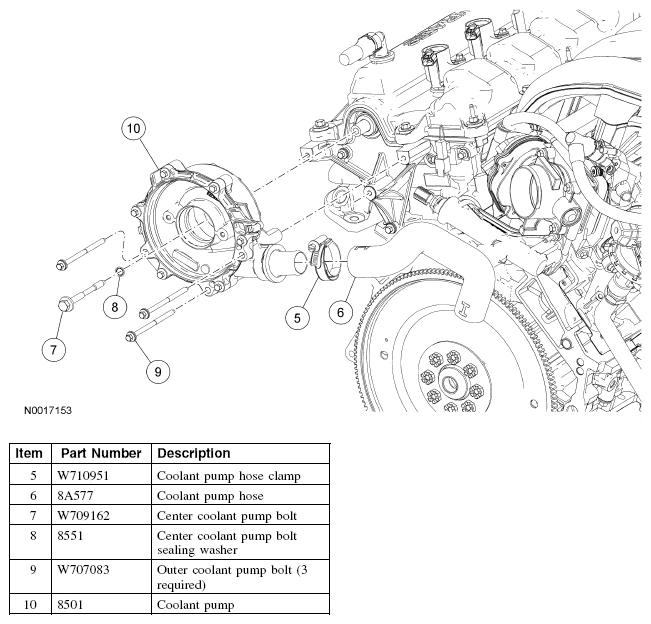

Fig 2: Identifying Coolant Pump Components (2 Of 2)
G04656117Courtesy of FORD MOTOR CO.
