Side Impact Sensor: Removal

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: To reduce the risk of personal injury, do not use any memory saver devices.
WARNING: Vehicle sensor orientation is critical for correct system operation. If a vehicle equipped with an air bag supplemental restraint system (SRS) is involved in a collision, inspect the sensor mounting bracket and wiring pigtail for deformation. Replace and correctly position the sensor or any other damaged supplemental restraint system (SRS) components whether or not the air bag is deployed.
NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
NOTE: LH shown, RH similar.
  1. Depower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING  in the General Procedures portion of this article.
  2. Remove the front door scuff plate.
  3. Remove the rear door scuff plate.
  4. Release the front and rear door B-pillar weatherstripping.
  5. Pull out to release the retaining clips and remove the lower B-pillar trim panel.
    6. NOTE: The side impact sensor bolts must be removed in the sequence shown.
  6. Remove the side impact sensor with bracket.
    1. Disconnect the electrical connector.
    2. Remove the bolt.
    3. Remove the bolt.
    4. Remove the side impact sensor with bracket.

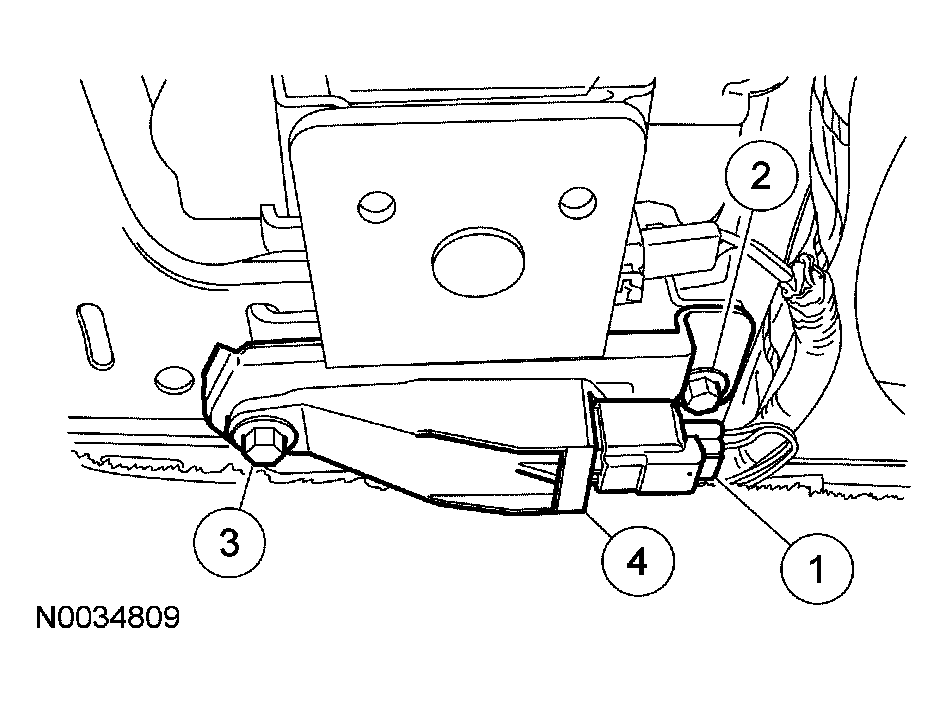

      Fig 1: Removing Side Impact Sensor With Bracket
      G04586514Courtesy of FORD MOTOR CO.
