Removal And Installation: Clockspring: Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

    Vehicles receiving a new clockspring

    NOTE: A new clockspring is supplied in a centralized position and held there with a key.
    WARNING: Incorrect centralization may result in premature component failure. If in doubt when centralizing the clockspring, repeat the centralizing procedure. Failure to follow this instruction may result in personal injury.
    CAUTION: Make sure the road wheels are in the straight-ahead position.
    NOTE: If a clockspring has rotated out of center, follow through with these steps.
  1. Remove the key from the clockspring, holding the rotor in its centralized position.
    • Do not allow the clockspring rotor to turn.

    2. Vehicles needing clockspring recentering

    CAUTION: Overturning will destroy the clockspring. The internal ribbon wire acts as the stop and can be broken from its internal connection.
  2. Turn the rotor counterclockwise until it stops.
    • While turning the rotor counterclockwise, carefully feel for the ribbon wire to run out of length. Stop turning when a slight resistance is felt.

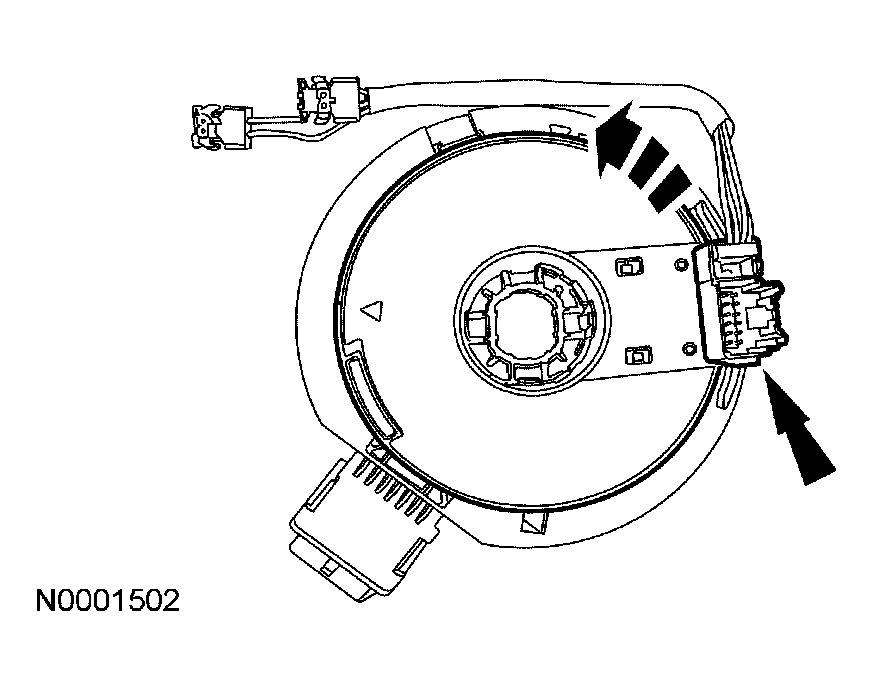

      Fig 1: Turning Rotor Counterclockwise
      G04586556Courtesy of FORD MOTOR CO.
  3. Turn the rotor clockwise and stop when the arrows line up.

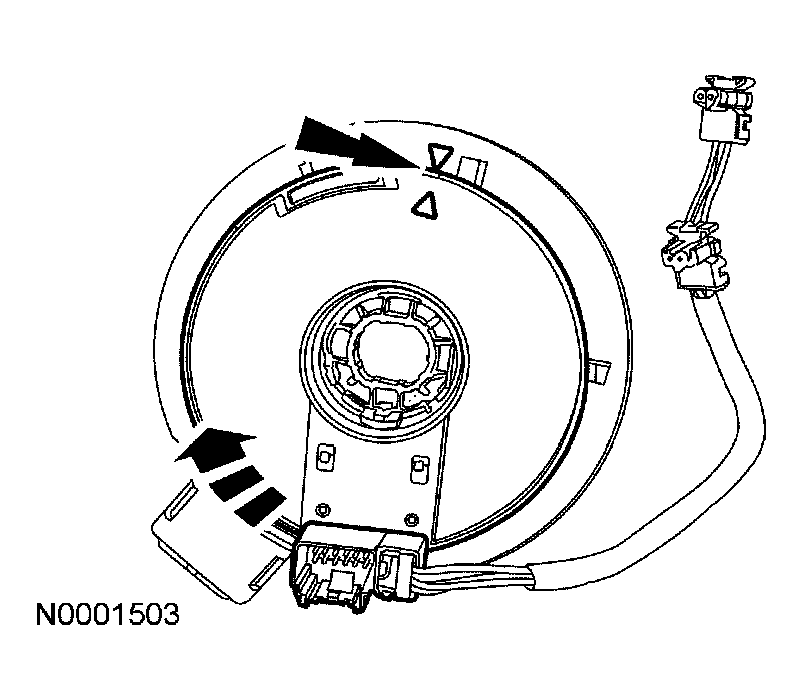

    Fig 2: Turning Rotor Clockwise
    G04586557Courtesy of FORD MOTOR CO.
  4. Turn the rotor clockwise 2 complete turns and stop when the arrows line up. This is the center point of the clockspring.
    • Do not allow the rotor to turn from this position.
      Fig 3: Turning Rotor Clockwise
      G04586558Courtesy of FORD MOTOR CO.

    5. Vehicle repairs reusing the same clockspring

    NOTE: When the tape is removed, do not allow the clockspring to turn.
  5. Remove the tape applied during clockspring removal.

    6. All vehicles

    NOTE: Slight turning of the clockspring rotor is allowable for alignment purposes to the steering column.

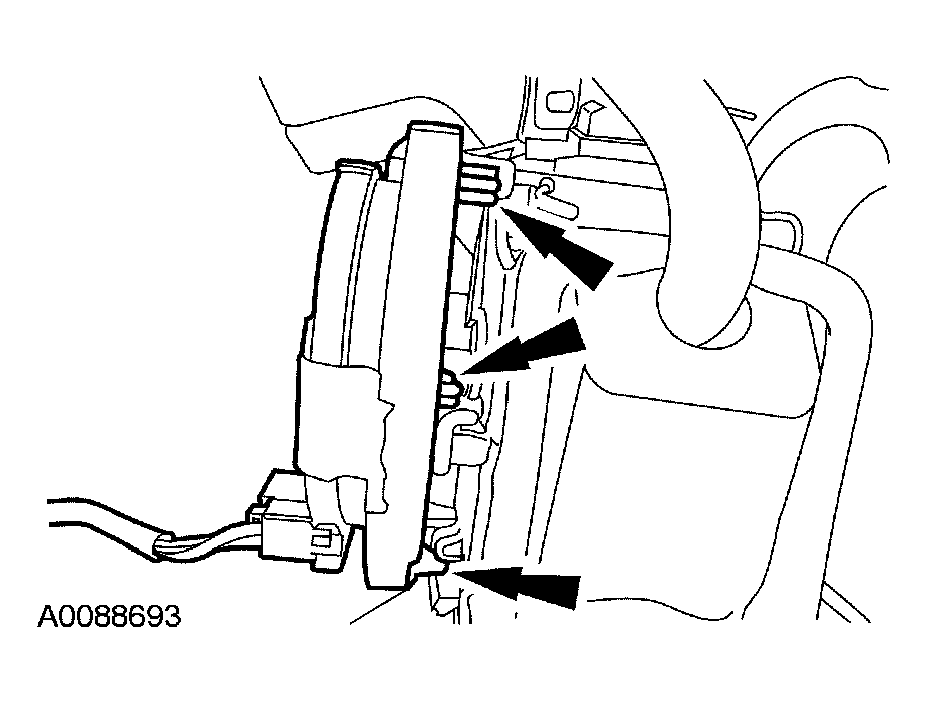

    Fig 4: Releasing Clockspring Retaining Clips
    G04586559Courtesy of FORD MOTOR CO.
  6. With the flats of the clockspring aligned to the flats of the steering column, slide the clockspring onto the steering column engaging the retaining tabs.
  7. Connect the clockspring electrical connector.
  8. Position the upper steering column shroud.
    • If equipped, engage the column shift lever boot to the upper steering column shroud.
  9. Position and engage the lower steering column shroud to the column shift lever boot and upper steering column shroud and install the three screws
  10. Install the tilt column lever.
  11. Install the steering wheel. For additional information, refer to STEERING COLUMN .
  12. Install the driver air bag module. For additional information, refer to DRIVER AIR BAG MODULE .
  13. Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING  in the General Procedures portion of this article.
