1-2 Accumulator: Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Install the 1-2 accumulator.
1. Install the 1-2 accumulator upper spring
2. Install the accumulator piston.
3. Install the inner and outer lower 1-2 accumulator spring.
4. Install the cover and seal assembly.

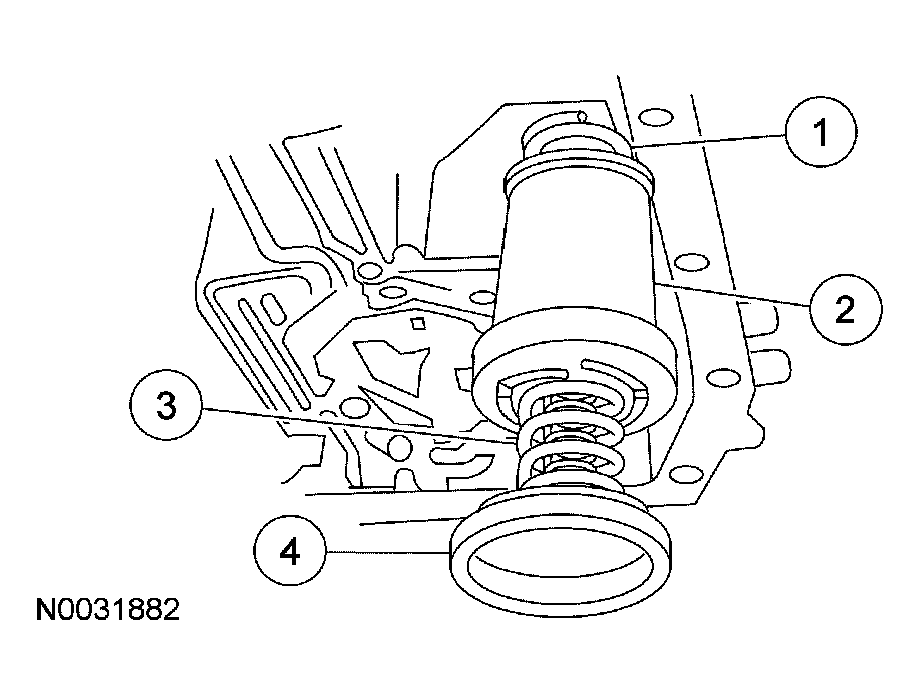

  Fig 1: Installing Inner And Outer Lower 1-2 Accumulator Spring
  Courtesy of FORD MOTOR CO.
Compress the accumulator and install the accumulator piston retaining ring.

Fig 2: Locating Accumulator Piston Retaining Ring
Courtesy of FORD MOTOR CO.
Install the transmission fluid pan and filter. For additional information, refer to FLUID PAN, GASKET AND FILTER .

WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .

If equipped with fire suppression system, repower the system.
