Camshaft Roller Follower: Removal

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the valve covers. For additional information, refer to VALVE COVER - RH  or VALVE COVER - LH .
  3. Position the piston of the cylinder being repaired at the bottom of the stroke.
  4. Install the special tool between the valve spring coils to prevent valve stem seal damage.
    Fig 1: Installing Special Tool Between Valve Spring Coils
    G03962476Courtesy of FORD MOTOR CO.
  5. Use the special tool to compress the valve springs and remove the cam roller followers.

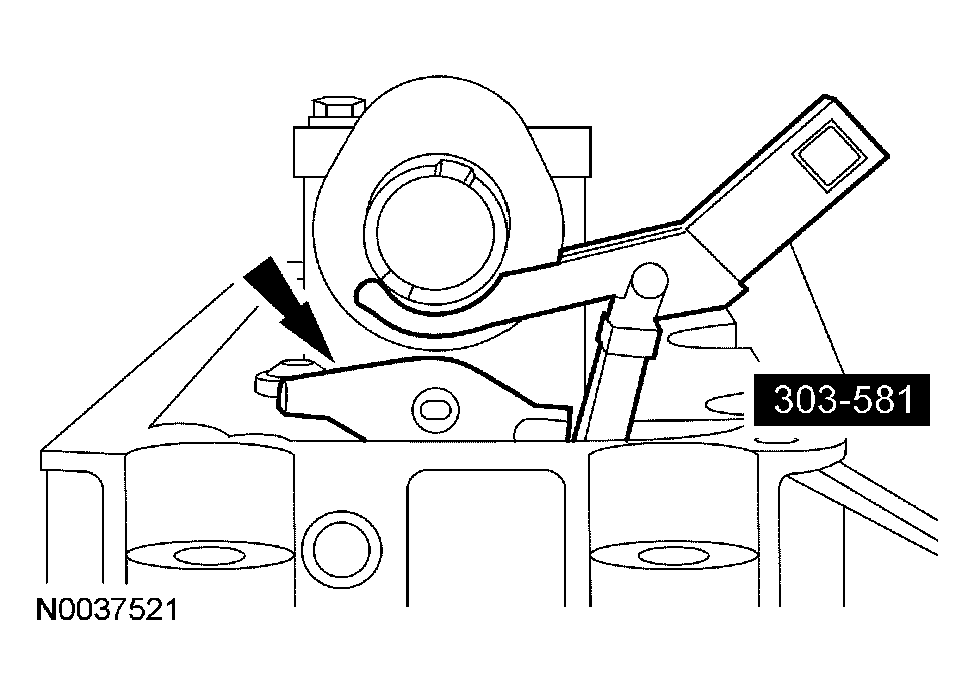

    Fig 2: Removing Cam Roller
    G04583504Courtesy of FORD MOTOR CO.
