Thermostatic Expansion Valve: Notes

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

MATERIALS

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

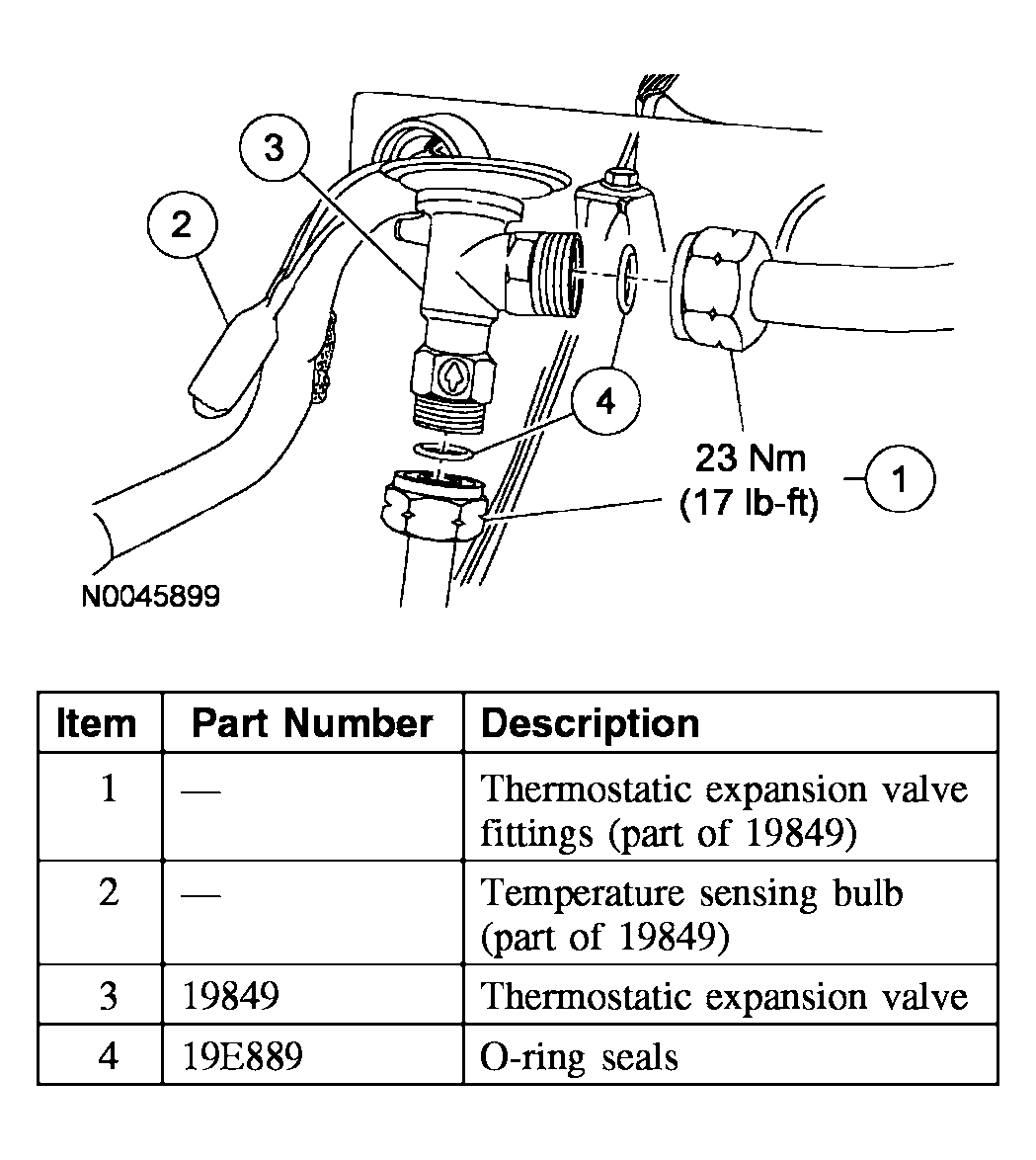

Fig 1: Identifying Thermostatic Expansion Valve

Courtesy of FORD MOTOR CO.
