Component Locations
WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

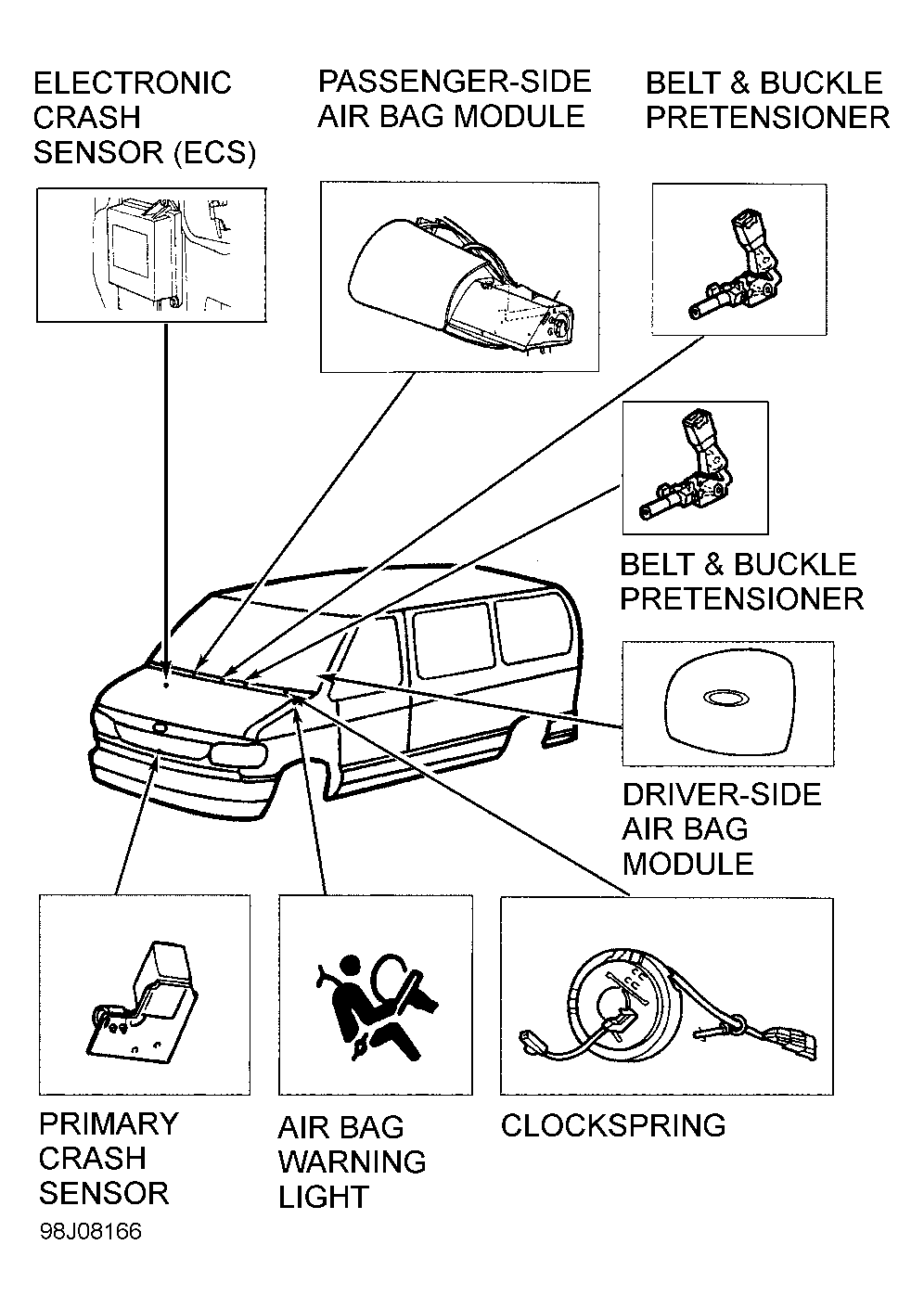

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1)Location | ||
|---|---|---|---|
| Clockspring | Steering column, below steering wheel | ||
| Driver-side air bag module | Front of steering wheel | ||
| Electronic crash sensor | Behind right cowl side kick panel | ||
| Passenger-side air bag module | Right side of instrument panel, above glove box | ||
| Primary crash sensor | Center radiator support behind grille | ||
| Belt & buckle pretensioners | Driver & passenger seat belt buckle assembly | ||
|
|||
