Component Locations
WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

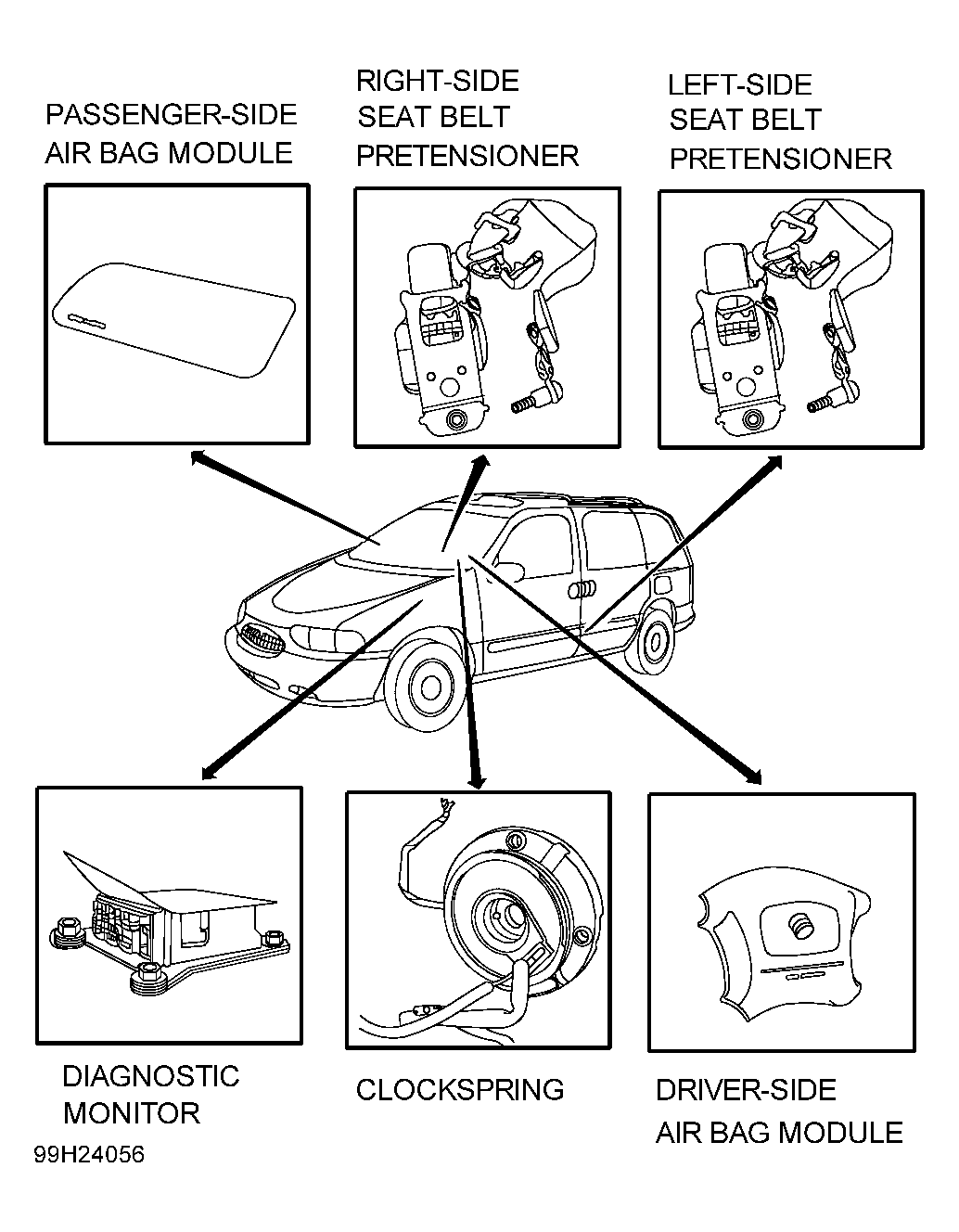

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1)Location | ||
|---|---|---|---|
| Clockspring | On steering column, behind steering wheel | ||
| Diagnostic monitor | On tunnel, under center of instrument panel | ||
| Driver-side air bag module | Center of steering wheel | ||
| Passenger-side air bag module | Right side of instrument panel, above glove box | ||
| Seat belt pretensioners | Integrated with front seat belt retractors | ||
|
|||
