Belt Adjustment: Notes
WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 1999 Mercury Tracer, 1999 Mercury Sable, 1999 Mercury Mystique, 1999 Mercury Grand Marquis, and 1999 Mercury Cougar. However, it is still accessible from the selected car via links, so may be relevant.

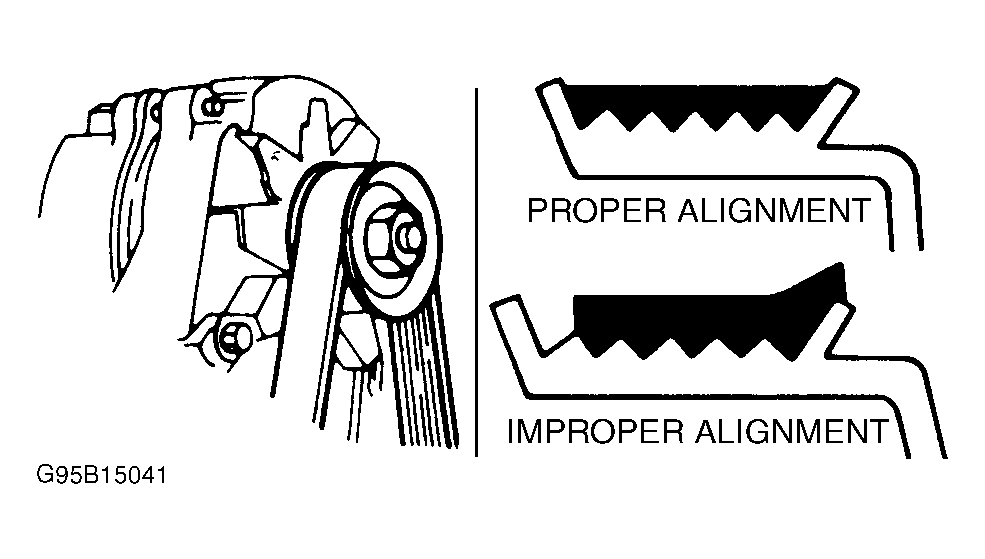

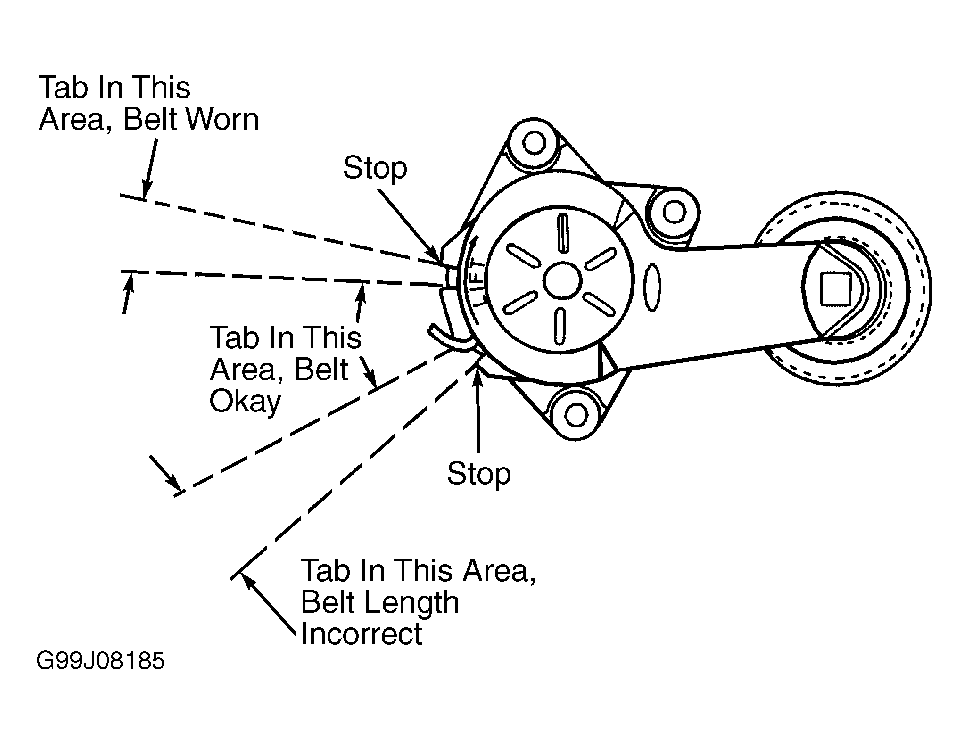

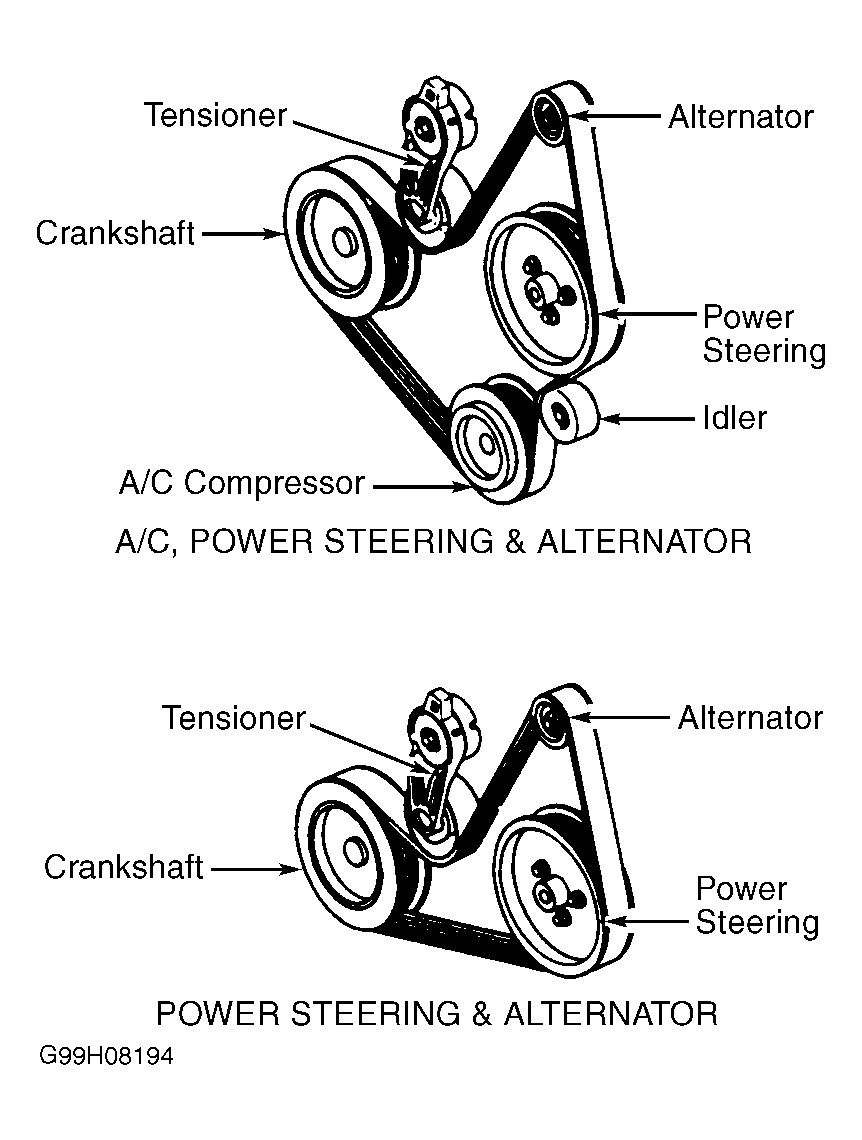

Tensioners are used to automatically adjust belt tension to specification. Belt tension should be about 178-311 INCH Lbs. (78-137 kg). Check belt for fraying. If fraying exists, ensure belt and tensioner are properly aligned. See Fig 1. Tensioners will contain a belt-wear indicator. SeeFig 1-Figure . If tensioner reaches travel limit, as indicated by marks on tensioner, replace belt. Ensure serpentine belts are properly installed. See Figure-Figure .
NOTE:
Models not shown use conventional belts or information is not available from manufacturer. Refer to underhood label for belt routing.
