Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Daytime Running Lights (DRL) Module | In right front of engine compartment, near horns. See Figure. |

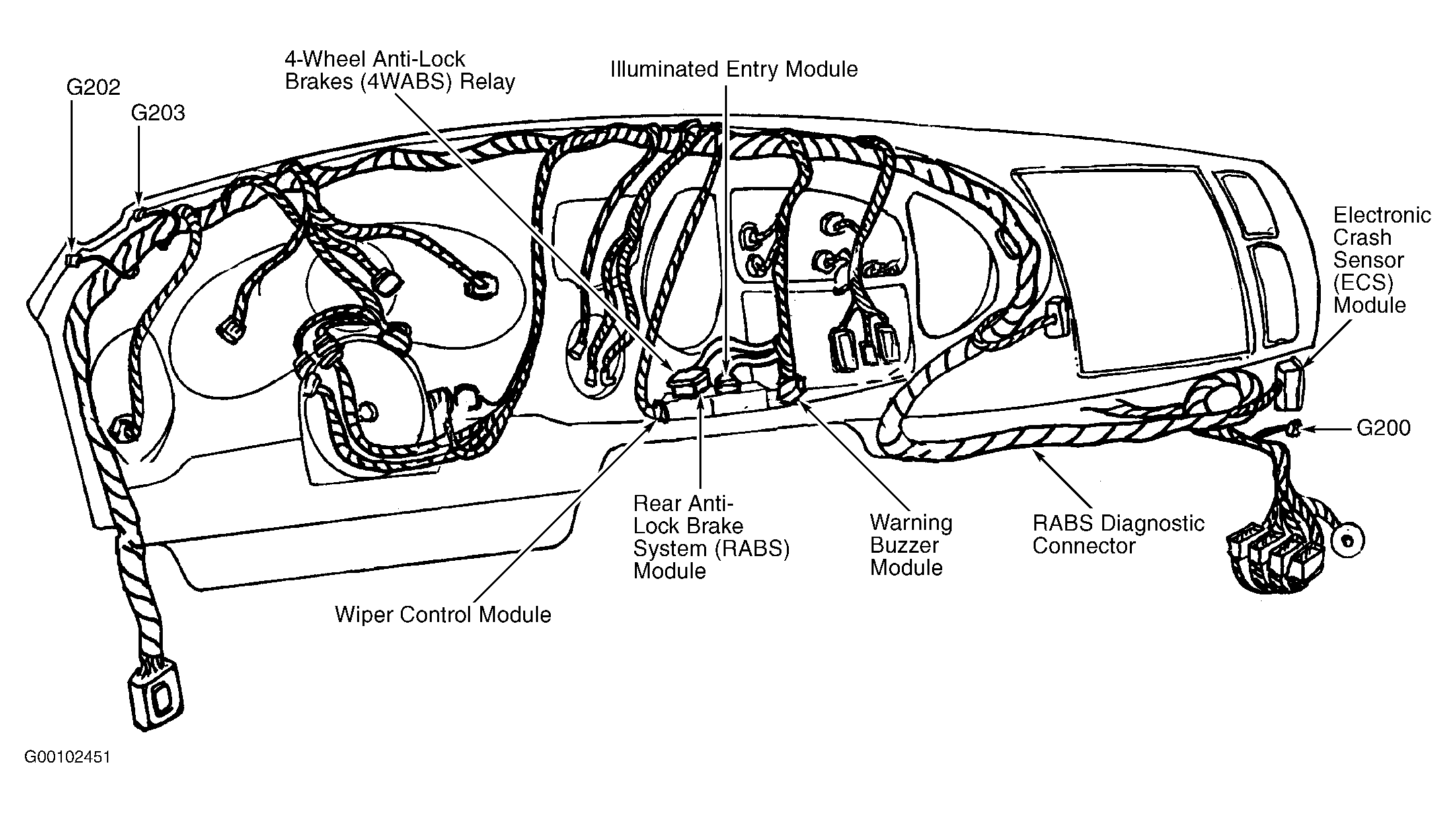

| Electronic Crash Sensor (ECS) Module | Behind right side of dash. See Figure. |
| Fuel Pump Module | Under vehicle, in fuel tank. See Figure. |
| Illuminated Entry Module | Behind center of dash. See Figure. |
| Injector Driver Module (IDM) | Left front side of engine compartment. See Figure. |
| In-Transit Fuel Pump Module | Under vehicle, on left frame rail. |

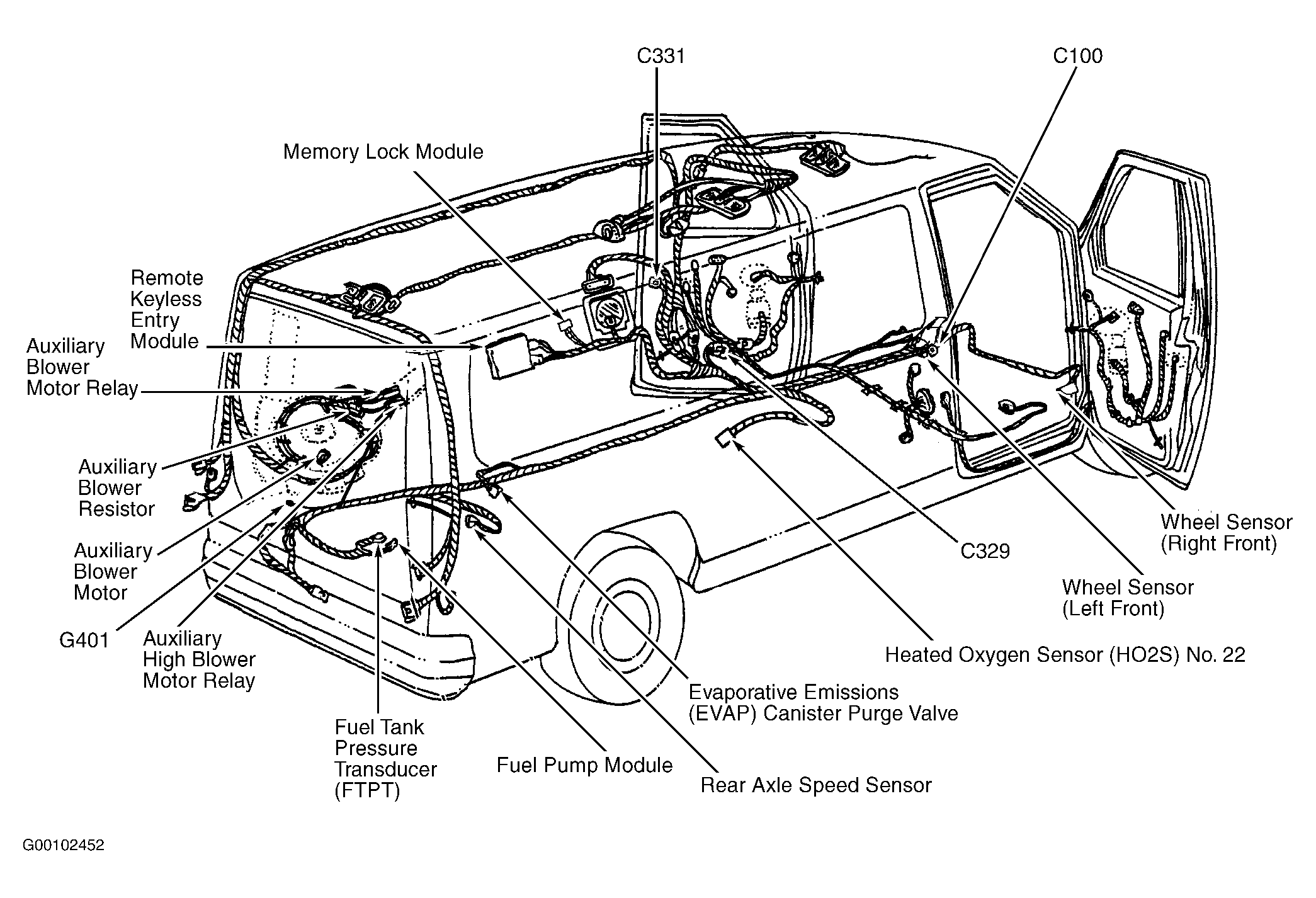

| Memory Lock Module | Behind left "B" pillar. See Figure. |
| NGV Module (NGV) | On left front inner fender panel. See Figure. |
| Powertrain Control Module | In left rear of engine compartment, near brake master cylinder. See Figure. |
| Rear Anti-Lock Brake System (RABS) Module | Behind center of dash. See Figure. |
| Remote Keyless Entry Module | Behind left "B" pillar. See Figure. |
| Warning Buzzer Module | Behind center of dash. See Figure. |
| Wiper Control Module | Behind center of dash. See Figure. |
| 4-Wheel Anti-Lock Brakes (4WABS) Module | On left front frame rail. See Figure. |
