Upper Intake Manifold: Installation
WARNING: This page is about a different variant/trim than selected.

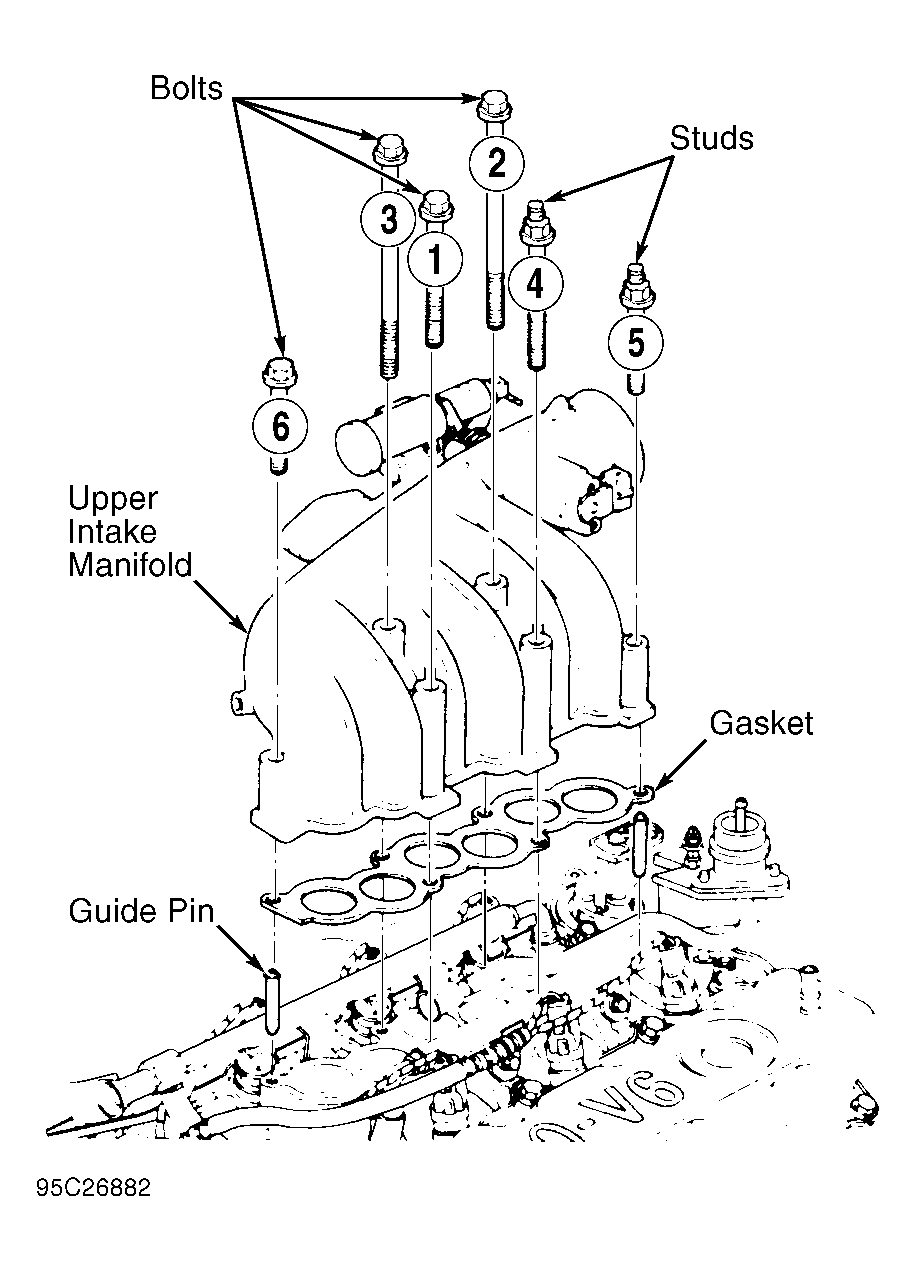

Clean gasket mating surfaces, using caution not to gouge plastic or aluminum parts. Install a NEW gasket. Use guide pins and install upper intake manifold. Tighten bolts in sequence to specification. See Fig 1 . See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.
