Firing Order & Timing Marks

Fig 1: Identifying Firing Order & Timing Marks (4.6L)
G98E01105
Fig 2: Identifying Spark Plug Wire Routing (4.6L - 2-Valve)
G00249474Courtesy of FORD MOTOR CO.

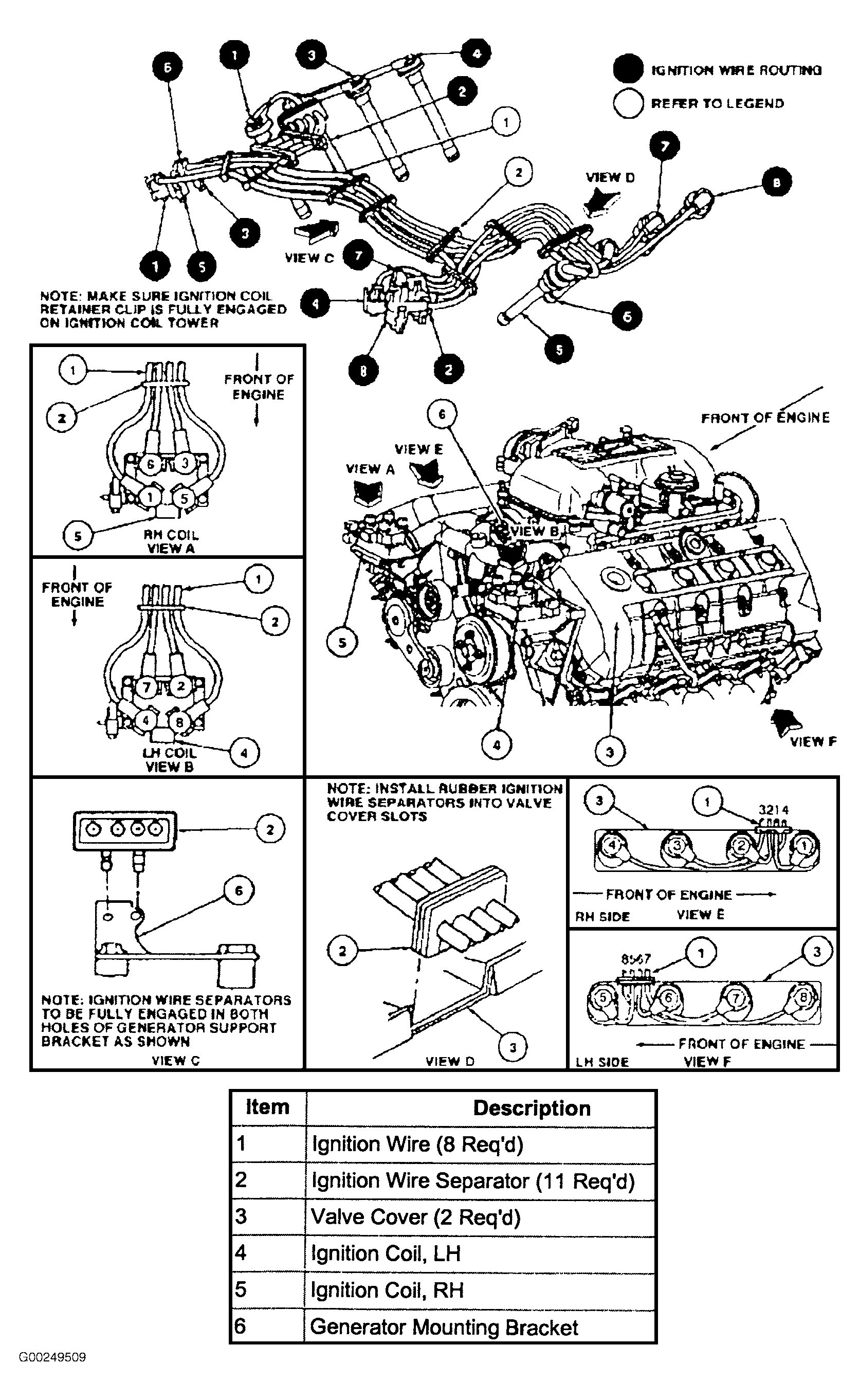

Fig 3: Identifying Spark Plug Wire Routing (4.6L - 4-Valve)
G00249509Courtesy of FORD MOTOR CO.
